Used

USED OKK MCV-1060

Ontario, Canada
287Listings|159Followers
Overview
Vertical Machining Centers

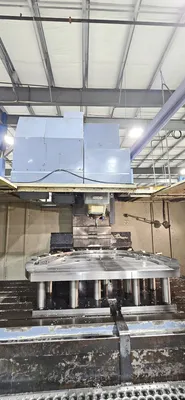

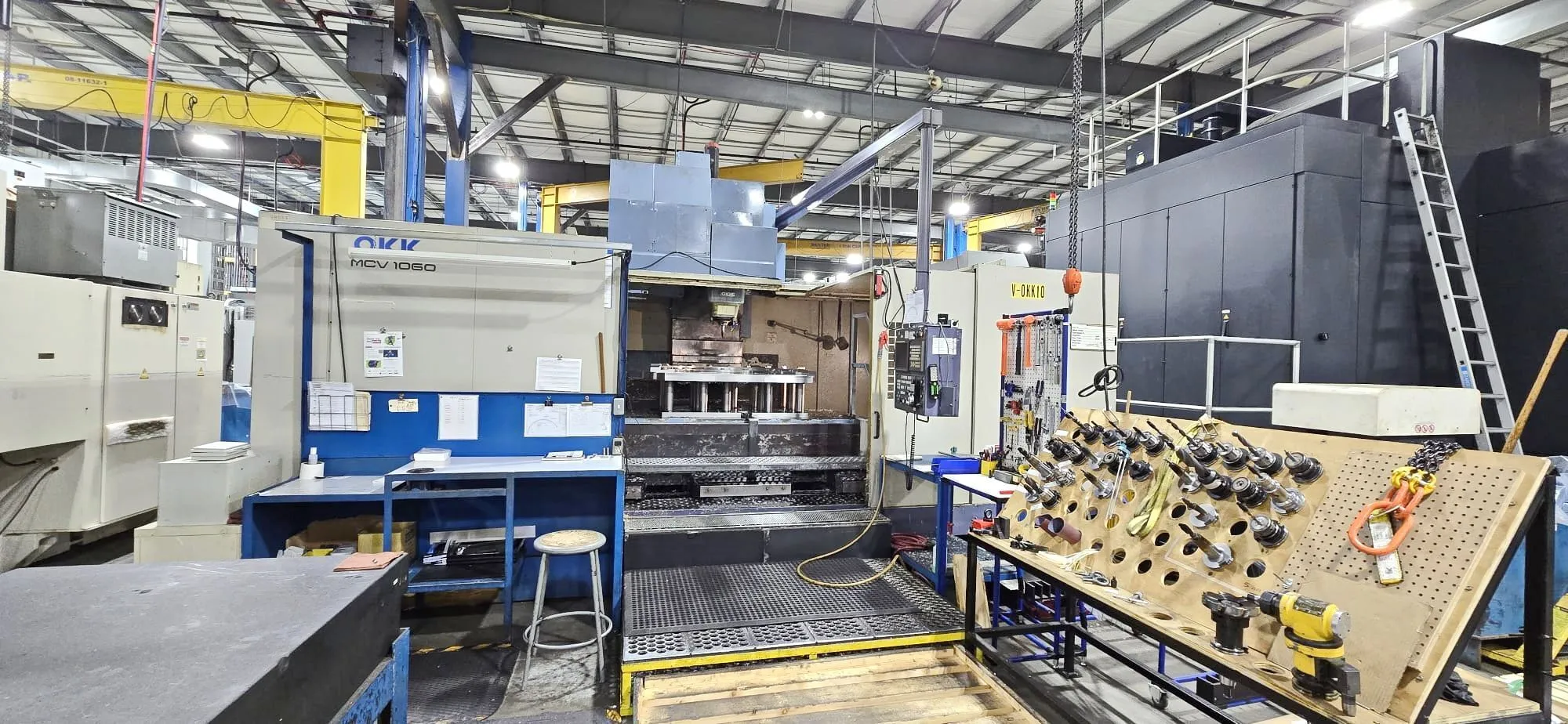

OKK MCV 1060 Vertical CNC Machining Center, 2-Speed Geared Headstock, #50 Taper, Oil Chiller, Coolant System, Full Enclosure, Automatic Lubrication, Operator Platform W/ Access Steps, Remote Manual Pulse Generator

Specs
X-Axis
84.25"
2,139.9 mm
Y-Axis
41.73"
1,059.9 mm
Z-Axis
31.5"
800.1 mm
Power
25 hp
18.6 kW
RPM
4,500 RPM
4,500 RPM
# ATC
40
40
Taper
BT-50
BT-50
Table-W
41.73"
1,059.9 mm
Table-L
98.43"
2,500.1 mm
# Axis
3
3
Max Table Load
11,023 lb
5,000 kg
Distance Spindle Nose to Table
41.34"
1,050 mm
Table Top To Floor
44.49"
1,130 mm
Rapids (X/Y/Z)
472 / 472 / 394 in/min.
472 / 472 / 394 in/min.
Control

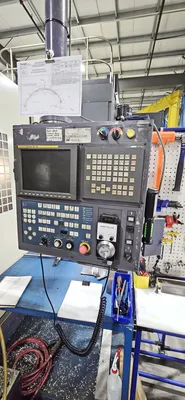

CNC (Fanuc 16I-M)
CNC (Fanuc 16I-M)
Dimensions
231.5" X 192.9" X 157.09"
231.5" X 192.9" X 157.09"
Weight
50,706 lb
50,706 lb
Equipped With

2-speed geared headstock
#50 taper
Oil chiller
Coolant system
Full enclosure
Automatic lubrication

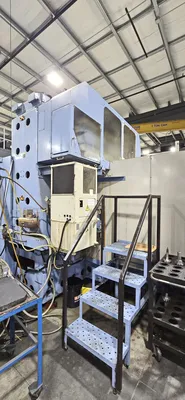

Operator platform w/ access steps
Remote manual pulse generator
