USED REXROTH 0 608 800 608

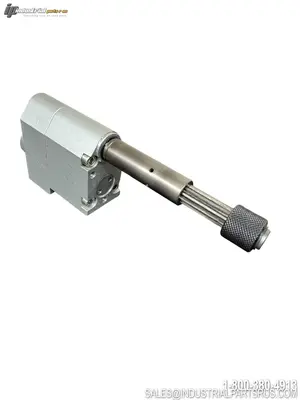

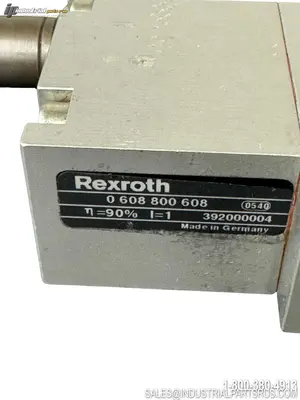

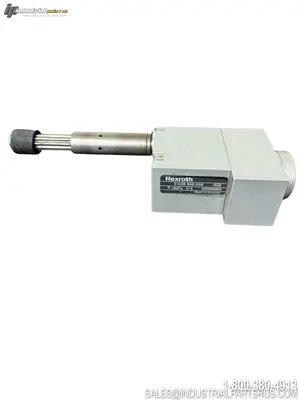

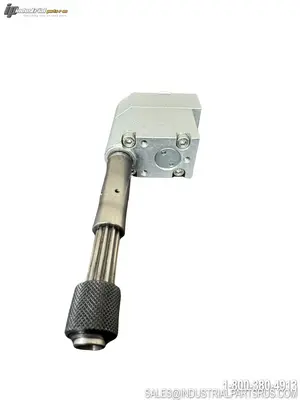

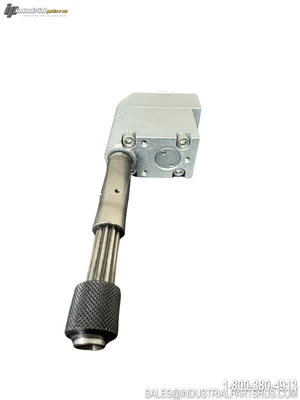

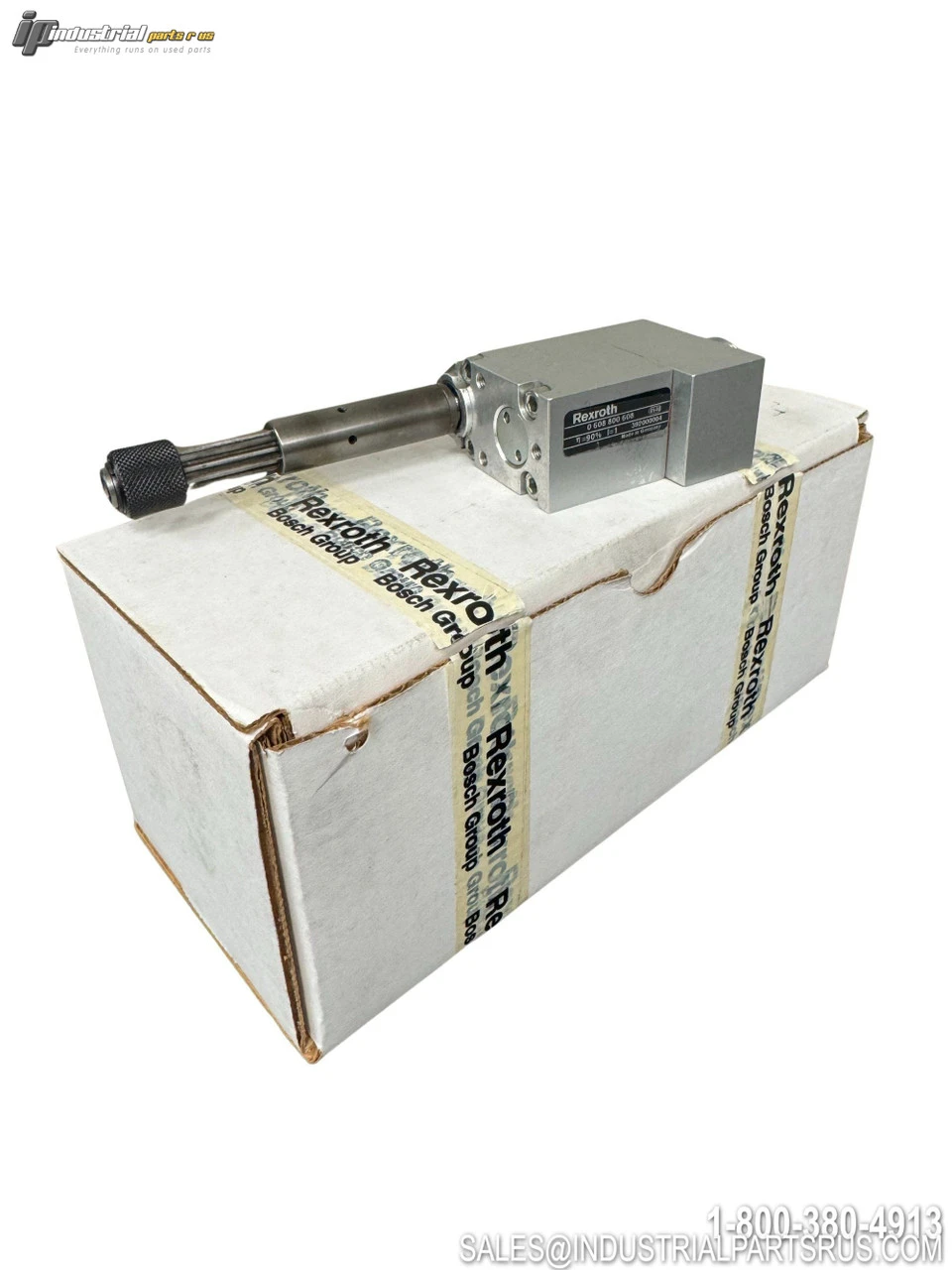

The Bosch Rexroth 0 608 800 608 is a Size 2 Tightening Spindle Bearing (Code: 2VNB82) designed for use in Rexroth's modular Tightening System 350. It features a 1/4" quick-change chuck interface and is used as the output/tool-mounting stage in automated nutrunner and assembly tightening spindle configurations. This component is part of a configurable spindle system that pairs with EC motors, planetary gearboxes, and measurement transducers for precision torque assembly applications.
Specification
Value
Brand
Rexroth (Bosch Rexroth)
Model / Part Number
0 608 800 608
Product Code
2VNB82
Product Type
Tightening Spindle Bearing – Size 2
System
Rexroth Tightening System 350
Tool Mount / Chuck Type
1/4" Quick-Change Chuck
Max. Torque
10 Nm
Working Range
0.6 – 10 Nm
Range of Spring
20 mm
Spring Force
16 – 34 N
Reduction Ratio
1:1
Average Efficiency
0.9 (90%)
Length A
82 mm
Installation Length
153 mm
Weight
0.6 kg
Spindle Size Class
Size 2
Application
Automated Assembly / Nutrunner Tightening Spindle
We warranty all items for 30 days from date of purchase.
