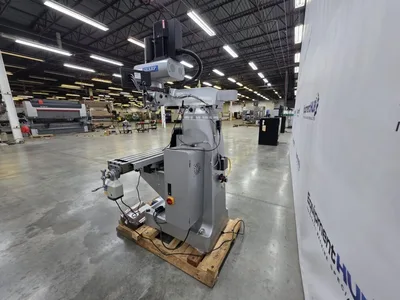

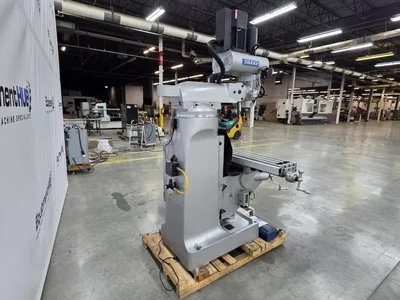

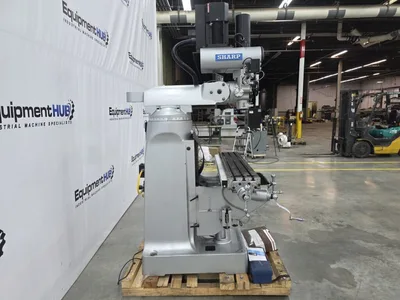

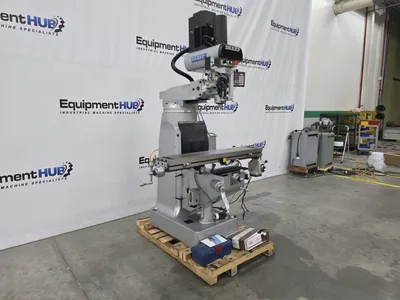

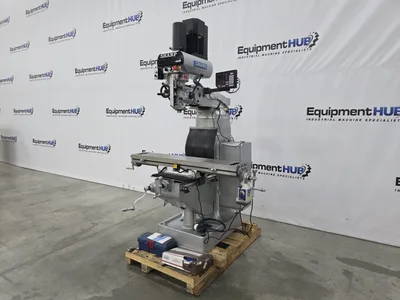

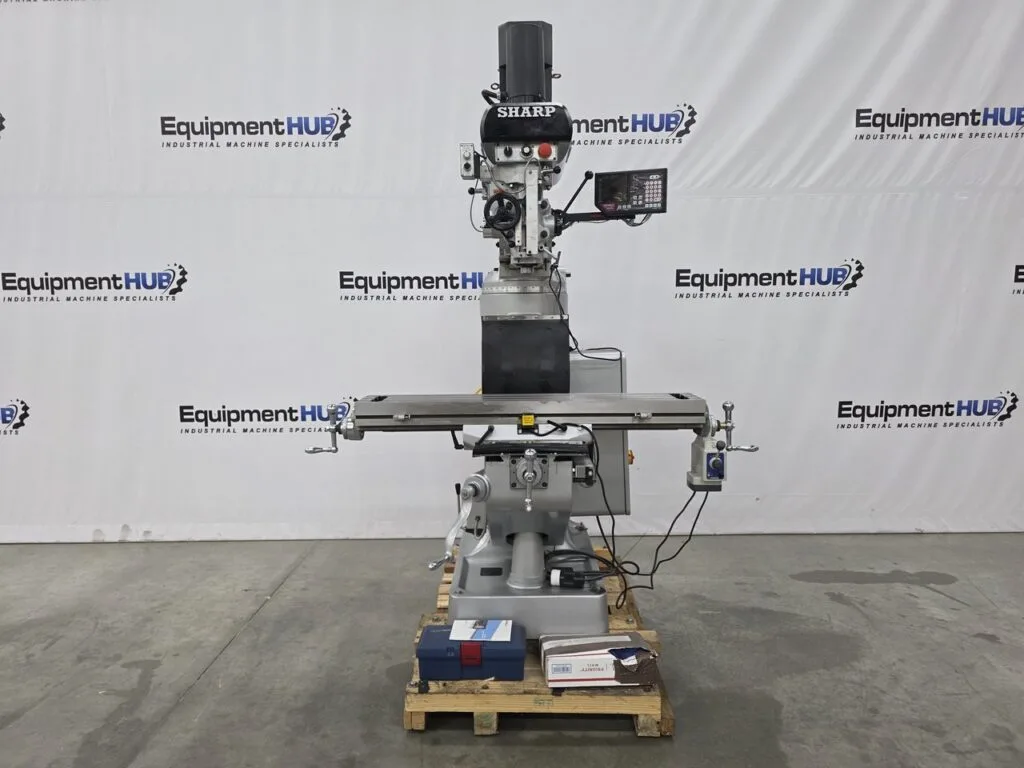

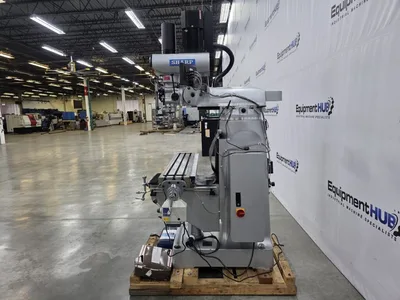

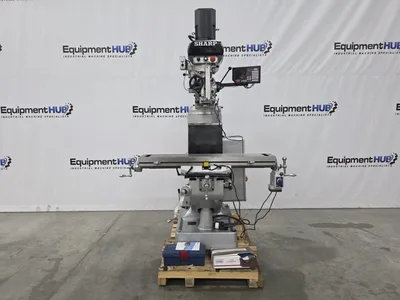

USED 2025 SHARP LMV-49-SMD
Overview
This machine has not been used in any production. Has been a demo machine in our new equipment showroom. Can be demoed upon request.
Specs

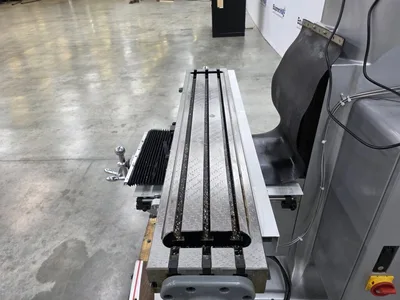

Table Size: 9 x 49 in. / 228.6 x 1,244.6 mm
Longitudinal Travel (X): 36.6 in. / 929.64 mm
Cross Travel (Y): 12 in. / 304.8 mm
Vertical Quill Travel (Z): 5 in. / 127 mm
Knee Travel: 16 in. / 406.4 mm
Ram Travel: 12 in. / 304.8 mm
Spindle Nose To Table: 2.125 – 18 in. / 53.975 – 457.2 mm
Spindle Speeds: 65 – 4500 rpm
No. Of Spindle Speeds: Variable (Digital)
Spindle Nose: R-8
Quill Diameter: 3.375 in. / 85.7 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: R-8
Quill Feeds (3 Speeds): 0.0015, 0.003, 0.006 in./rev

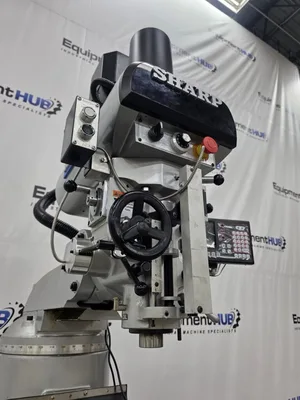

Head Swivel: 360°
Head Tilt (Left/Right): 45°
Head Tilt (Up/Down): 45°

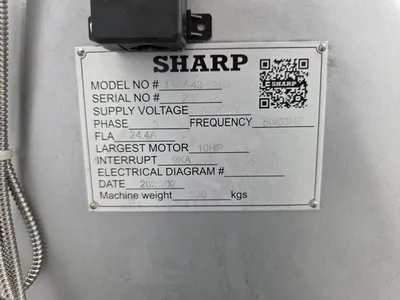

Spindle Motor: 11 HP / 8.2 KW
Voltage: 220V/440V
Phase: 3 phase
Equipped With

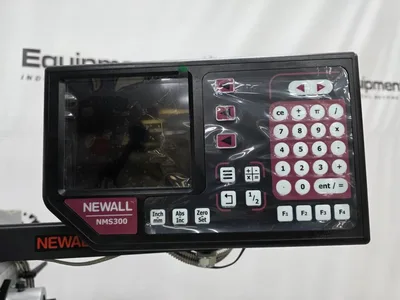

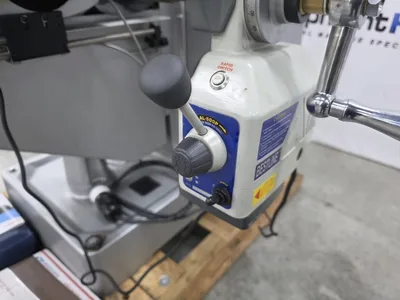

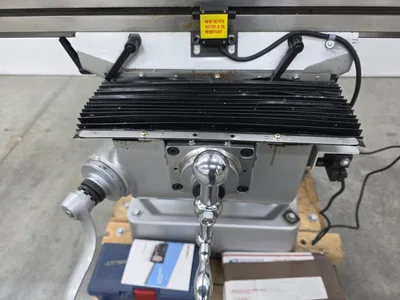

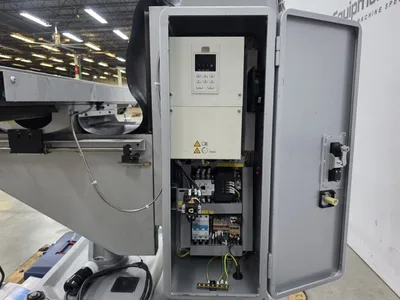

Standard Accessories: Servo Motor Drive, Digital Variable Speed Spindle, Load Meter For Real-Time Spindle Power Monitoring, Power Draw Bar, Meehanite Casting, Front & Rear Way Covers, One Shot Lubrication System, Transformer In Electrical Control Cabinet For 110V Power To DRO Or X, Y, Z-Knee Power Feeds, Hardened & Ground Slideways With Turcite-B Coating, Precision Quill With 5 In. Travel, Hard Chrome-Plated, Mounted On High Precision Angular Contact Bearings, Backlash Elimination Through Double-Nut Design, Patented Knuckled Head Design With Six Bolts Fitted Into Circular T-Slots, Precision Thrust Bearings At Table End To Eliminate End Play, Digital Display For Spindle Speed
