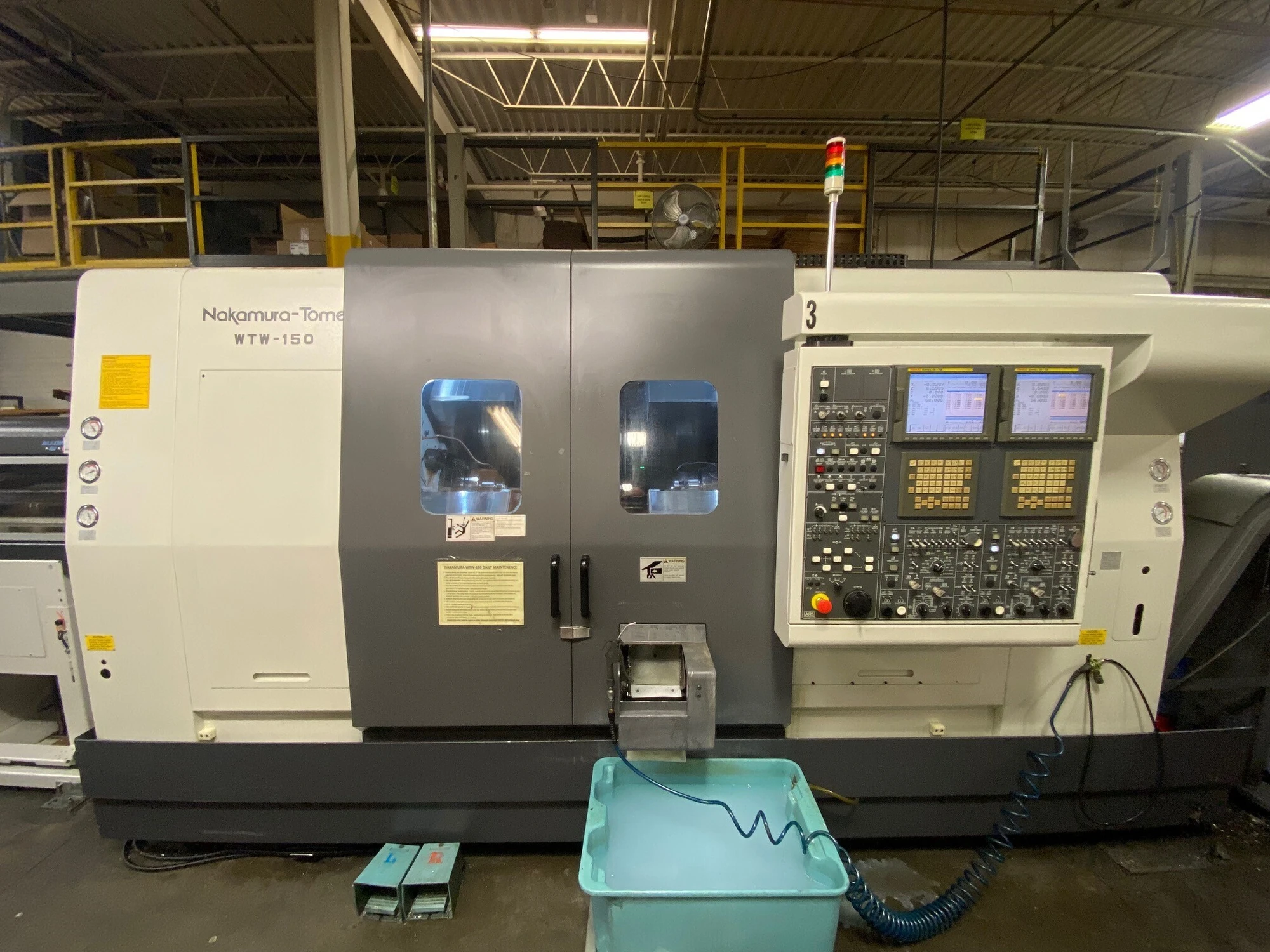

USED 2004 NAKAMURA-TOME WTW-150MMYY
Overview
2004 Nakamura-Tome WTW-150MMYY - with Fanuc 18i-TB Dual Controls, (4) Turrets, Live Milling & Y-Axis. LNS Quick Load Servo S3 Barfeed and Tooling Package Included.
Specs
Max. turning diameter/Max. turning length........12.2" / 10"
Distance between spindle nose....................7.67" - 42"
Bar capacity.....................................2
Chuck size.......................................6"
Upper Turret Slide travel X/Z/B2.................8.16"/11.81"/34.44"
Upper Turret Slide travel Y......................8.16"/11.81"
Lower turret Slide travel X/XZ...................2.36"（±30）×2
Spindle Speed....................................5,000 RPM
Spindle Motor....................................20 HP
Number of turrets................................4
Milling Spindle speed............................6,000 RPM
Driven motor power...............................5 HP
Type of turret head/Number of index positions....Dodecagonal / 24
Rotary system/Number of driven-tool stations.....Individual Rotation / 12
Floor space......................................152" x 92" x 92"
Weight...........................................23,500 LBS
Equipped With
Dual Fanuc 18i-TB Controls with (2) CRT Screens and Keypads
Collet Chuck on Main Spindle and 6" 3-Jaw Chuck on Sub-Spindle
2" Bar Capacity both Spindles
4-Turrets
Full "C" Axis Both Spindles
Milling Stations (Two Upper and One Lower Turret)
Parts Catcher – 2" Dia. X 6" Long Capacity
NOTE: for Catching Parts from Right Spindle
Y-Axis – Only for both Upper Turrets L/R: Y Axis Stroke (30mm) +/- 1.18", 1.34 HP Feed Motor
Spindle Air Blow (R) Spindle
Fixed Air Blow L/R
Spindle Speed Override
Polygon Turning, NT Nurse, Rigid Tapping all Standard
Leveling Jig
Tool Holder Package
LNS Quick Load Servo S3 Barfeeder
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
