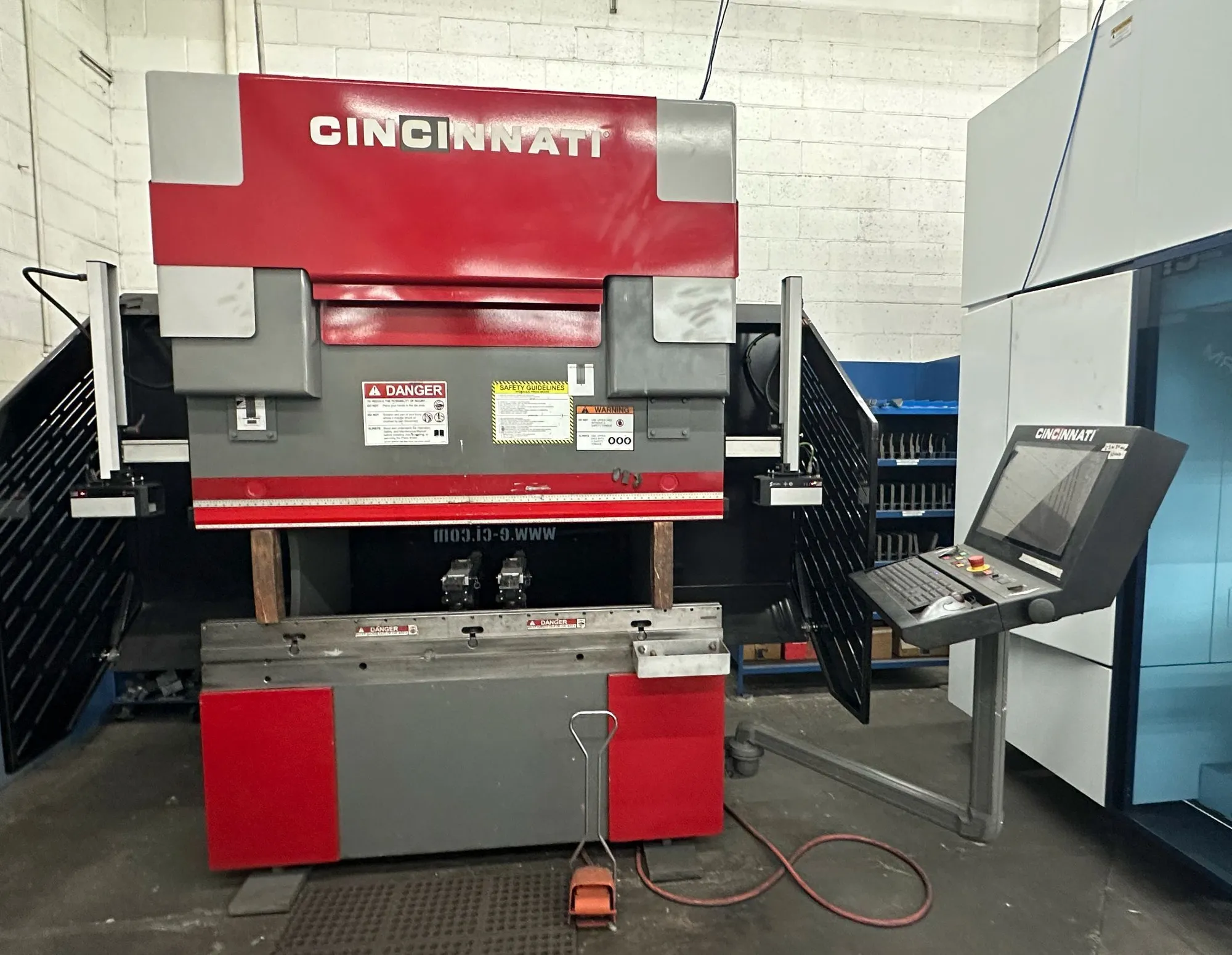

USED 2018 CINCINNATI AUTOFORM 60AF+4
Overview
The compact size of Cincinnati's 60-ton Autoform is the perfect fit for any fabrication shop wanting to move small part production away from large machines. With the addition of the AF60+4 multi-axis press brake to your brake line up, you'll free up larger machines to bend the larger, heavier parts they're best suited to handle. The AF60+4 will also increase your small part production rate with quicker setups, faster ram speeds and user-friendly control functionality.
Don't miss out on the opportunity to add this gorgeous LOW HOUR 2018 Cincinnati Autoform AF60+4 to your manufacturing arsenal!
Specs
MAX TONNAGE: 60
MAX. OVERALL BEND LENGTH: 72"
DISTANCE BETWEEN HOUSINGS: 48"
OPEN HEIGHT: 20"
CLOSED HEIGHT: 9"
STROKE LENGTH: 11"
SPEEDS:
- HIGH APPROACH: 270 IPM
- VARIABLE FORMING: 120 IPM
- RETURN: 290 IPM
RAM REPEATABILITY: (±)0.0004"
NO. OF BACK-GAUGE AXES: 6
APPROX. DIMENSIONS: 112"(L) x 60"(W) x 110"(H)
APPOX. WEIGHT: 16,000 LBS
Equipped With
CINCINNATI GEN 6 CONTROL
PROGRAMMABLE 6-AXIS BACK-GUAGE
INDEPENDANT RAM ENCODERS (Y1-Y2)
LAZERSAFE IRIS SAFETY SYSTEM
FOOT SWITCH
MACHINE HOURS
- POWER ON: 2,677
- MAIN DRIVE ON: 123
- TOTAL CYCLE: 5
STROKES: 2,644
