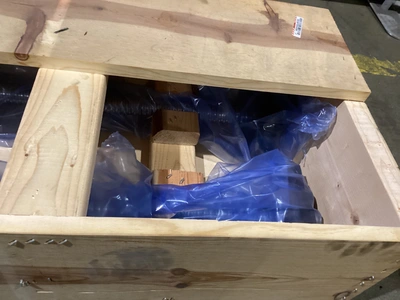

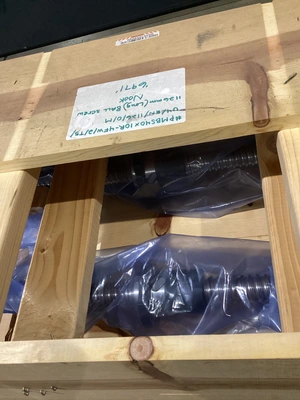

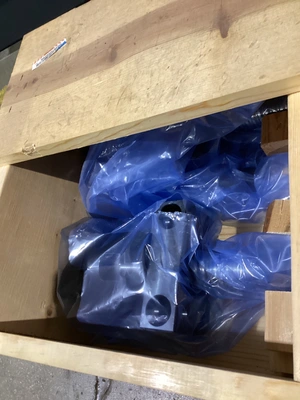

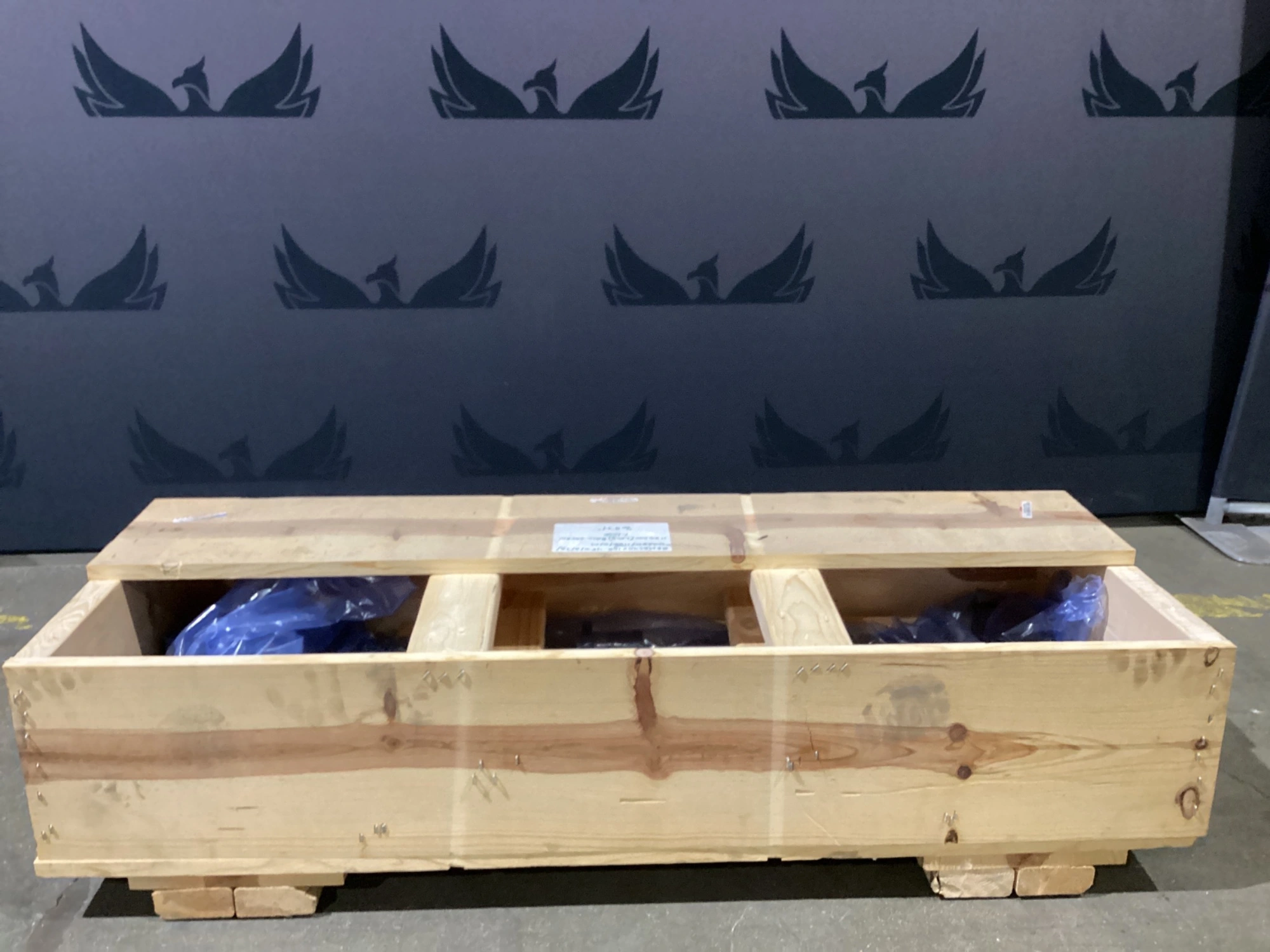

NEW NOOK PMBS40x10R-4FW/2/T5/U4/EN/1126/0/M
Overview
This listing is for a NEW Nook Industries PMBS40x10R-4FW/2/T5/U4/EN/1126/0/M. The precision metric ball screw converts rotary motion into controlled linear travel using a 40 mm nominal diameter, 10 mm lead, right-hand thread, and T5 lead-accuracy grade. The configured flanged ball nut incorporates four active turns, wipers, and 1% to 2% preload for precision linear-motion applications.
Specs
IDENTIFICATION
Manufacturer: Nook Industries / Nook Thomson
Part Number: PMBS40x10R-4FW/2/T5/U4/EN/1126/0/M
Product Family: PMBS
Product Type: Precision Metric Ball Screw
Configuration: Modified
Condition: NEW
YOM: n/a
BALL SCREW
Thread Manufacturing: Precision Rolled
Nominal Diameter: 40 mm
Lead: 10 mm
Thread Direction: Right Hand
ISO Lead Accuracy Grade: T5
T5 Travel Variation: 23 µm / 300 mm
Overall Length: 1126 mm
Screw d0: 42.1 mm
Screw d1: 40.00 mm
Root Diameter d2: 34.81 mm
BALL NUT
Ball Nut Reference: MBN40X10R-4FW
Ball Nut Type: Flanged
Active Turns: 4
Wipers: Yes
Preload: 1% - 2%
Nominal Ball Diameter: 7.144 mm
LOAD / PERFORMANCE
Dynamic Load Rating: 56,770 N
Static Load Rating: 116,070 N
Linear Speed: 16,700 mm/min
CONFIGURATION
First End Configuration: U4
Second End Configuration: EN
Documentation Code: 0
Configuration Type: Modified
STANDARDS
Ball Screw Standard: ISO 3408
Ball Nut Mounting Standard: DIN 69051 Part 5 Type C
