NEW HAFFNER MAC440-30 + TA144
Overview
This listing is for a NEW Haffner MAC440-30 + TA144 Aluminum Profile CNC Machining & Automatic Cutting Cell. This integrated manufacturing cell combines a 4-axis aluminum profile processing center with an automatic aluminum cleat cutting saw, providing automated milling, drilling, cutting, tapping, flow drilling, countersinking, and precision sawing operations for aluminum profile fabrication. Key capabilities include 4-axis CNC machining, automatic tool changing, programmable cutting lists, CNC controls, automated profile handling, and high-speed aluminum processing.
Specs
Manufacturer: Haffner
Models: MAC440-30 + TA144
Cell Type: Aluminum Profile CNC Machining & Automatic Cutting Cell
===========================

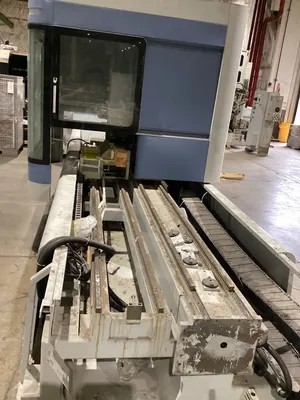

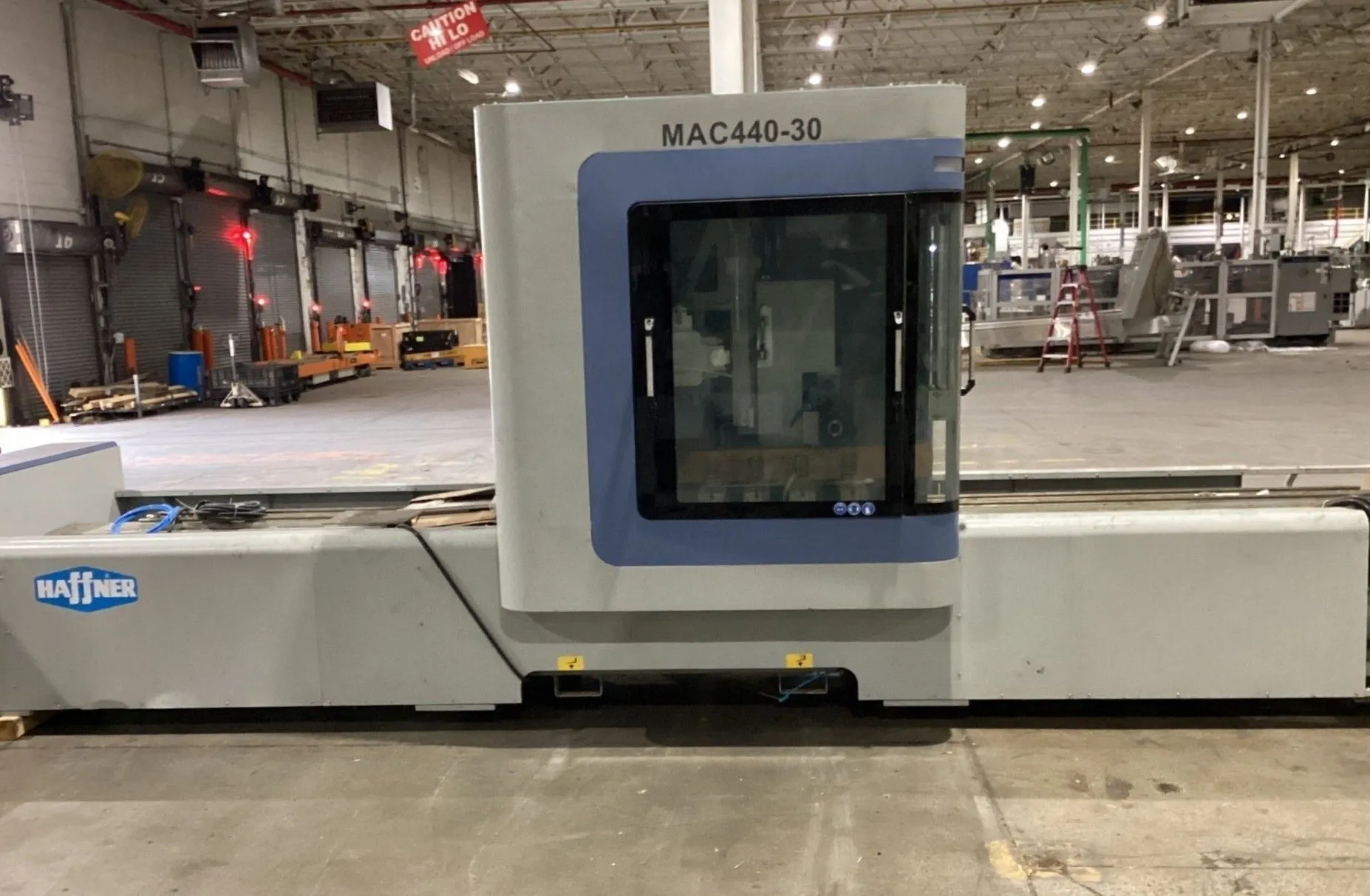

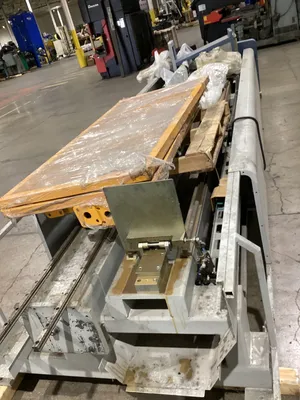

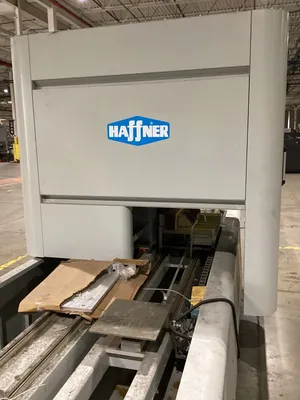

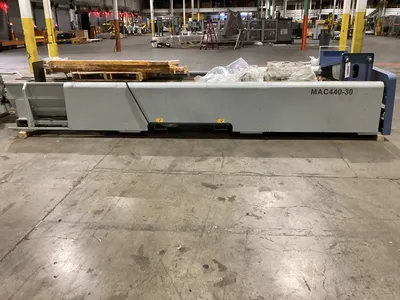

MAC440-30 CNC PROCESSING CENTER
===========================
Product Type: 4-Axis Aluminum Profile Processing Center

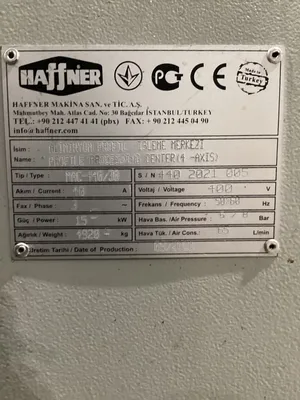

Serial Number: 440 2021 005
Year of Manufacture: 2021-08
Controlled Axes: 4
Machining Operations: Milling, Drilling, Cutting, Tapping
Additional Operations: Flow Drilling, Countersinking
A-Axis Range: -120° to +120°
Maximum Milling Blade: 5.9 in (150 mm)
Max Machinable Length: 161.4 in (4100 mm)
Standard Length: 157.5 in (4000 mm)
X-Axis Travel: 181.1 in (4600 mm)
X-Axis Speed: 120 m/min
Y-Axis Travel: 36.6 in (930 mm)
Y-Axis Speed: 60 m/min
Z-Axis Travel: 24.6 in (625 mm)
Z-Axis Speed: 60 m/min
Spindle Type: Water-Cooled Electro Spindle
Spindle Power: 8 kW
Max Spindle Speed: 24,000 RPM
Tool Interface: HSK F63
Tool Magazine: 6 Position
Tool Change: Automatic
Max Tool Diameter: 5.9 in (150 mm)

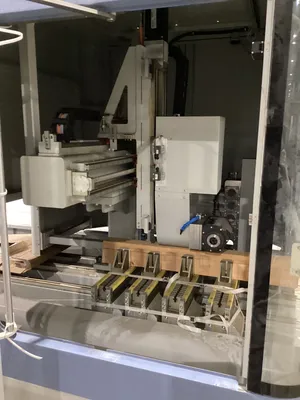

Standard Vices: 4
Vice Positioning: Automatic
Clamp Recognition: Automatic
Clamp Positioning: Automatic
Stop References: 2
Stop Operation: Pneumatic

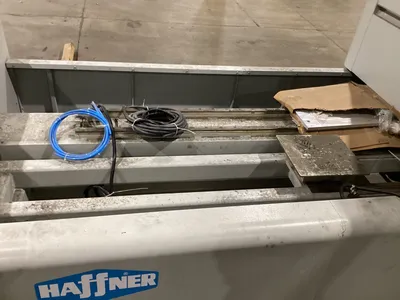

Profile Support Bed: Integrated
Control Type: CNC
Operating System: Windows 10
Display Size: 19 in
Handheld Terminal: Included
CAD/CAM Operation: Supported
Supply Voltage: 400 VAC
Current: 40 A
Phase: 3
Frequency: 50/60 Hz
Machine Power: 15 kW
Air Pressure: 6-8 Bar
Air Consumption: 65 L/min
Spindle Cooling: Water Cooled
Central Lubrication: Included
Machine Configuration: Floor Standing
Machining Area: Fully Enclosed
Dimensions (LxWxH): 244.1 x 70.9 x 90.6 in
Weight: 10,847 lbs
===========================

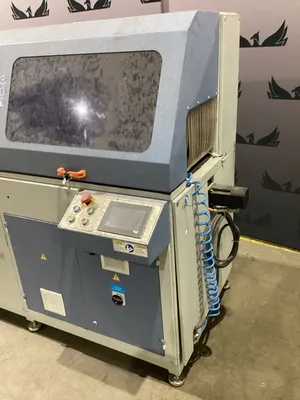

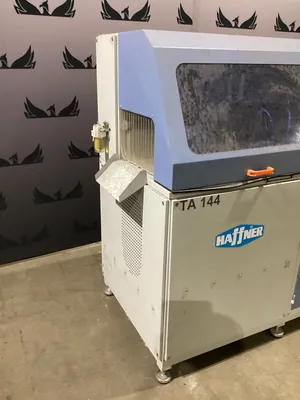

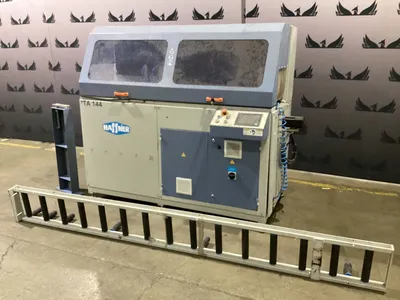

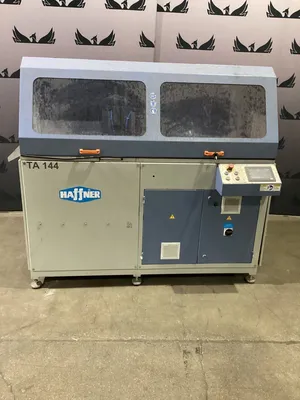

TA144 AUTOMATIC CLEAT CUTTING SAW
===========================
Product Type: Automatic Aluminum Cleat Cutting Saw

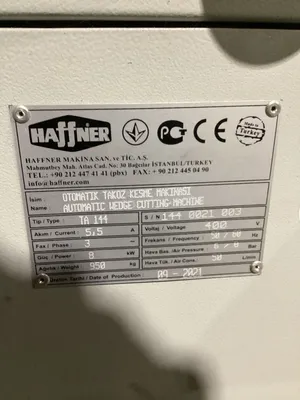

Serial Number: 144 0021 003
Year of Manufacture: 2021-09
Operation: Automatic
Material Application: Aluminum Profiles
Blade Diameter: 23.6 in (600 mm)
Spindle Speed @50Hz: 2,800 RPM
Spindle Speed @60Hz: 3,360 RPM
Maximum Profile Height: 7.9 in (200 mm)
Minimum Profile Width: 7.9 in (200 mm)
Feed Length Range: 0.2 - 27.6 in (5 - 700 mm)
Profile Feed: Automatic
Profile Clamping: Pneumatic
Horizontal Clamping: Included
Vertical Clamping: Included
Infeed Roller Conveyor: 9.8 ft (3 m)
Control System: CNC
Operator Interface: Industrial PLC Panel
USB Interface: Included
Network Interface: Included
Saw Cooling: Automatic Spray

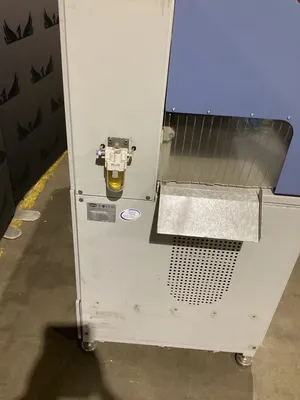

Blade Lubrication: Pulse Spray Mist
Supply Voltage: 400 VAC
Current: 5.5 A
Phase: 3
Frequency: 50/60 Hz
Power: 8 kW
Air Pressure: 6-8 Bar
Air Consumption: 50 L/min
Machine Configuration: Floor Standing
Cutting Area: Enclosed
Viewing Windows: Included
Leveling Feet: Included
Roller Support: Included
Dimensions (LxWxH): 78.7 x 43.3 x 66.9 in
Weight: 2,094 lbs
