NEW BODOR K3

Louisiana, United States
215Listings|82Followers
Overview
Laser Cutters

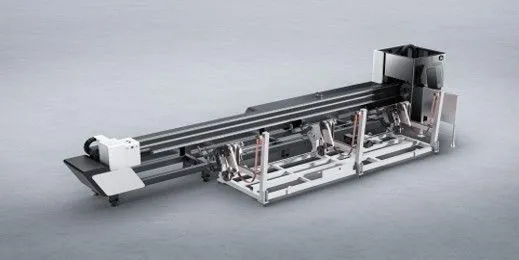

BODOR K3 Laser Cutter, new condition, with 1000W power. Offering precise cutting capabilities with a large working area. Elevate your precision tasks with this professional-grade equipment.
****Lead time for K3 6 kW: 30 Days*****
Tube cross-sectional shapes: Round, square, rectangular, oval, rounded rectangular, angle steel, channel steel, and other tubes
Tube size range
Round tube: Φ0.98-Φ14.01 in
Square tube: Φ0.98-Φ14.01 in
Rectangular tube:
14.01 in ≥ side length ≥ 0.98 in
Maximum machinable tube length: 30 ft

Specs
Length
50.98'
15,540 mm
Width
7.66'
2,335.1 mm
Height
9.35'
2,849.9 mm
Cutting area X
236.22"
6 m
Cutting area Y
14.173"
0.4 m
Cutting area Z
13.78"
0.4 m
Max. simultaneous positioning speed
2,362.2"
60,000 mm
Bilateral repeatability of positioning of one axis R (ISO 230-2:2014)
0.001181 in
Averaged, bilateral position deviation of one axis M (ISO 230-2:2014)
0.002"
0.05 mm
Max. workpiece weight
1102.31 lb
Machine weight
15432.4 lb
Power
1000 w
Control
CNC
CNC
Dimensions
50.984 x 7.661 x 9.350 ft
50.984 x 7.661 x 9.350 ft
Weight
15432.36 lb
15432.36 lb

K3 Laser Power Price
"K3 30ft tube laser
BodorThinker Control system. BodorPower Laser source. BodorGenius Laser head." 12kw
K-Loader 1 Set Included
Dust Collector 1 Set Included
Air compressor 1 Set Included
One year onsite service 1 Set Included
Freight&Tariff Included
Installation & Training Cost Included
Payment Terms "30% down payment required to initiate production.
60% before shipping.
10% due within 7 days after installation and training is completed.
Warranty: 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.
