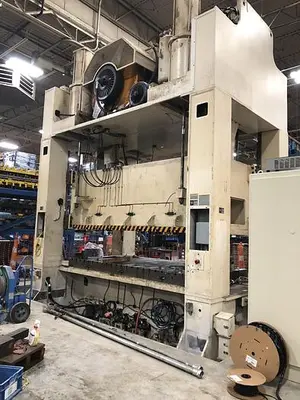

USED AIDA NST-S2-4000(1) 365-180

The AIDA NST-S2-4000(1) 365-180 is a used straight side mechanical press with robust features suited for industrial applications. It operates with a 2-point press system and a single gear reduction, providing a significant capacity of 440 US tons. The press features a stroke length of 15.74 inches and operates at 20 to 50 strokes per minute, offering flexibility for various production rates. The unit comes with a powered slide adjustment of 11.81 inches.

This model includes a spacious working area, with both the bolster and slide measuring 143.75 inches in length and 70 inches in width. It supports a maximum die height of 31.50 inches, making it versatile for a variety of stamping projects. The press operates at a voltage of 460, with an air supply requirement of 80 PSI. Enhanced operational stability is achieved through UNISORB isolation mounts.

In addition, the press is equipped with a Wintriss control that was upgraded in 2019, ensuring modern functionality and efficiency. With 76-inch feed windows and standing at a height of 260 inches, this machine accommodates large-scale production needs. This model is ideal for businesses requiring a reliable and powerful pressing solution.
