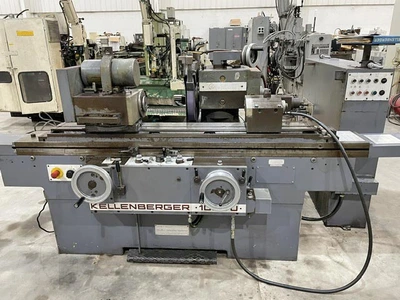

KELLENBERGER MODEL 1000U UNIVERSAL CYLINDRICAL GRINDER

Stock number: ET-5704
(1) Used Kellenberger Model 1000U Universal Cylindrical Grinder
Serial number: 32.465.2763
New: 1985
Distance between Centers 40″
Maximum Table Travel 51″
Maximum Swing over Table 10″
Maximum Swing over Table with 5″ Risers 20″
Traverse per Revolution of Handwheel Coarse .8″
Traverse per Revolution of Handwheel Fine .1″
Traverse Speed (Infinitely Variable) .06-18 FPM Minimum Table Oscillation .1″
Dwell at Reversal (Infinitely Variable) 0.5 Sec Swivel Range 9 WHEELSLIDE Travel with Handwheel Coarse/Fine 9-5/8″
Infeed per Revolution of Handwheel Coarse .3″
Infeed per Revolution of Handwheel Fine .04″
Rapid Advance and Retraction, Hydraulic 1-9/16″
Hydraulic Infeed 0-.035″
Plunge Grinding, Infeed Speed .00001-.0001 Traverse Grinding, Infeed per Table-Slide Reversal .00004-1.18 WHEELHEAD Grinding Wheel for OD Grinding 16″ x 2″ x 5″
Grinding Wheel for Right Hand Spindle End 9″ x ” x 3″
Spindle Speeds 1500, 1700, 2200 RPM
Wheelhead Swivel Range 8 to -195
Carrier Bore for Internal Grinding Spindles 3-5/32″
Wheelhead Drive 4 HP

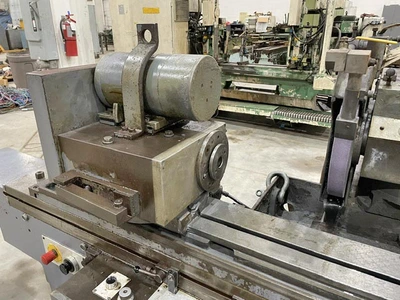

WORKHEAD
Swivel Range 360
Spindle Speeds (Infinitely Variable) 20-400 RPM Internal Taper of Work Spindle No. 5 Morse Electrics 3/60/460V Approximate Weight 8,700 lbs
EQUIPPED WITH:

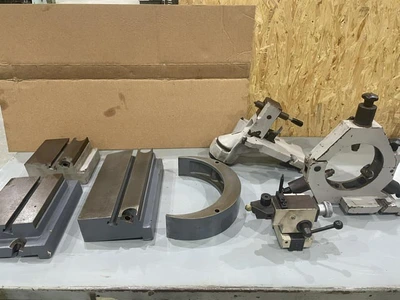

Equipped 360 Degree Swivel WheelHead. LH OD Grinding Wheel. Swing Around ID Grinding Wheel. Hand Wheel Workhead Positioning for Surface Grinding. Riser Blocks for WheelHead, Workhead, Table Mounted Dresser and Tailstock. Variable Speed Swiveling Workhead. Swivel Table. Air Actuated Tailstock with Foot Actuator. Free Standing Electrical Cabinet. Radius Dressing Fixture. Straight Dressing Fixture. Steady Rest. Coolant Pump and Tank. Misc Tooling including Drive Dogs, spare mandrels. Books and Drawings.
Location: Wixom, MI
