USED REXROTH 0608701016

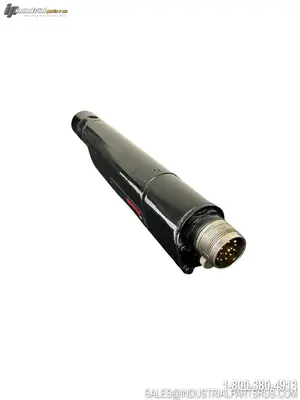

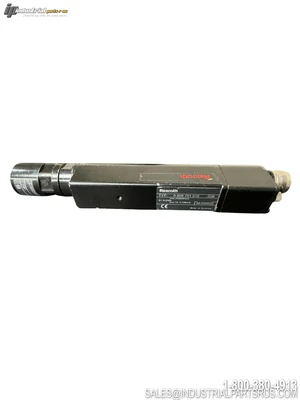

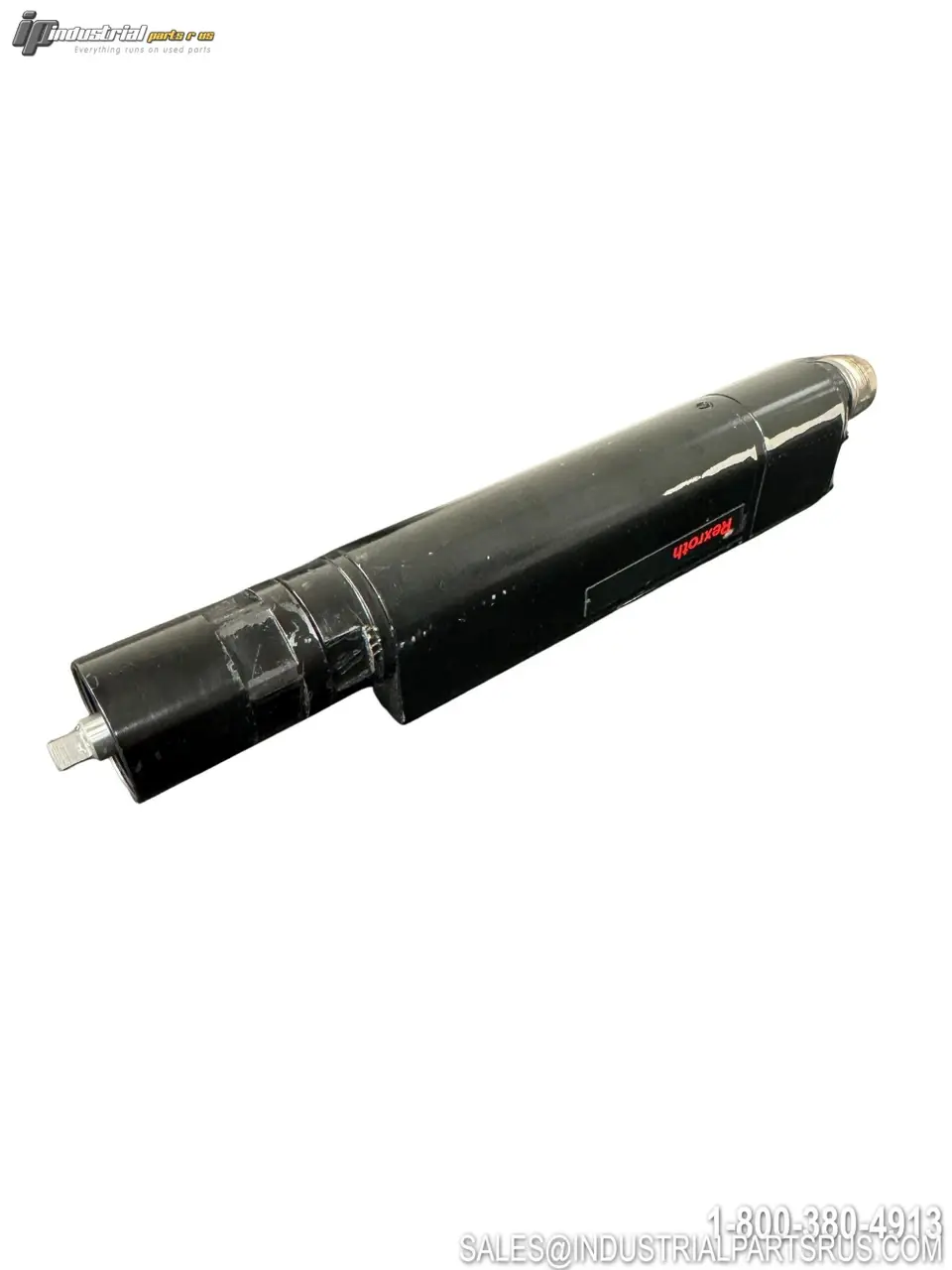

The Bosch Rexroth 0608701016 is an EC302 SZ2 brushless EC (electronically commutated) Nutrunner belonging to the Rexroth Tightening System 300 Series. It is specifically engineered for use in EC tightening spindles (Size 2), providing precise, controlled torque delivery for automated screw-fastening applications in industrial assembly lines. The motor features a 14-pin connector interface, operates on a 0–230V AC three-phase variable-speed supply, achieves a maximum speed of 20,000 RPM, and is rated at 160W (0.16 kW) with an IP54 ingress protection rating. It is maintenance-free for 1 million full load cycles and carries an Insulation Class F rating.
Specification
Value
Brand
Bosch Rexroth

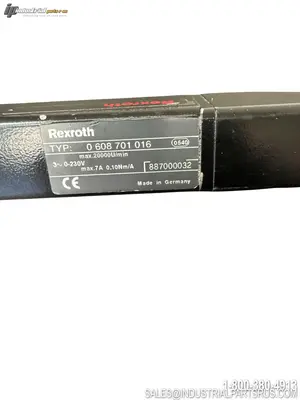

Model / Part Number
0608701016
Model Code
EC302 SZ2
Product Series
System 300
Motor Type
EC Motor (Electronically Commutated / Brushless)
Rated Voltage
0–230 VAC (3-phase)
Maximum Current
0.7 A
Torque Constant
0.1 Nm/A
Rated Torque
0.6 Nm
Peak Torque
0.7 Nm
Maximum Speed
20,000 RPM
Connector / Pins
14-Pin
Tightening Spindle Size
Size 2 (EC, Working Range 0.6–2.5 Nm)
Installation Length
65.5 mm
Weight
0.4 kg
Phase
3-Phase
Application
EC Tightening Spindle / Automated Assembly Screwdriving
We warranty all items for 30 days from date of purchase.
