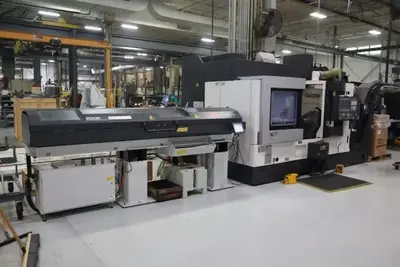

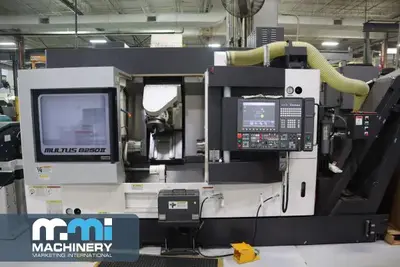

USED 2019 OKUMA MULTUS B250II W X 750
Overview
Used Okuma Multus B250II W X 750. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Okuma CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs
OSP-P300SA-H Control
Sub Spindle
Big Bore Option: 3.15" Bar capacity
Capto C6 Spindle Taper
60 Tool Capacity
Tool Presetter
Parts Catcher
FMB Turbo 5-55 Bar Feeder
Spindle Liners
Hinge Type Chip conveyor
1000 PSI coolant Thru spindle
Mist Collector MP 1200 System
Coolant Tanks w Flood pumps
Chiller Unit
Renishaw Tool Probe
Hainbuch Axfix 100 Collet Chucks Main and Sub Spindle
Under 2000 Cutting Hours
Swing Over Saddle: 23.62"
DISTANCE BETWEEN CENTERS: 29.53"
X-Axis Travel: 19.69"
Y-Axis Travel: +/- 3.94"
Z-Axis Travel: 31.5"
W-Axis Travel: 31.89"
C-Axis Travel: 0.001 degree
B-Axis Travel: -30 to +195 degree
B-Axis Indexing: 0.001 degree
Main Spindle Speed: 5000 RPM
Main Spindle Power: 30 HP
Spindle Nose: JIS A2-6
Main Spindle Bore: 3.93"
Main Spindle Bar Size: 3.15"
Sub-Spindle Speed Max: 6,000 RPM
Sub Spindle Power: 15 HP
Sub Spindle Bore: 3.93"
Sub Spindle Bar Size: 3.15"
Milling Spindle Speed Max: 20,000 RPM
Milling Spindle Taper: Capto C6
ATC Capacity: 60
Machine Size: 142.52" X 87.01" X 101.66"
Machine Weight: 17,820 LBS
Equipped With
OSP-P300SA-H Control
Sub Spindle
Big Bore Option: 3.15" Bar capacity
Capto C6 Spindle Taper
60 Tool Capacity
Tool Presetter
Parts Catcher
FMB Turbo 5-55 Bar Feeder
Spindle Liners
Hinge Type Chip conveyor
1000 PSI coolant Thru spindle
Mist Collector MP 1200 System
Coolant Tanks w Flood pumps
Chiller Unit
Renishaw Tool Probe
Hainbuch Axfix 100 Collet Chucks Main and Sub Spindle
Under 2000 Cutting Hours
