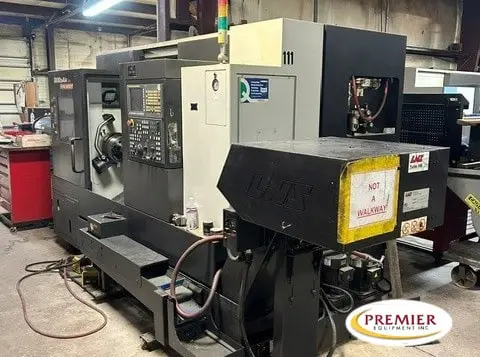

DOOSAN PUMA 2600SY – 2011

Swing over Bed:      30.7″
Swing over front door:      26.8”
Swing over carriage:      24.8″
Standard chuck though hole I.D. :      3.03”
Max turning diameter, main spindle:      14.8″
Max turning length:      29.92”
Distance between main & subspindle nose:      43.46”
Spindle speed:      4,000 RPM
Spindle nose:      ASA-A2-8
Draw tube I.D. :      3.03″
Spindle bore diameter:      3.38″
AC high torque spindle motor (30 min) :     30 HP
Minimum programmable angle (degrees) :      .0010
Rapid traverse rate (RPM) :      200
C-axis contouring torque:      112 ft-lbs
C-axis braking torque :     663 ft-lbs
X axis travel :     10.23”
Z axis travel :     32.67”
