USED 2012 DURMA SBT 3006

Ontario, Canada
Asking Price
USD $21,500.00
1 available
282Listings|158Followers
Overview
Power Squaring Shears (Inch)

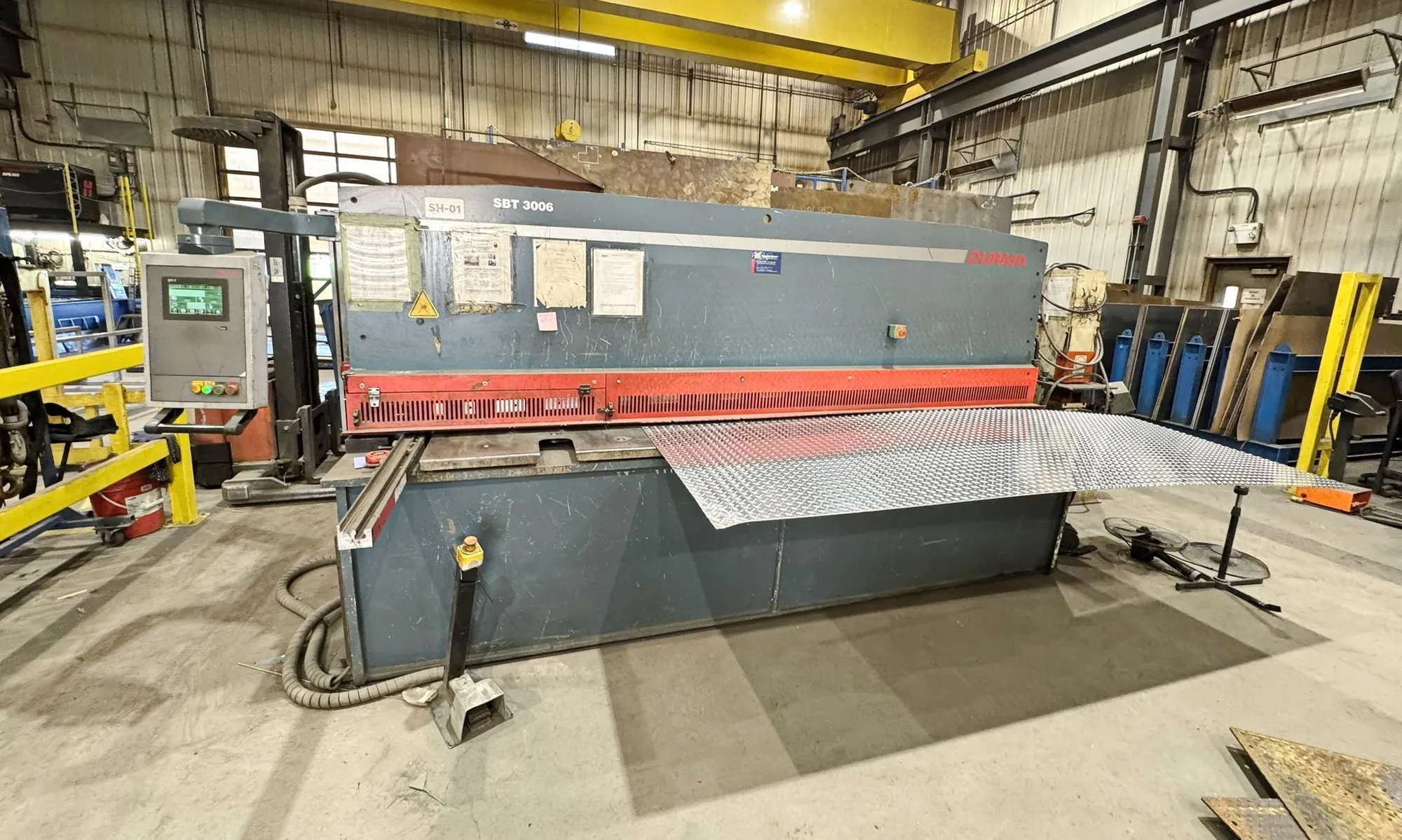

2012 Durma SBT 3006 CNC Hydraulic Swing Beam Guillotine Shear, Motorized Backgauge W/ Automatic Swing-Up, Omron Rear Safety Light Curtains, Ball Integrated Front Tables, Blade Gap Adjustment, Hydraulic Hold Downs, Foot Pedal Control

Specs
Max Thickness
0.236"
5.9944 mm
Length of Blade
10.17'
3.1 m
Cutting Angle
1° 30’
1° 30’
Hyd/Mech
Hyd
Hyd
Back Gauges
39.37"
1,000 mm
Back Guage Power
1 hp
0.7 kW
Hold Downs
16
16
Hold Down Pressure
15.4 Tons
15.4 Tons
Power
20 hp
14.9 kW
SPM
15 strokes/min.
15 strokes/min.
Throat Depth
1.97"
50.038 mm
Table-L
138.4"
3,515.4 mm
Table-H
34"
863.6 mm
Made In
Turkey
Turkey
Control
CNC (Durma DT-7)
CNC (Durma DT-7)
Dimensions
161.8" X 86.6" X 82.7"
161.8" X 86.6" X 82.7"
Weight
17,262 lb
17,262 lb
Equipped With

Motorized backgauge w/ automatic swing-up
D-Touch 7 CNC touchscreen control unit
Omron rear safety light curtains
Ball integrated front tables
Blade gap adjustment
Hydraulic hold downs
Foot pedal control
