USED HAAS VF-5/50
Specs

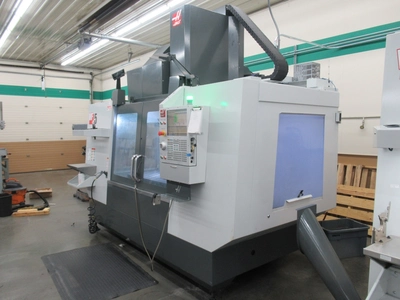

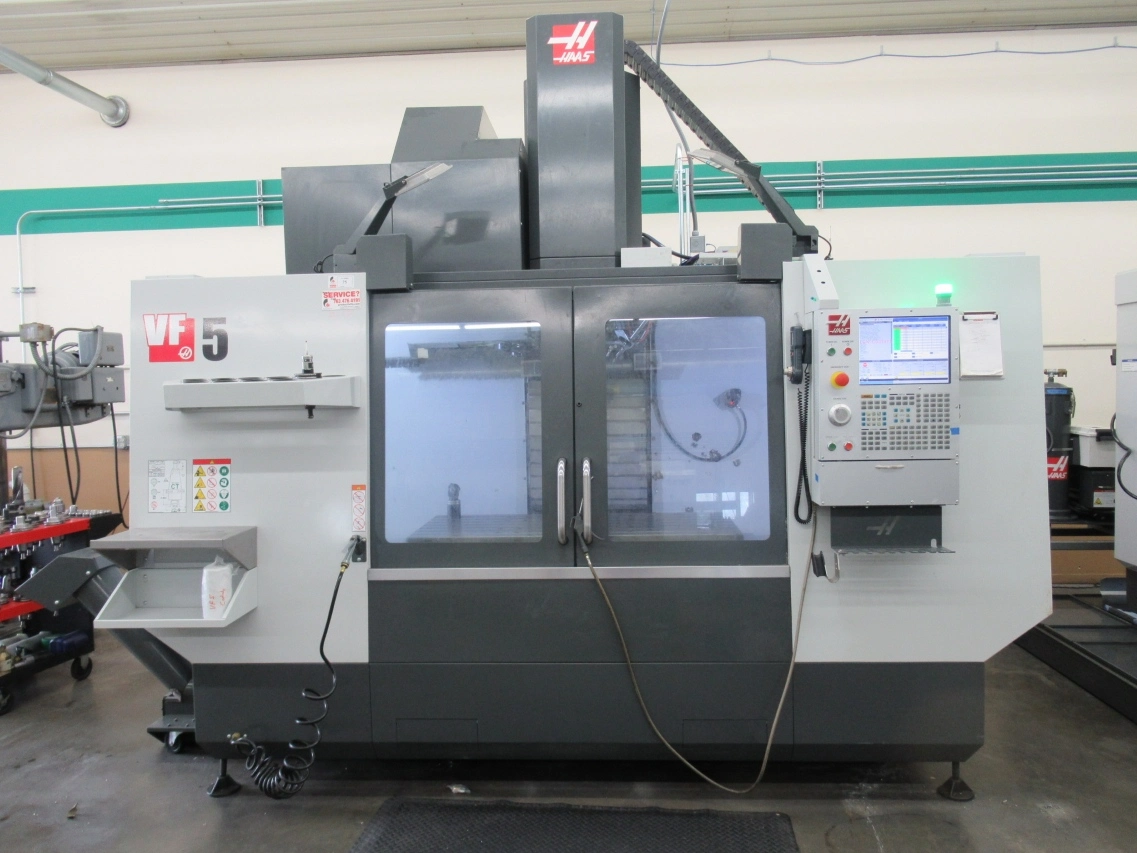

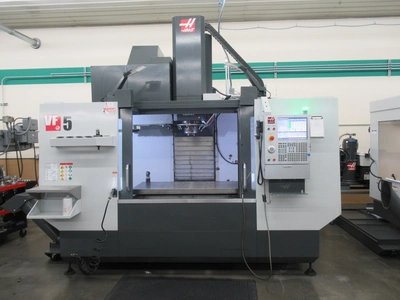

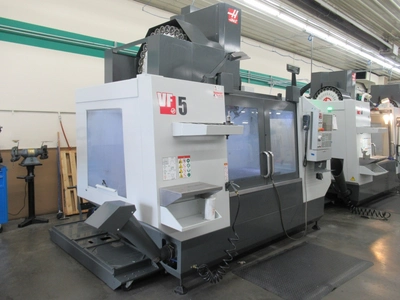

Lot 75: Haas VF-5/50 CNC Vertical Machining Center, Haas NextGen CNC Control, 4th Axis, TSC, Probing, HSM, 30 ATC
Electrics:
220 Volt, 3 Phase
Main Unit Approx Weight: 14600.00 lbs
Main Unit Dimensions (in inches): Length: 136.50" Width: 99.00" Height: 115.00"
Components:
Machine Shipping Dimensions: Length: 137.00" Width: 94.00" Height: 112.00"
Coolant Tank: Length: 80.00" Width: 48.00" Height: 27.00"
Specs:

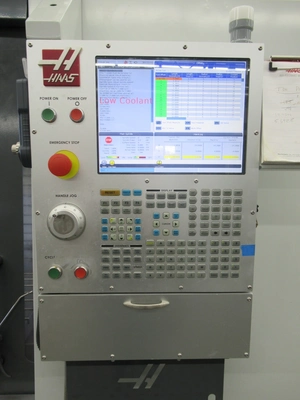

Machine Control: Haas NextGen CNC Control

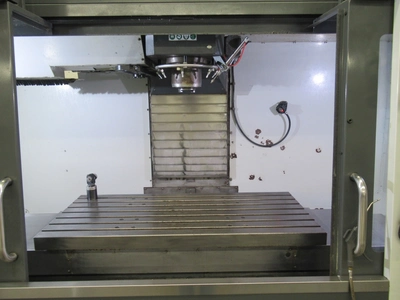

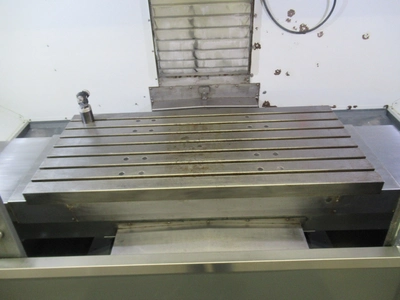

Table Size: 52" x 23"
Machine Travels (X/Y/Z): 50" x 26" x 24"
Table Capacity: 4,000 Lbs.

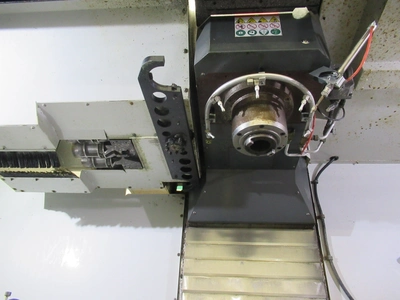

Spindle Taper: Cat 50 Taper
Spindle Speeds: 0 - 7,500 RPM
Transmission: 2-Speed Gearbox
Rapid Traverse Rate (X/Y/Z): 710 IPM
Maximum Cutting Feed Rate: 300 IPM
Tool Changer Style: Side-Mount, Twin-Arm
Tool Changer Capacity: 30 Stations
Max Tool weight: 25 Lbs.
Spindle Drive: 30 HP Vector Drive
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
Equipped With

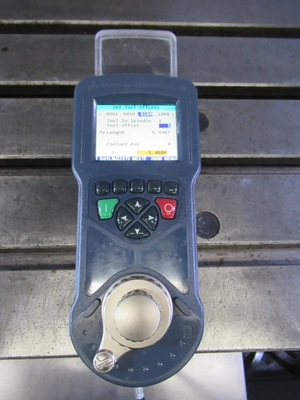

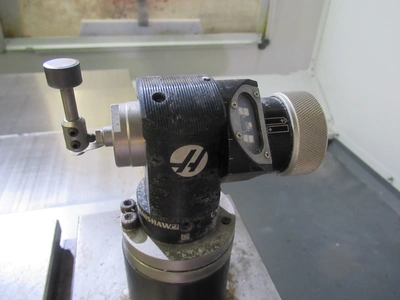

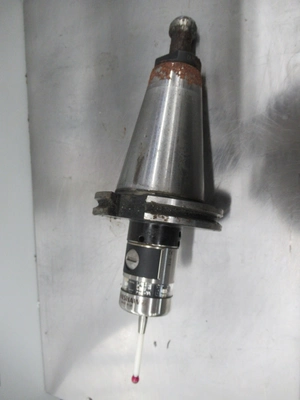

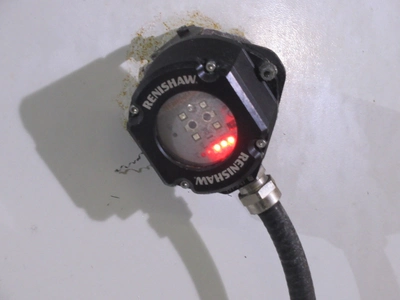

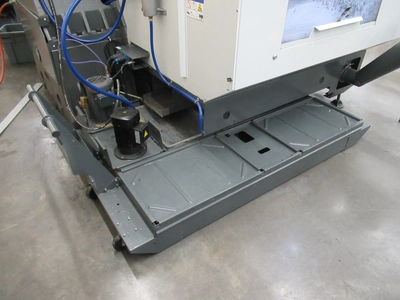

Haas NextGen CNC Control, Brushless 4th Axis Drive, 300 PSI Thru Spindle Coolant, Renishaw Probing System with Part Probe and Tool Setter, Probe Riser, 30+1 Station Side Mount Twin Arm Automatic Tool Changer, 95-Gallon Coolant Tank with Pump, Programmable Coolant, Auto Air Gun, Auto Door for Mills, Chip Auger, High Intensity Lighting, High Speed Machining, Remote Jog Handle with Color LCD Display, USB.
