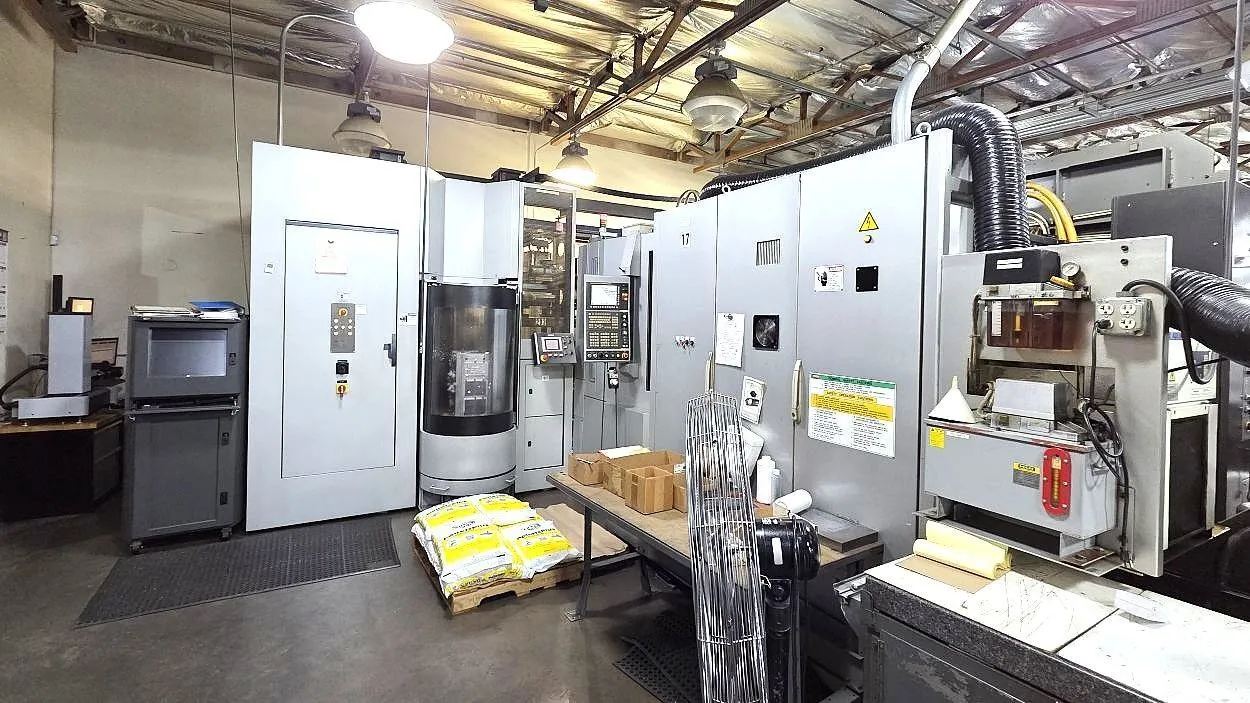

USED 2007 TOYODA FH450S FMS

TOYODA FH-450S CNC HMC Horizontal Machining Center RGV 12 Pallet
FMS Cell, Full 4th. Axis 360,000. Positioning Rotary Table, 50-15,000 RPM's
Fanuc 30i CNC Control. Machine is Under Power for Inspections or Full Videos

X Axis Travels 23.62"
Y-Axis Travels 23.62"
Z-Axis Travels 23.62"
Main Spindle Power 30.Hp.
RPM's 50-15,000
Modular Automatic Tool Changer # 120 ATC
Spindle Taper Cat 40 Taper V-Flange Big Plus
Pallet-W 17.7" x Pallet-L 17.7"
Full 360,000 Degree 4 -Axis Rotary Table
Fanuc 30i CNC Control

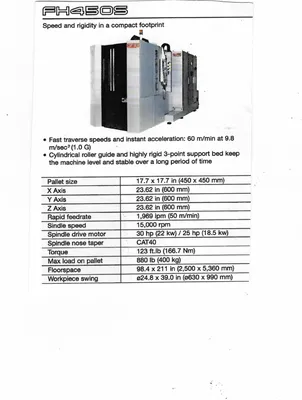

Dimensions
Machine Only 98.4" x 221"
Weight 23,500 Lbs.

**Confirming with RGV System Installed.!
and Optional 120 ATC & Pallet Pool.

Special Ordered FMS System Options Installed.!

120 Station Modular Automatic Tool Changer System
Overhead Coolant Shower System
High Pressure Coolant Thru Spindle 1000 PSI
Work Coordinate System 48 Sets
OP20T Operation Suporter
Expanded Memory 5120 Meters
Adaptive Control with Condition Management

Special Factory Ordered 12 Pallet RGV System
Dual Level II System Software
Ethernet Link

I thank you for your review and considerations and
look forward to any question and more photos
and Operation videos in Process.

Sincerely,
Mark Murphy
Murphy Machinery
