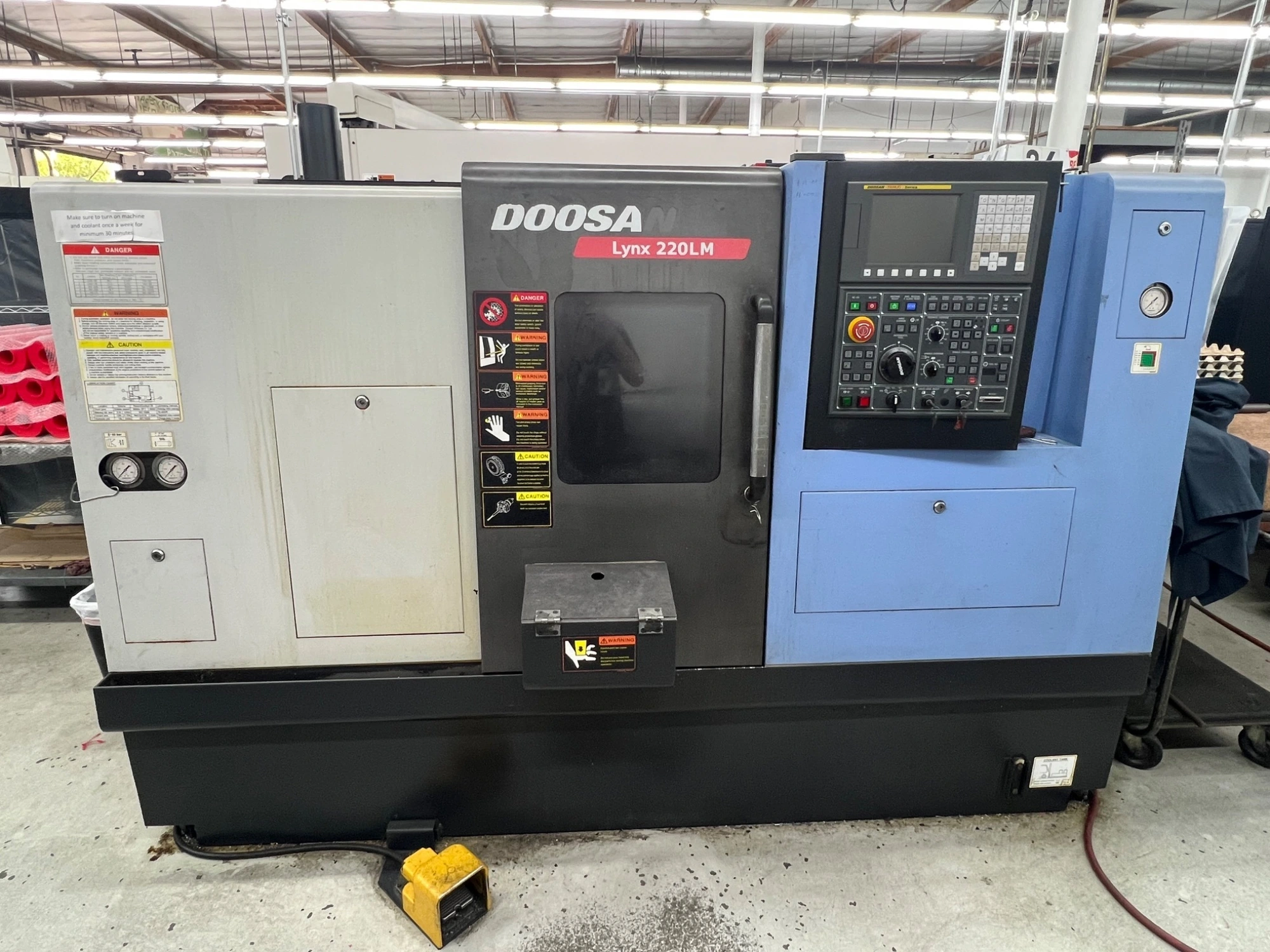

USED 2010 DOOSAN LYNX 220LMA

2010 DOOSAN Lynx 220LMA CNC Lathe w/ Live Milling #8403 #2

SPECIFICATIONS:
Max Turning Diameter: 9.84″
Max Turning Length: 20.1″
Max Bar Capacity: 2.0″
Swing Over Carriage: 11.4″
Swing Over Bed: 20.1″
X Axis Travel: 17.7″
Z Axis Travel: 13.0″
C Axis: 0.001°
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM

Chuck Size: 6.5″
Spindle Bore: 2.4″
Spindle Speed: 6,000 RPM
Spindle Nose: A2-6
Spindle Motor: 20 HP
Live Tooling Motor: 5 HP
Live Tool Speed: 6,000 RPM
Turret Capacity: 24 Stations
Turret Index Time: 0.15 Second
Tailstock Quill Dia.: 3.93″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-4

Power Source: AC 200/220 V, 3 Ph, 50/60 Hz
Power Requirement: 68 Amps
Overall Dimensions: 105″ x 65″ x 65″ High
Approx Lathe Weight : 8,820 lbs

EQUIPPED WITH:
Fanuc i series CNC Control with Color LCD
24-Station Turret with
Live Milling Tools
Tool Presetter
Hydraulic Tailstock with Programmable Quill
LNS Eco Load-L Bar Feeder
6.5″ 3-Jaw Kitagawa Hydraulic Chuck
2 Step gear spindle for powerful torque
PCMCIA Card Slot
Coolant System- Chip Pan and Skimmer
Automatic Lubrication system
Foot Operated Control for Chuck
