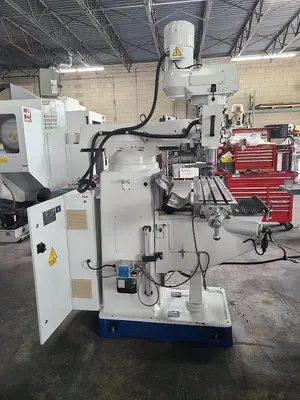

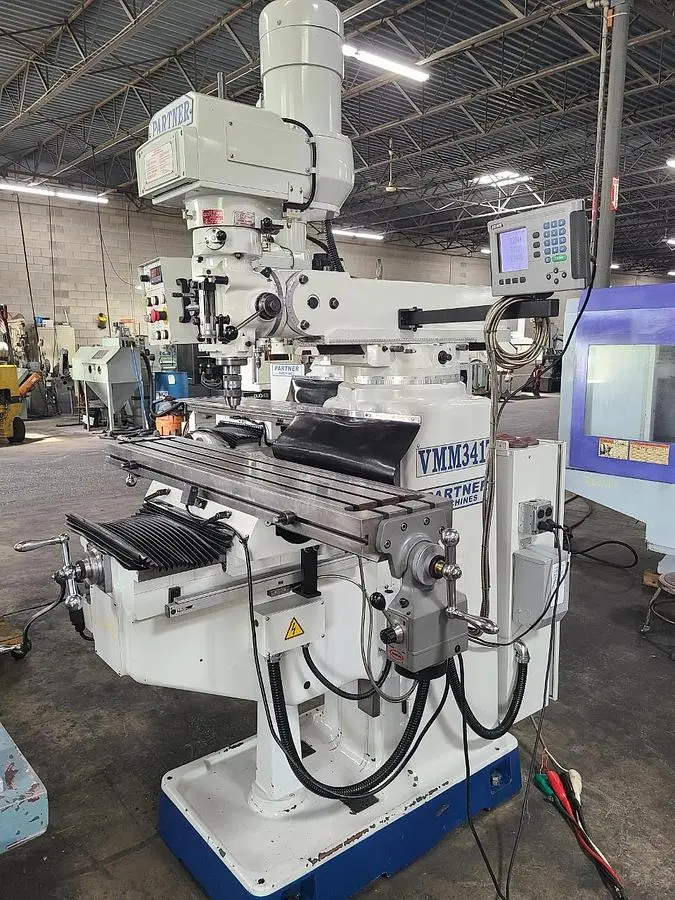

USED 2015 MILLTRONICS VMM3417

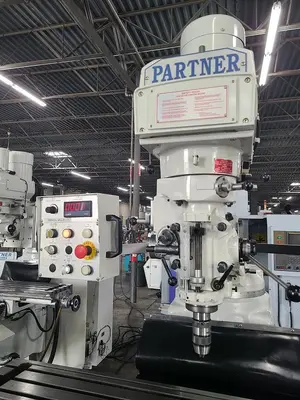

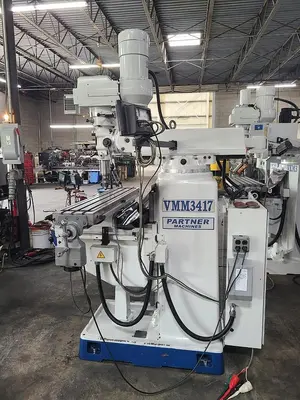

MILLTRONICS VERTICAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $14,500.00

Stock # 26018
Serial # P1151
Model: VMM3417
Year: 2015

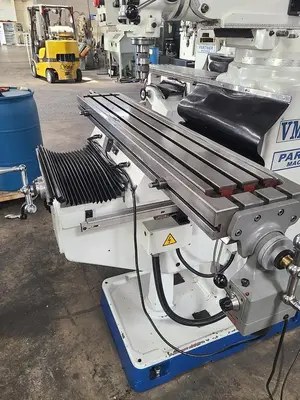

Table Size: 10″ X 54″
Table Travel - Longitudinal (Dovetail Way): 40″
Saddle Travel - Cross (Box Way): 15″
Knee Travel - Vertical (Box Way): 16″

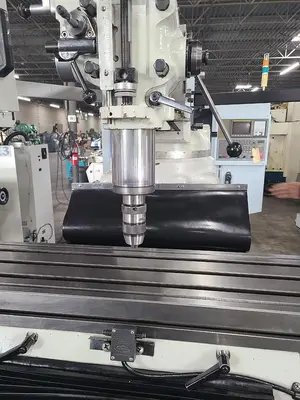

Quill Diameter: 3-1/2″
Quill Travel: 5″
Ram Travel: 22″
Spindle Taper: R8
Quill Power Feed Rate: 0.0017″, 0.0033″, 0.0054″
Spindle Speeds (Infinitely Variable): Maximum 3750 RPM
Tilt Angle (Forward & Backward): +/- 45 Degrees
Tilt Angle (Left & Right): +/- 90 Degrees

EQUIPPED WITH:
Servo Power Feed on X-Axis
Powered Knee Up/Down

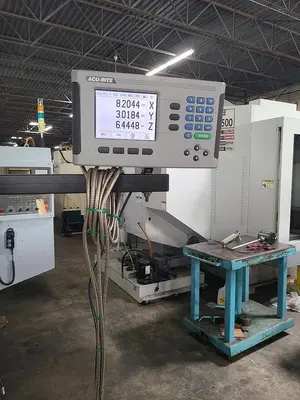

3-Axis Acu-Rite Digital Read Out

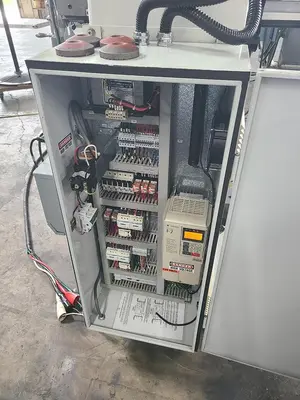

Variable Frequency Spindle Drive Controller
Digital Spindle Speed Tachometer
Automatic Lubrication
Coolant Style Base
Spindle Motor (Inverter Drive): 3 HP

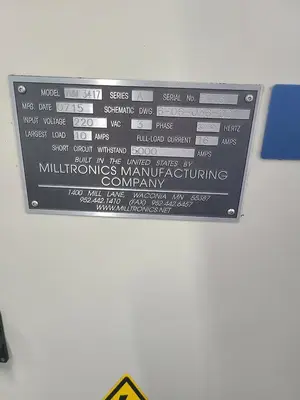

Wired for 3 Phase, 60 Cycle, 220 Volts

Dimensions: 72″ L-R x 76″F-B x 96″H
Approx. Weight: 3,500 Lbs.
