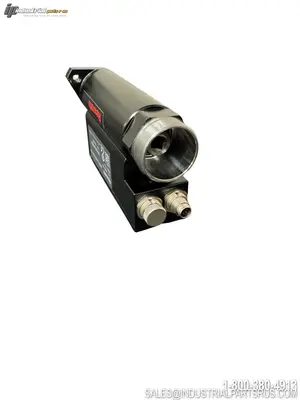

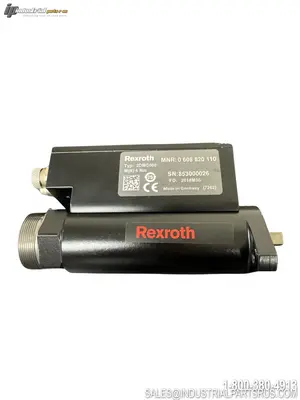

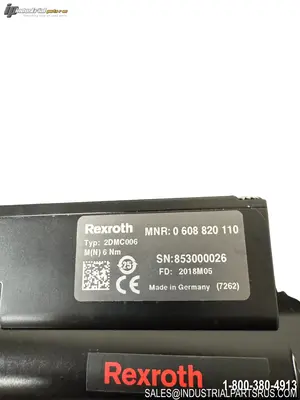

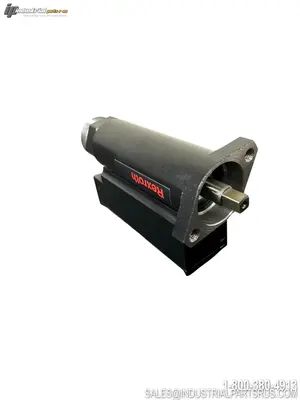

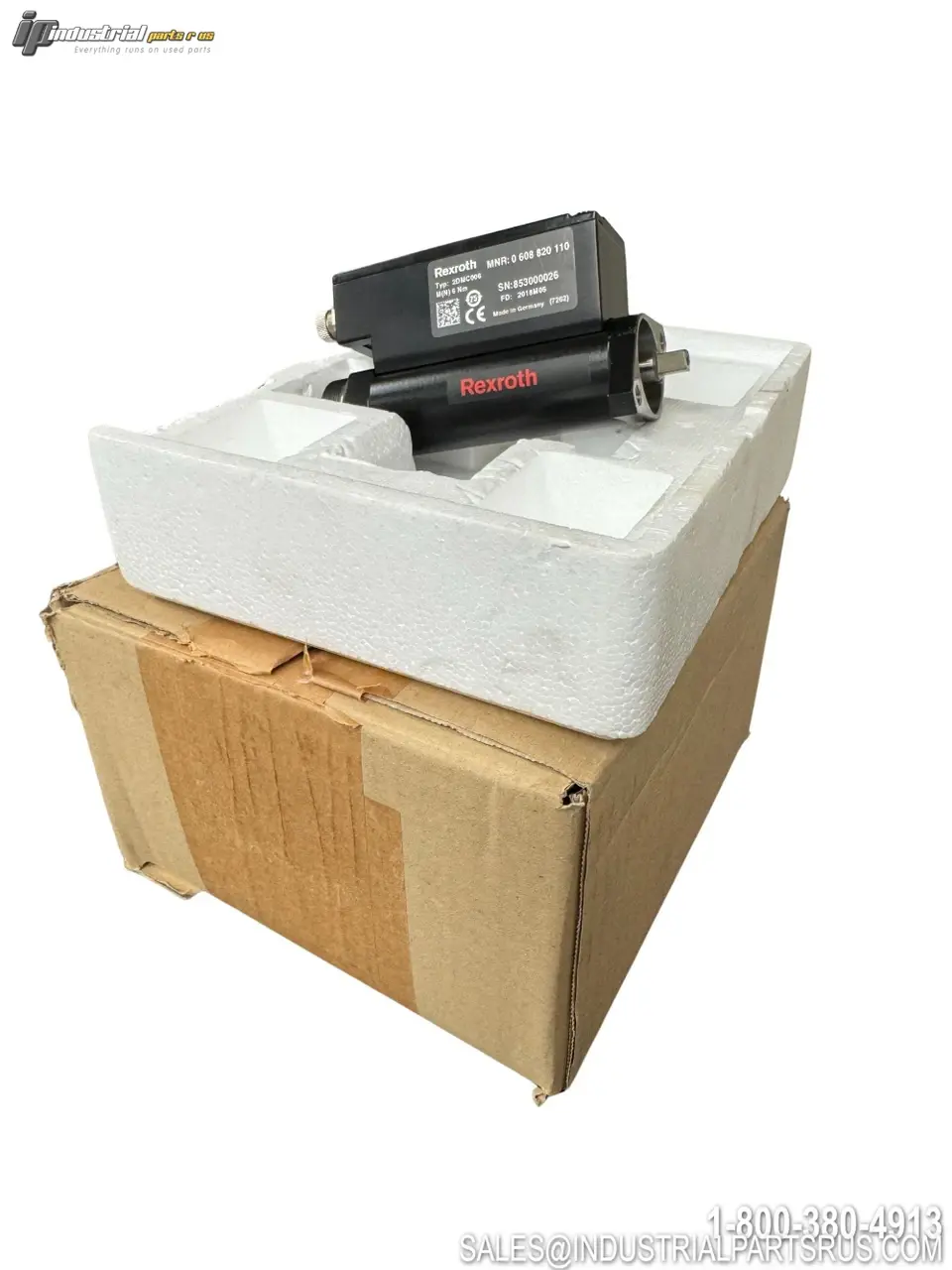

NEW REXROTH 0608820110

The Bosch Rexroth 0608820110 is a Size 2 Measurement Transducer (model 2DMC006, designation SZ2) designed for use with the Rexroth Tightening System 350 tightening spindles. It features non-contact, maintenance-free sensing technology for direct analysis of torque, angle of turn, and gradient, and includes an integrated cycle counter. The unit can be configured as a primary or redundant measurement transducer when used with the appropriate redundant adapter, providing enhanced system safety for critical assembly applications.
Specification
Value
Brand
Bosch Rexroth
Model / Part Number
0608820110
Product Name
TRANSDUCER 2DMC006 SZ2
Transducer Code
2DMC006
Size Designation
SZ2 (Size 2)
Compatible System
Rexroth Tightening System 350
Product Category
Tightening Spindles / Measurement Transducers
Nominal Torque
6 Nm
Working Range
0.6 – 5.5 Nm (spindle size 2)
Max Output Drive Speed
1000 rpm
Reduction Ratio
1:1
Average Efficiency
1 (100%)
Installation Length
118.5 mm
Weight
0.55 kg
Sensing Technology
Non-contact, maintenance-free
Measured Parameters
Torque, Angle of Turn, Gradient
Integrated Cycle Counter
Yes
Redundant Configuration
Yes (with redundant adapter, e.g. 2AR – Order No. 0608810020)
Compatible Spindle Bearing
2GA82 (Order No. 0608800077), 2GB82 (Order No. 0608800078)
Compatible Planetary Gearbox
2GE19, 2GE26
Compatible EC Motor
EC302 (Order No. 0608701016)
We warranty all items for 30 days from date of purchase.
