NEW FPT F4HFE413Z*V005

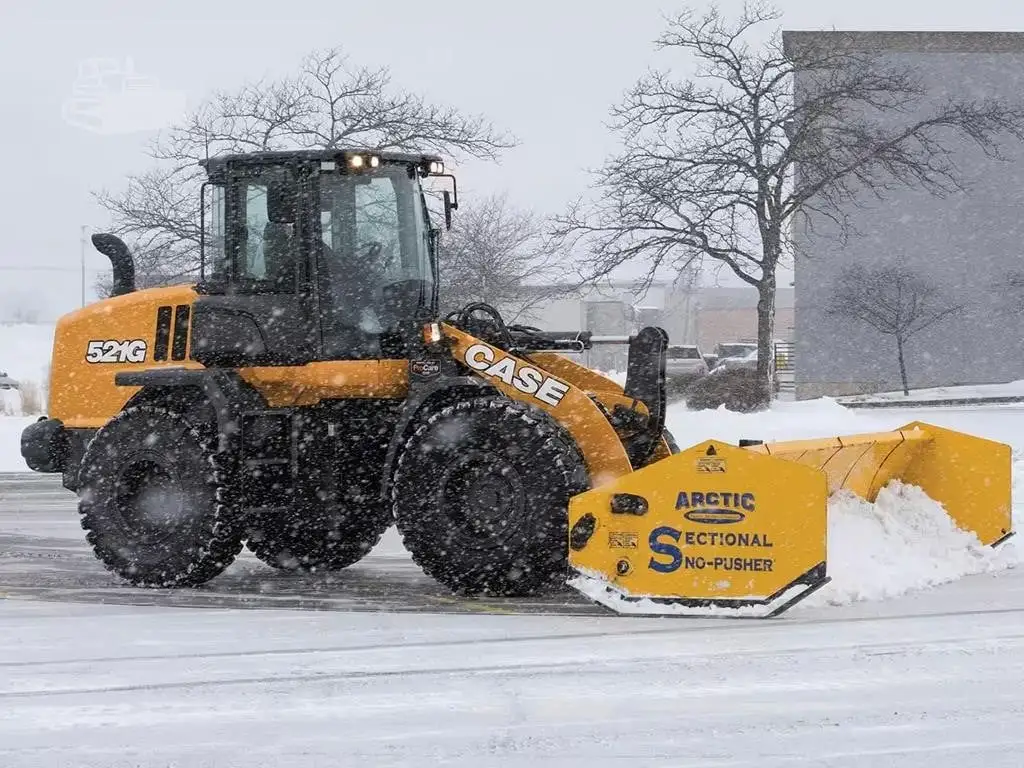

521G — Z-BAR/XT/XR LARGE WHEEL LOADER

There’s plenty of stuff that needs moving. The CASE 521G, the perfect all-around construction, utility, municipal and snow loader, has you covered. Just look at the versatility and flexibility: three linkage options, multiple axle configurations and extensive attachment compatibilities. The cab surrounds operators in comfort and control with a touchscreen display, adjustable electro-hydraulic controls, unmatched visibility and fleet management technologies. 142 eager horses provide the power. And CASE ProCare protects your investment. What jobs will you tackle?

A CORNER OFFICE WRAPPED IN IRON
One look at how a CASE G Series wheel loader commands a jobsite, and you’ll change the way you measure a wheel loader. After all, these pile-busting machines offer everything needed to make mincemeat of the biggest tasks, all while taking care of the operator.

The cab offers tons of comfort, control and convenience. A roomy interior. Superior ergonomics. Great visibility. Big-screen display. High-tech info. And intuitive controls. There simply is no equal to them on the market.

Beyond that, these brawny machines feature the guts to get the job done. You get plenty of power for loading. Lots of fuel-saving features. Smart emissions solutions and payload options to increase accuracy and efficiency.

And with a full line of machines to choose from, CASE has you covered with a machine built to fit whatever job is staring back at you.

FEATURES

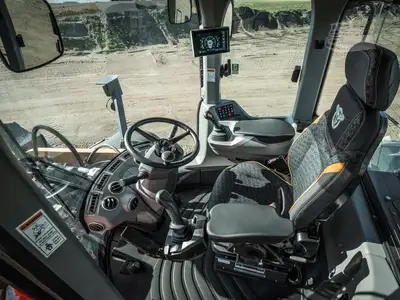

ULTIMATE OPERATOR ENVIRONMENT
There’s no rule against enjoying a little luxury while relocating tons of dirt. Each G series wheel loader features a large and spacious cab with fully adjustable workstation and multiple seat options that allow operators of all sizes to work comfortably all day long. They make competitor cabs look like sardine cans. A large single-paned front window provides optimal visibility to the bucket and to the ground, and an optional LED lighting package and rearview camera (operable in both forward and reverse) create additional operator awareness to the working area.

GREATER INFORMATION & CONTROL
CASE G Series wheel loaders take all that muscle and might and give you precision control like never before. The touchscreen display puts all the critical machine information and settings within easy reach. Adjustable electro-hydraulic controls independently set lift (boom) and tilt (bucket) responsiveness to smooth, moderate or aggressive for dialing in operation to each task or operator preference – such as a new operator who may want a smoother response, or a more experienced operator who adjusts the bucket to a more aggressive setting for finely topping off a truck or hopper. Three configurable buttons allow the operator to pre-program three functions or settings – both for general loader operation and the optional integrated payload system. Power mode features two options: Smart and Max. Max is ideal for experienced operators comfortable controlling full power, while Smart delivers high performance and an enhanced operating experience through improved communication between the engine and transmission. This also helps achieve smoother shifting, reducing tire wear and providing up to 10% fuel savings compared to Max mode.

KNOW YOUR PAYLOAD
This is efficiency in action. An optional, factory-integrated payload system allows operators to more accurately load and top off trucks and hoppers – helping to eliminate over- and under-fill situations, improve cycle times and ensure that the operator is delivering the correct amount of material, whether loading trucks out on a jobsite or measuring material loaded in a supply yard. It also provides detailed reporting and integration with CASE SiteWatch™ telematics for optimized tracking, billing and operational analysis.

INDUSTRY-LEADING WARRANTY & PLANNED MAINTENANCE
Nobody stands with you more than CASE. Each G series wheel loader comes with ProCare, providing peace of mind and controlled cost of ownership. It includes:
• Three-year 3,000-hour full-machine factory warranty
• Three-year 2,000-hour planned maintenance contract
• Five-year CASE SiteWatch™ telematics subscription

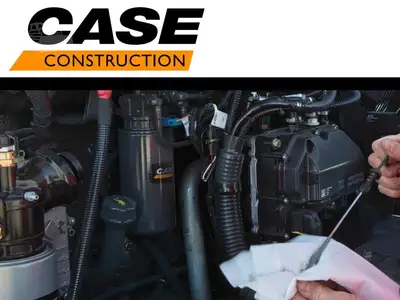

EASY GROUND-LEVEL SERVICE ACCESS
It shouldn’t be a hassle getting to your machine’s critical points.
Most CASE G Series wheel loaders feature an electric rear hood* that provides easy access to the engine compartment for excellent groundline serviceability. All major regular service points, including HVAC filters and components, can be accessed from ground level, meaning less downtime for checks and maintenance. *Available on the 621G through 1121G

SITECONNECT FLEET MANAGEMENT
Fact – you always get much faster cycle times when your machine is up and running. The SiteConnect Module from CASE allows for greater fleet management collaboration and remote diagnostics of your CASE G Series wheel loader. This includes the SiteManager App (iOS and Android), which pairs a phone or device to the machine for remote analysis. This enables your local CASE dealer technician to make a determination as to whether an issue can be addressed remotely (such as clearing codes or updating software) or if it requires a trip to the machine. If a trip is needed, the technician is already equipped with helpful information to make sure the machine can be fixed right the first time. The SiteConnect Module also creates a powerful connection between the wheel loader, the dealer and the experts at the CASE Uptime Center, ensuring you avoid costly downtime.

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT
ROPS cab AC w/ heat; 8” LCD touchscreen display, adjustable armrest w/ 3 configurable buttons; Key start; Articulated power steering w/ tilt column; Fully adjustable, suspension seat w/ headrest; Foot throttle with throttle set feature; Single lever (joystick) loader control w/ auxiliary function and fully adjustable wrist rest, 2 cup holders; Interior rear view mirror; 3” High Visibility Seat belt Orange retractable seat belt; Integrated LED rotating beacon; Multiple storage trays; Single brake pedal; F/N/R shuttle switch; Left and Right external rear view mirrors; Pressurized air filtering; Anti-glare window strip; Front and Rear Defroster; Side window, partial/fully open; 2 Dome lights; Wipers, rear and intermittent front; Windshield washers, front and rear; Rubber floor mat; Horn; Radio ready – Includes antenna, speakers, wiring, radio fuse, 20A converter, 12-volt auxiliary power outlet, and USB outlet.

ENGINE
• CASE/FPT F4HFE413Z*V005
• TIER 4 FINAL/STAGE V CERTIFIED
• SCR, DOC & SCRof
• Selectable work modes: Maximum Mode, Smart Mode
• Turbocharger
• Charge air cooling
• Automatic fan belt tensioner
• Integral engine oil cooling
• Fuel filter with water trap
• Dual-element dry-type air cleaner
• Hydraulic-driven cooling fan
• Air-cooled radiator
• Mid-mounted cooling module with hydraulically driven auto reversing fan
• Engine block heater
• Common rail electronic fuel injection

DRIVETRAIN
• 4-wheel drive
• 4F/3R Selectable autoshift /manual shift transmission
• Electronic Control Module – programmable,
• computer controlled proportional shifting with programmable gear selection
• Onboard diagnostics
• Single lever electronic shift control
• F/N/R switch in loader control handle
• Downshift button
• Torque converter
• Outboard planetary axles
• Limited-slip differentials
• Transmission oil cooler
• Brake pedal transmission disconnect
• Hydraulic wet disc brakes
• Spring-applied hydraulic release parking brake
• Limp-Home Mode

HYDRAULICS
• Adjustable Electro-hydraulic - EH loader control with one auxiliary function and 3 configurable buttons
• Adjustable EH settings: Smooth, Moderate, Aggressive
• Auxiliary hydraulics
• Ride Control™ On/Off Auto w/ Adjustable speed
• Locking hydraulics for hydraulic coupler
• EH Parallel Lift
• Low-effort steering
• Hydraulic driven fan
• 8 Diagnostic quick couplers
• Hydraulic oil cooler

ELECTRICAL
• 70 amp alternator and voltage regulator
• Battery isolator/electrical disconnect
• (2) 700 CCA 12-volt batteries
• Lights:
• LED rotating beacon
• 2 Front driving headlights – high/ low beam
• 2 Front flood
• 2 LED stop and tail lights
• 2 Rear flood
• Front and rear turn signal / flash
• Centrally located fuse box
• with all electrical circuits protected
• Backup alarm
• Remote jump start posts

OTHER
• Front and rear fenders, partial coverage
• External rear view mirrors
• Heavy counterweight
• Foot Throttle with Throttle Set
• Drawbar hitch
• Articulation locking bar
• Lift arm locking bar
• Lift and tie-down points – front /rear
• Rear frame side covers
• License plate brackets; front bracket and lit rear bracket
• Rubber steering stops
• Grouped remote-mounted ecology drains: Engine oil, Engine coolant, Hydraulic oil

TELEMATICS
• CASE SiteWatch™ Telematics – includes hardware and a 5-yr Advanced data subscription
• SiteConnect Module providing remote diagnostics capability

OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT
• Cloth-covered heated air-suspension seat with headrest
• Sound Shield noise suppression package
• Bluetooth radio, 12V AM/FM with auxiliary input
• Cab convenience package:
• Rear sun shade, interior mirror, under the seat drawer, coat hook, 12V accessory port, and an ash tray
• In cab powered cooler box
• In cab accessory mount
• RH steps and platform
• Rear view camera
• External heated rear view mirrors
• Front LED driving/headlights
• LED front and rear work lights – 4 front, 2 rear

DRIVETRAIN
• Heavy-duty axles: With locking front differential and open/conventional rear differential
• Cold weather package:
• Heavy-duty batteries (2x 950 CCA)
• Fuel heater
• Hydraulic oil cooler bypass
• Low temperature hydraulic oil
• Grid heater

HYDRAULICS
• Secondary steering
• Integrated Payload System
• Tire Pressure Monitoring System
• 2-spool loader valves with joystick loader control
• 4-function loader valve with joystick loader control and two proportional auxiliary roller switches

LOADER
• Hydraulic attachment coupler systems
• Buckets
• Parallel lift XT
• Extended reach XR

TIRES
• 17.5 x 25 L2 Bias
• 17.5 x 25 L3 Bias
• 20.5R25 L2 Radial
• 20.5R25 L3 Radial

OTHER
• 12 mph (20 kph) maximum speed control
• Special paint
• Skid Plate/ Transmission guard
• Standard fenders with right and left hand steps
• Wide full coverage fenders with right and left hand steps

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
