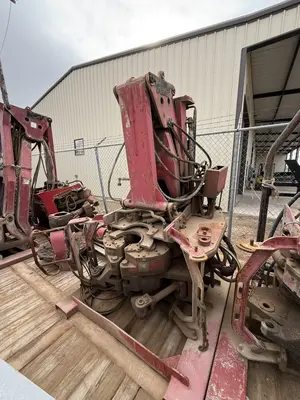

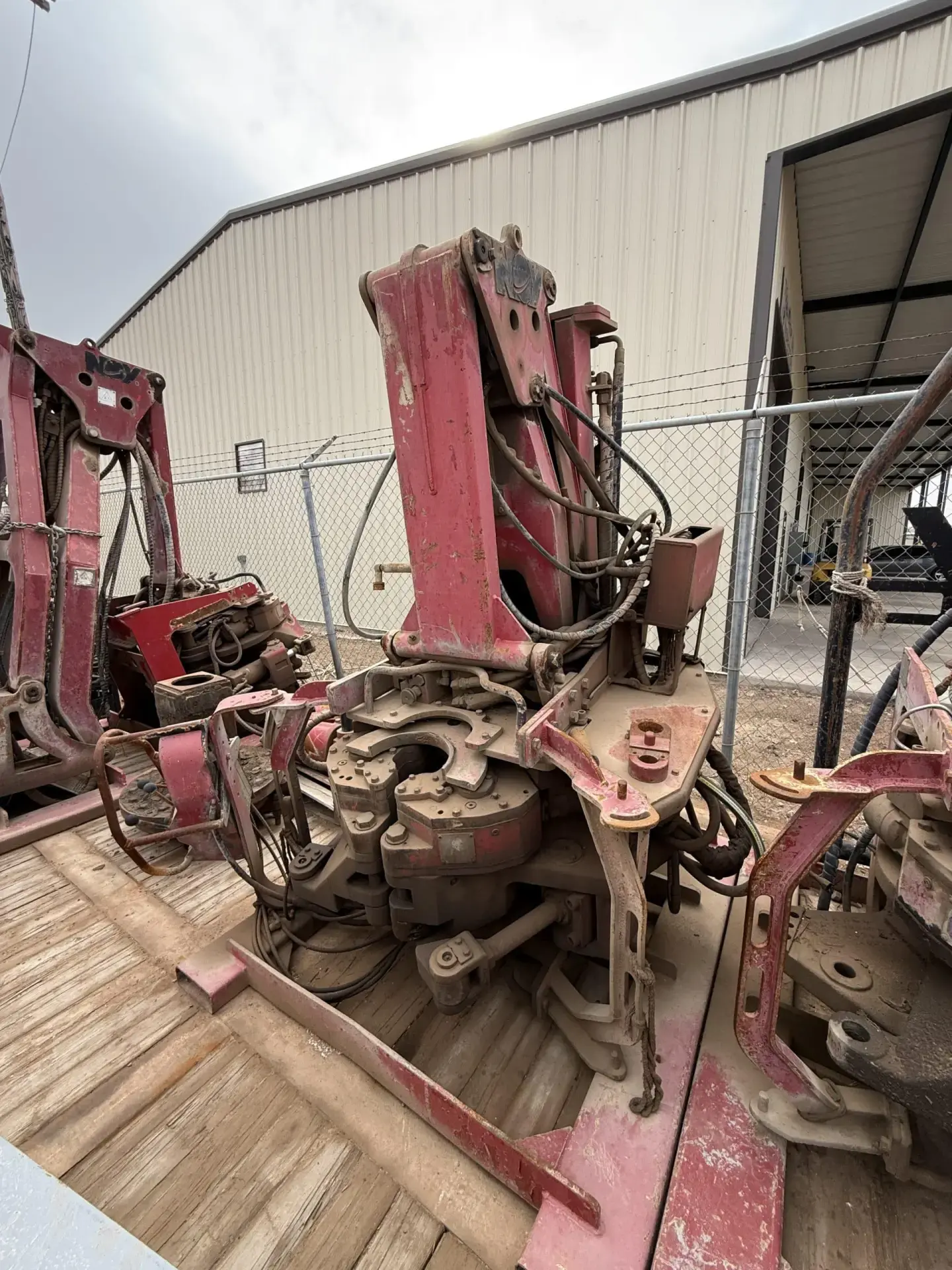

NOV ST80C Iron Roughneck

Tool Joint Connection Range: 2⅞ to 8½ inches
Maximum Make-up Torque: 60,000 ft-lb (81,349 N·m)
Maximum Break-out Torque: 80,000 ft-lb (108,465 N·m)
Spin Speed: 75 RPM (nominal on 5-inch drill pipe)
Spin Torque: 1,750 ft-lb (2,373 N·m)
Connection Height Range: 23 to 59 inches (584 to 1,498 mm)
Horizontal Travel: 60 inches (1,524 mm)
Vertical Adjustment: 36 inches (914 mm) or 72 inches (1,828 mm)
Pedestal Rotation: ±90° (manual)
Assembly Weight: Approximately 7,800 lbs (3,538 kg)
