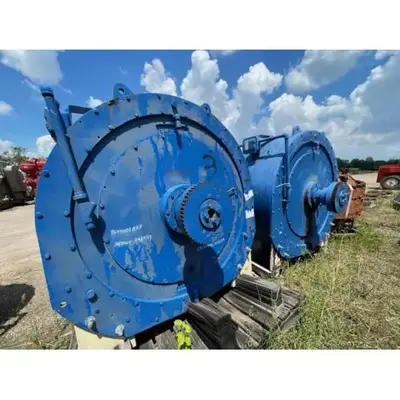

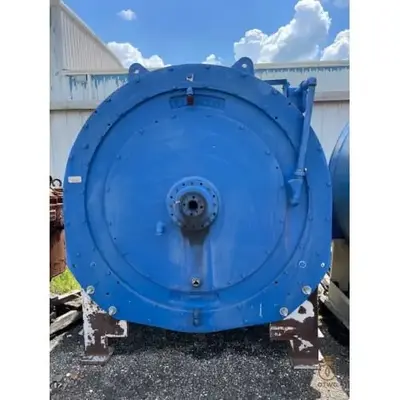

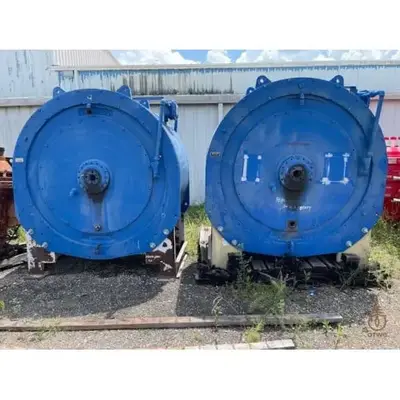

7838W Elmagco Drawworks Brake

General Description
• A friction-type brake assembly engineered for use on drawworks systems in oil and gas drilling.
• Provides rapid and consistent braking to control the cable or drill string under high-load conditions.
Performance Parameters
• Rated Torque Capacity:
 – Typically engineered to handle torque levels in the range of approximately 25,000–35,000 lb‑ft
  (actual values depend on the rig configuration and operating conditions)
• Operating Speed:
 – Optimized for low‐speed operations common in drawworks, generally up to around 600 rpm
• Hydraulic Actuation Pressure:
 – Activated via a hydraulic circuit, usually operating in the 2000–3000 psi range for consistent, repeatable performance
Construction & Materials
• Materials:
 – Constructed from high‑strength, heat‑treated alloy or carbon steel for durability
 – Friction surfaces are typically treated with advanced composite or friction materials to ensure uniform engagement and long wear life
• Design Features:
 – Incorporates integrated cooling or venting features (such as fins or vented brake drums) to dissipate heat during prolonged operations
 – Engineered to maintain even pressure distribution across the friction surfaces for smooth engagement/disengagement
Integration & Maintenance
• Interface:
 – Precisely machined mounting and drive faces ensure compatibility with standard drawworks components
• Serviceability:
 – Designed for ease of inspection and routine maintenance, helping to reduce downtime on high-cycle drilling rigs
Applications
• Critical for well control and cable handling in drawworks systems on deep-well and directional drilling rigs
• Suitable for use in high-cycle, high-torque applications where rapid, reliable braking is essential
