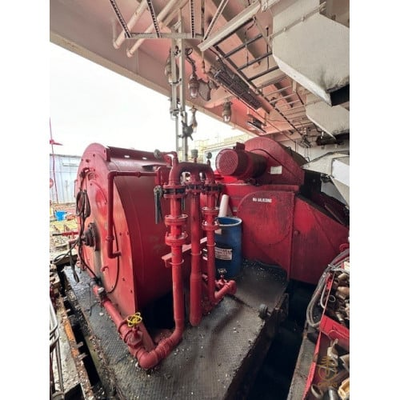

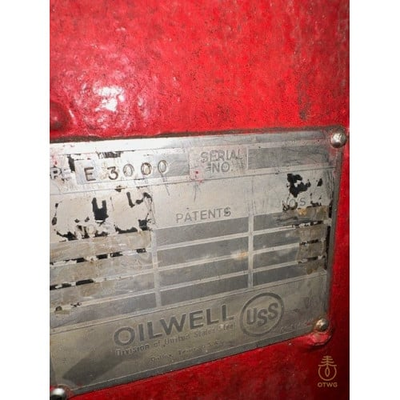

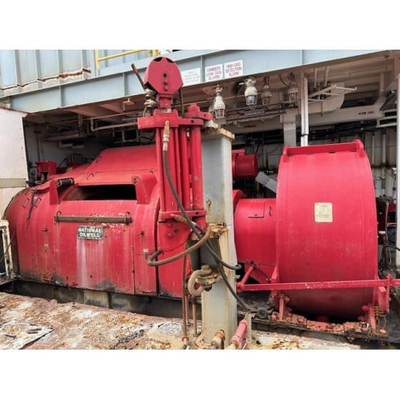

E3000 OilWell Drawworks

Engine & Power System
• Engine Rating: Approximately 3000 HP diesel engine
• Drive System: Integrated heavy‑duty AC drive system engineered for continuous, high‑power output and fuel efficiency
Torque & Pullback Capacity
• Torque Output: Typically delivers between 45,000 to 50,000 lb‑ft of torque
• Pullback (Line Pull) Capacity: Engineered for pullback forces in the range of about 300–350 tons (roughly 600,000–700,000 lbs), ensuring effective handling of long drill strings
Drum & Cable Handling
• Drum Diameter: Generally around 30–36 inches, optimized for efficient cable management
• Cable Speed: Operates at controlled speeds (typically 40–60 ft/min) to provide smooth, gradual cable movement
• Cable Capacity: Designed to handle high-cycle operations with long cable spans
Clutch & Brake System
• Clutch System: Features a multi‑plate low‑speed clutch designed for smooth engagement/disengagement under heavy loads
• Brake Assembly: Integrated friction brake system for rapid, secure deceleration and controlled cable handling
• Thermal Management: Engineered with heat‑dissipating components to maintain performance during extended drilling cycles
Control & Monitoring
• Digital Control Interface: Provides real‑time monitoring of key parameters (torque, drum speed, hydraulic pressure) and allows precise adjustments
• Safety Features: Incorporates overload protection and automated shutoff systems for safe, reliable operation
Construction & Durability
• Materials: Constructed from high‑strength, heat‑treated alloy steel and other durable components to withstand harsh drilling environments
• Design: Engineered for long service life and minimal downtime, with ease‑of‑maintenance features built into the design
Overall System Parameters
• Total Weight: Typically in the range of 60,000–70,000 lbs, ensuring stability during high‑load operations
• Footprint & Dimensions: Designed for a compact and stable installation on drilling rigs while providing robust performance under dynamic loads
• Operating Environment: Suitable for deep-well, directional drilling applications with high cyclic duty and elevated pressures
