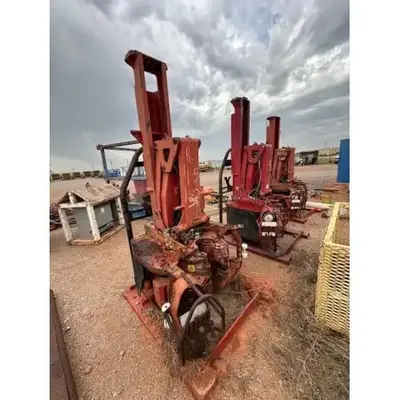

NOV ST80C Tall Column Iron Roughneck

Installation Weight: Approximately 7,800 lbs (3,538 kg).
Tubular Connection OD Range: 4.25 inches to 8.50 inches.
Spin Speed: 75 RPM (nominal on 5-inch drill pipe).
Spin Torque: 1,750 ft-lbs (2,373 Nm).
Maximum Make-up Torque: 60,000 ft-lbs (81,500 Nm).
Maximum Break-out Torque: 80,000 ft-lbs (108,500 Nm).
Horizontal Adjustment: 60 inches (1,524 mm).
Vertical Adjustment: 72 inches (1,828 mm).
Connection Height Range: 23 inches to 59 inches (584 mm to 1,498 mm).
Hydraulic Requirements:
Minimum: 28 GPM @ 2,100 psi (106 LPM @ 145 bar).
Maximum: 40 GPM @ 3,000 psi (151 LPM @ 207 bar).
