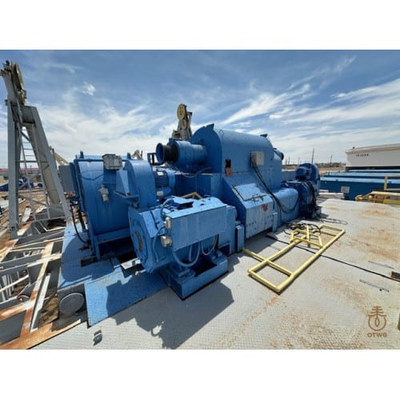

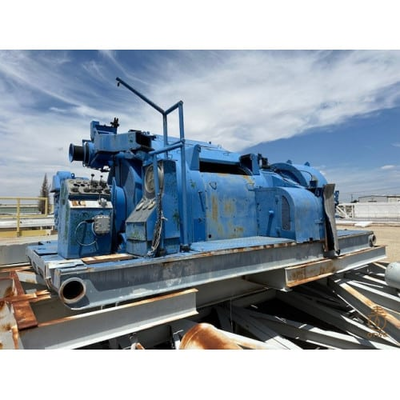

E2000 OilWell Drawworks

Rated Power:
• Approximately 2000 HP
• Driven by a heavy‑duty diesel engine integrated into a robust mechanical/AC drive system
Pullback (Line Pull) Capacity:
• Typically rated in the range of about 220–250 tons (approximately 440,000–500,000 lbs of force)
Torque Output:
• Designed to deliver roughly 35,000–40,000 lb‑ft of torque for smooth, controlled cable handling

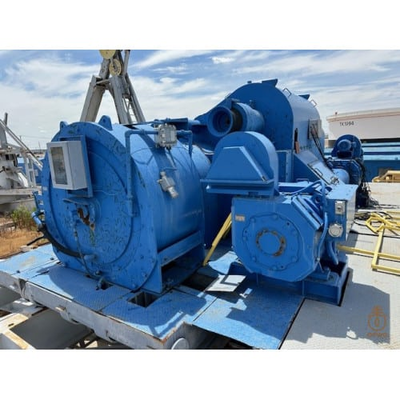

Drum & Cable Handling:
• Drum Diameter: Approximately 30–36 inches, optimized for maximum cable capacity
• Cable Speed: Operates at low speeds (around 40–60 ft/min) for steady, safe handling during drilling operations
Clutch & Brake System:
• Integrated multi‑plate low‑speed clutch for precise power transmission

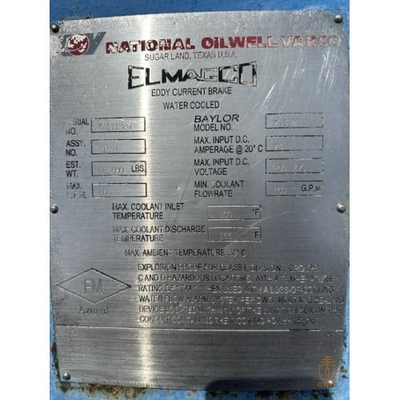

• High‑performance friction brake assembly engineered for rapid deceleration and reliable cycle life
Hydraulic System:
• Operating Pressure: Approximately 2500 psi
• Hydraulic Flow Rate: In the vicinity of 50 gallons per minute (gpm) for responsive control

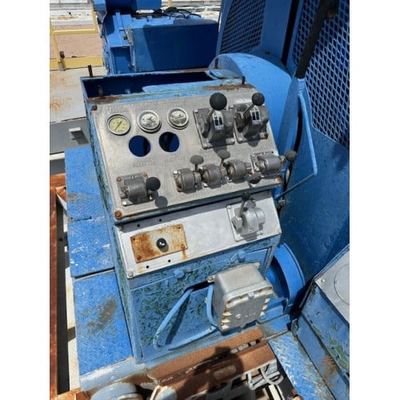

Control & Monitoring:
• Equipped with a digital control panel that monitors torque, drum speed, and hydraulic parameters
• Integrated overload and safety protections to ensure smooth, secure operation
Construction & Materials:
• Fabricated from high‑strength, heat‑treated steel and other robust materials to withstand harsh drilling environments
• Engineered for extended service life and ease of maintenance
Overall Weight & Footprint:
• Total system weight typically falls in the 40,000–50,000 lb range, depending on configuration
• Designed with a compact footprint for optimal integration on drilling rigs
Applications:
• Ideal for deep-well and directional drilling operations
• Suited for rigs where high pullback capacity, precise torque control, and reliable cable handling are critical
