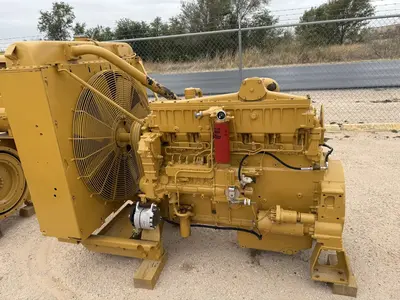

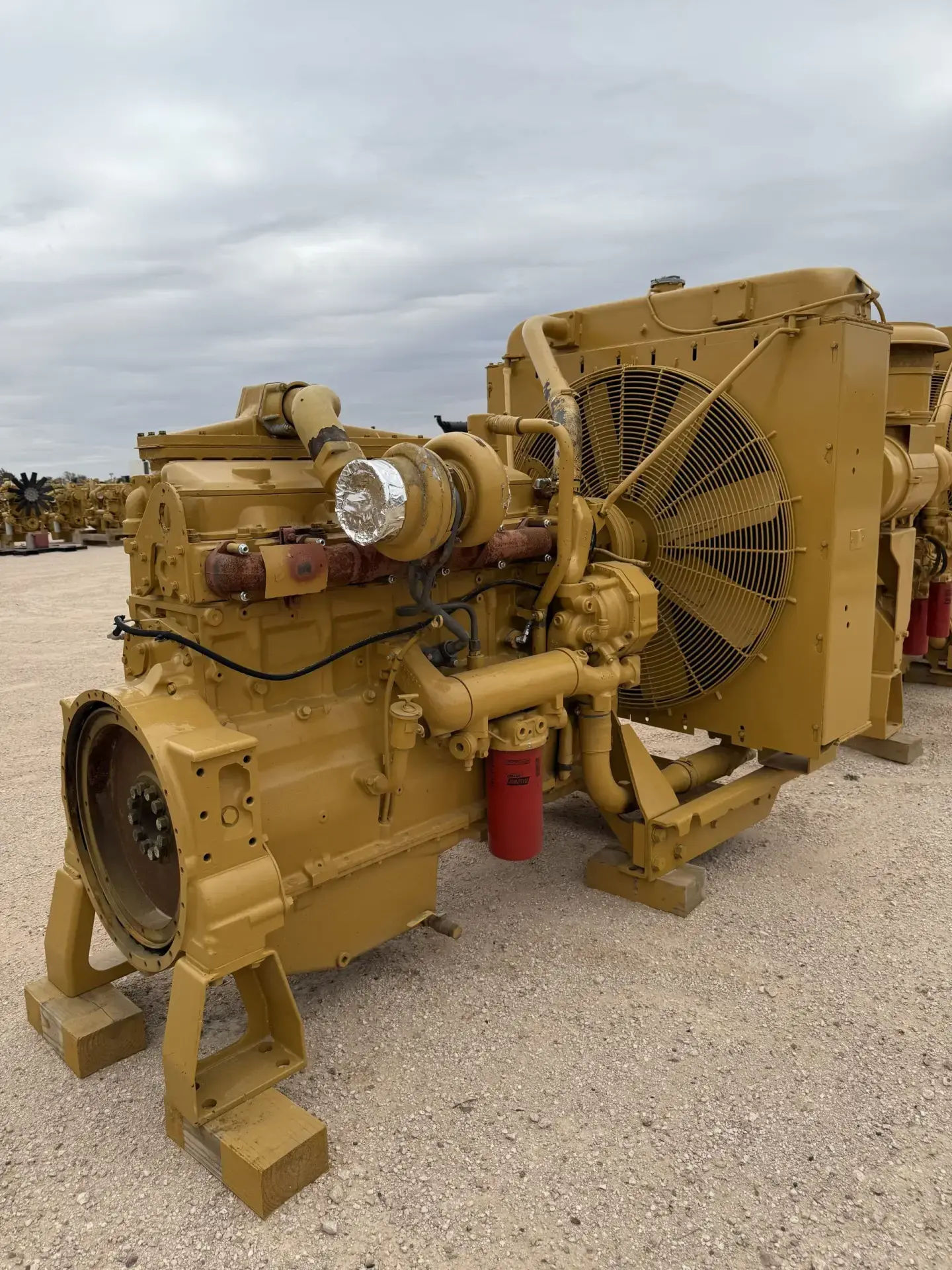

Rebuilt 3406 CAT Engine
Overview
General Specifications:
Performance Ratings:
Physical Dimensions:
Specs
Engine Configuration: Inline 6-cylinder, 4-stroke-cycle diesel
Displacement: 14.6 liters (893.4 cubic inches)
Bore: 137 mm (5.4 inches)
Stroke: 165 mm (6.5 inches)
Compression Ratio: 14.5:1
Aspiration: Turbocharged Aftercooled
Rotation (from flywheel end): Counterclockwise
Maximum Power: 465 hp (347 kW)
Minimum Power: 375 hp (280 kW)
Rated Speed: 1,800-2,100 rpm
Maximum Torque: 1,602 lb-ft (2,172 Nm) at 1,350 rpm
Length: 65.4 inches (1,660 mm)
Width: 35.7 inches (906 mm)
Height: 52.6 inches (1,335 mm)
Weight (Net Dry): 2,866 lbs (1,300 kg)
