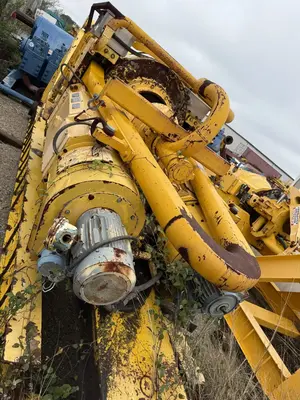

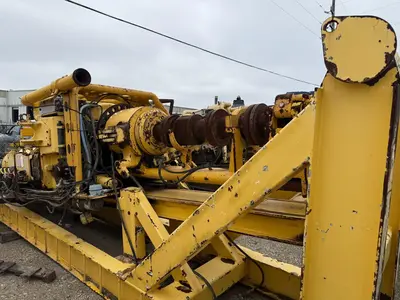

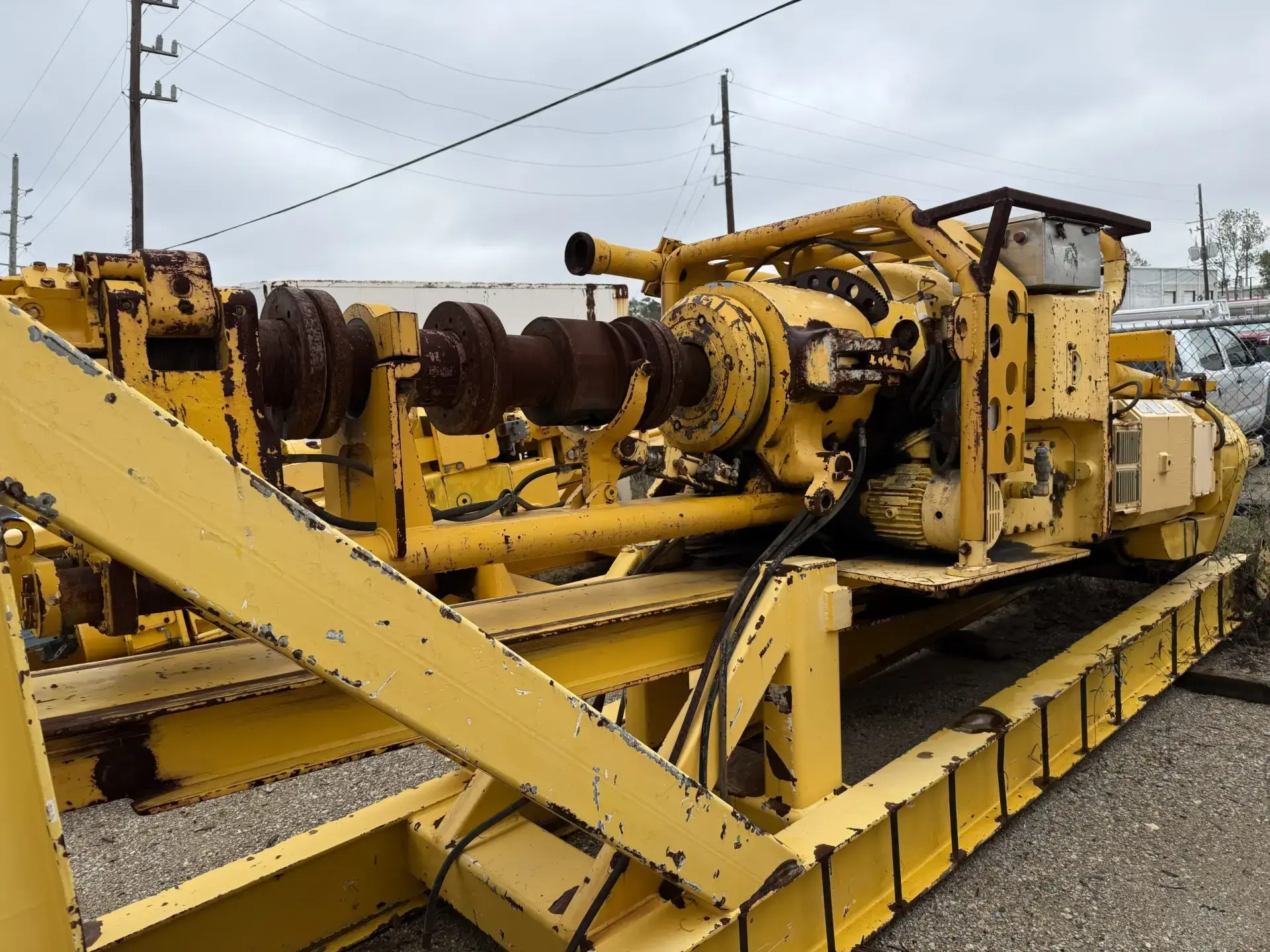

NOV TDS9 Top Drive
Overview
Specs
Hoisting Capacity: 400 tons
Horsepower: 700 HP (2 × 350 HP motors)
Continuous Drilling Torque: 36,000 ft-lb
Maximum Speed: 180 RPM
Working Pressure: 7,500 psi
Main Shaft Water Course Diameter: 3 inches
Integrated Blowout Preventer (IBOP) Pressure Rating: 15,000 psi
Pipe Handler: PH-85
Breakout Torque Capacity: 85,000 ft-lb
Drill Pipe Range: 2⅞ inches to 5½ inches
Connection Outer Diameter: 4 inches to 6⅝ inches
Upper IBOP Connection: 6⅝ inches API Reg. RH Box (remote operated)
Lower IBOP Connection: 6⅝ inches API Reg. RH Pin/Box (manual)
Rotation/Orientation: 360°/Unlimited
Cooling System: Local Blower
Hydraulic Power: HPU Required
Temperature Range: -20°C to +45°C (-4°F to +113°F)
Casing Running Tool Ready: No
Elevator Links: 400 ton API
