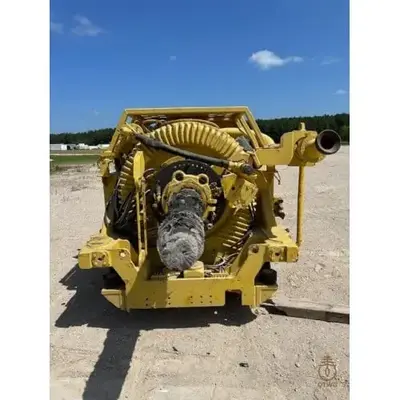

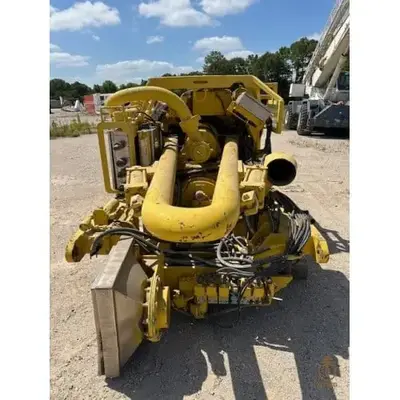

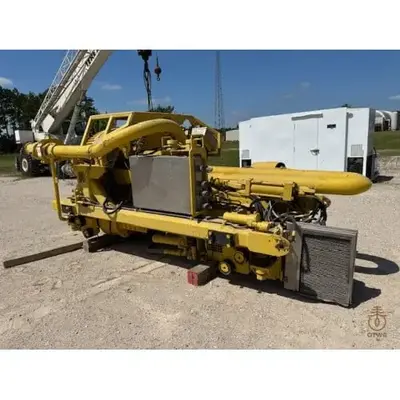

NOV TDS8 Top Drive
Overview
Specs
Hoisting Capacity: 750 tons
Horsepower: 1,150 HP
Maximum Continuous Torque: 62,250 ft-lb (84,399 N-m)
Maximum Speed: 270 RPM
Gear Ratio: 8.5:1
Working Pressure: 7,500 psi
Main Shaft Water Course Diameter: 3.82 inches (97 mm)
Integrated Blowout Preventer (IBOP) Pressure Rating: 15,000 psi (1,034 bar)
Pipe Handler: PH-100
Breakout Torque Capacity: 103,000 ft-lb (139,649 N-m)
Drill Pipe Range: 3½ inches to 6⅝ inches (88.9 mm to 168.2 mm)
Connection Outer Diameter: 4 inches to 8⅝ inches (101.6 mm to 215.9 mm)
Upper IBOP Connection: 7⅝ inches API Reg. RH Box (remote operated)
Lower IBOP Connection: 7⅝ inches API Reg. RH Pin/Box (manual)
Rotation/Orientation: 360°/Unlimited
Cooling System: Local Blower
Hydraulic Power: HPU Required
Temperature Range: -20°C to +45°C (-4°F to +113°F)
Casing Running Tool Ready: Yes
Elevator Links: 350, 500, or 750 ton API
