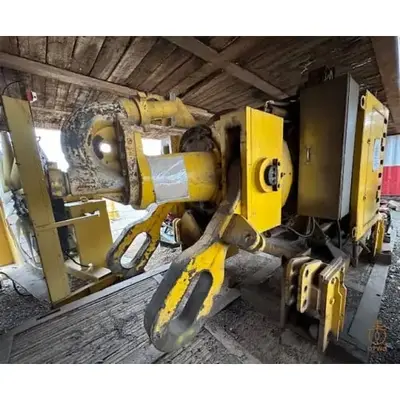

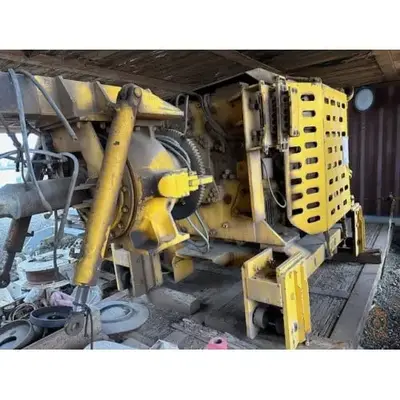

LeTourneau Direct Top Drive 500 Ton
Overview
Specs
Load Capacity: 500 tons
Drilling Speed Range: 0 to 240 RPM
Continuous Drilling Torque: 47,500 ft-lbs
Intermittent Torque: Up to 72,000 ft-lbs
Power Output: 3,000 HP continuous from 150 to 350 RPM
Mud Passage Diameter: 4 inches
Working Pressure: 7,500 psi
Integrated Blowout Preventers (IBOPs): 15,000 psi air-actuated upper and manual-operated lower
Main Shaft Connection: 8 5/8" regular RH pin rotary stem
Height: Approximately 24 feet
Width: 5 feet
Depth: 5 feet
Weight: Approximately 40,000 lbs
