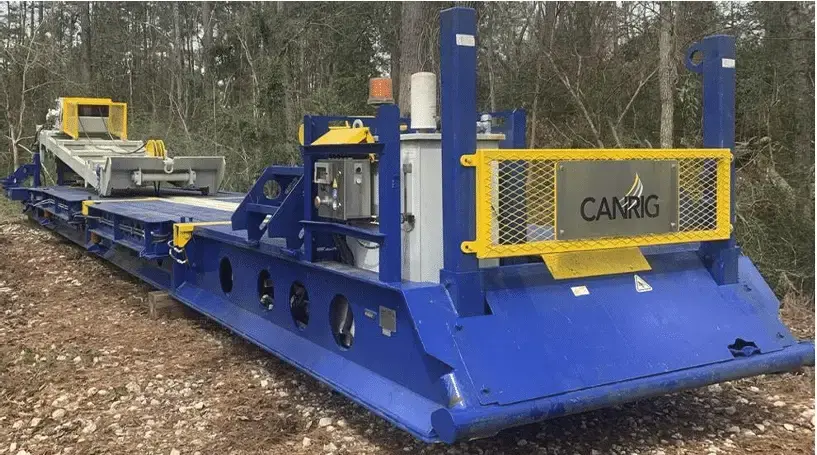

Canrig Catwalk PC3000
Specs
Tubular Length Maximum : 45 ft – Range 3 Single (13,716 mm – Range 3 Single)
Tubular OD Maximum: 20 in (508 mm)
Tubular Weight Maximum: 10,000 lbs (4,535 kg)
Cycle Time: 20 – 50 seconds
Drill Floor Height Range: 18 ft to 35 ft (5,486 mm to 10,688 mm)
Catwalk Deck Height : 26 in (660 mm)
Working Dimensions: 26 in H × 28 ft 2 in W × 68 ft 2 in L (660 mm × 8,687 mm × 20,777 mm)
Transport Dimensions: 9 ft 9 in H × 9 ft 7 in W × 61 ft 5 in L (2,972 mm × 2,921 mm × 18,720 mm)
Weight Total: 60,000 lbs (27,515 kg)
Standard HPU Drive System: Electric
Supply Power Required (Option 1): 480V / 85 AMP
