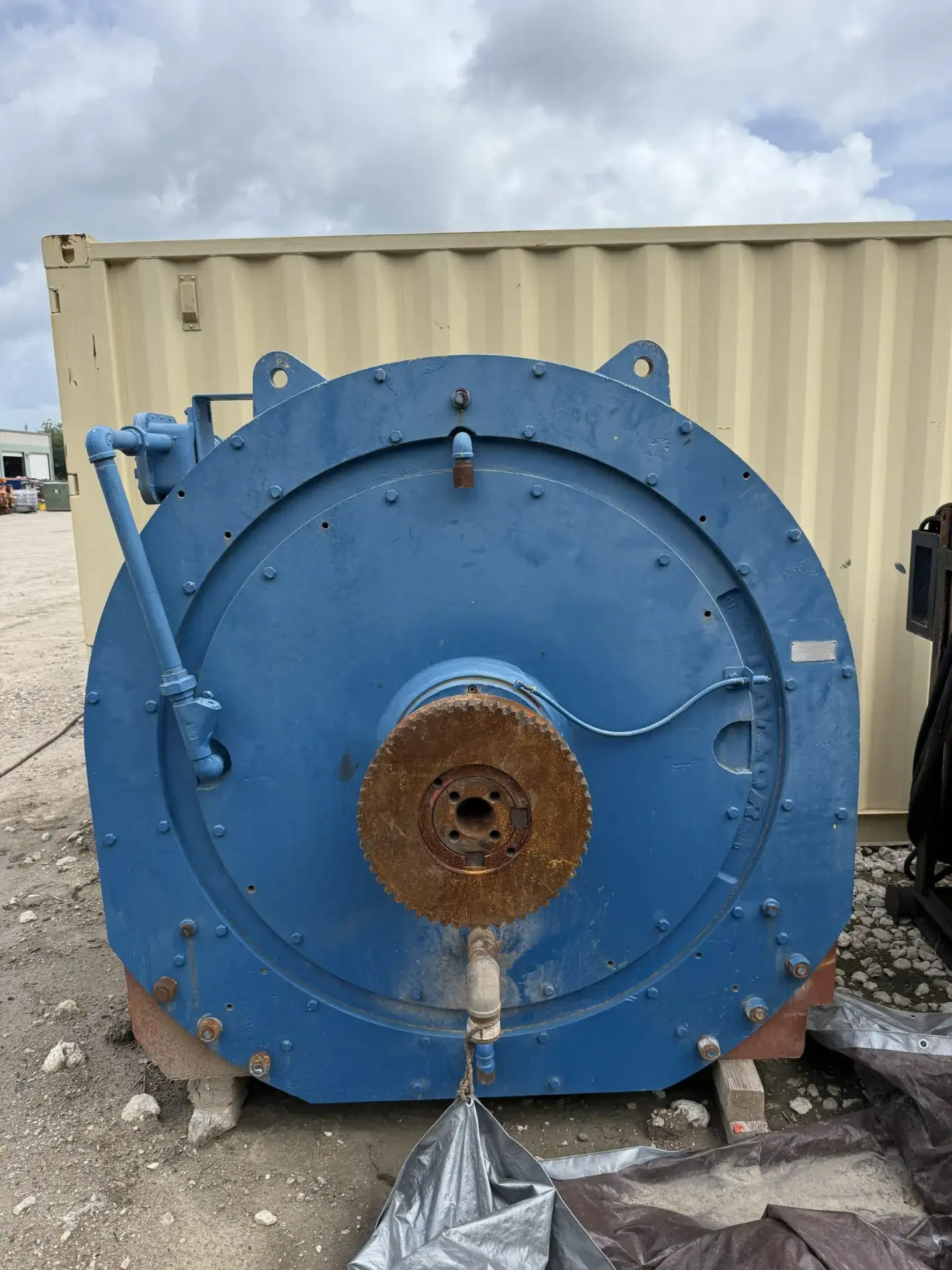

USED NOV ELMAGCO EDDY CURRENT BRAKE (WATER COOLED)

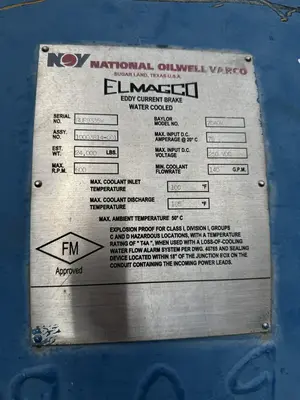

Manufacturer: National Oilwell Varco (NOV)
Location: Texas, U.S.A.
Model: Elmagco Eddy Current Brake (Water Cooled)
Serial No.: RUF9335W
Assembly No.: 10003814-001
Estimated Weight: 24,000 lbs
Maximum RPM: 600
Maximum Input D.C. Amperage @ 20°C: 78 A
Maximum Input D.C. Voltage: 250 VDC
Minimum Coolant Flowrate: 140 GPM
Maximum Coolant Inlet Temperature: 100°F
Maximum Coolant Discharge Temperature: 165°F
Maximum Ambient Temperature: 50°C
Explosion Proof Rating:
Class: I
Division: 1
Groups: C and D Hazardous Locations
Temperature Rating: T4A
Special Note: Must be used with a loss-of-cooling water flow alarm system (per DWG. 4765) and a sealing device located within 18" of the junction box on the conduit containing the incoming power leads.
FM Approved: Yes
