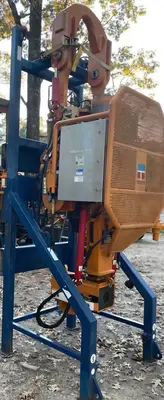

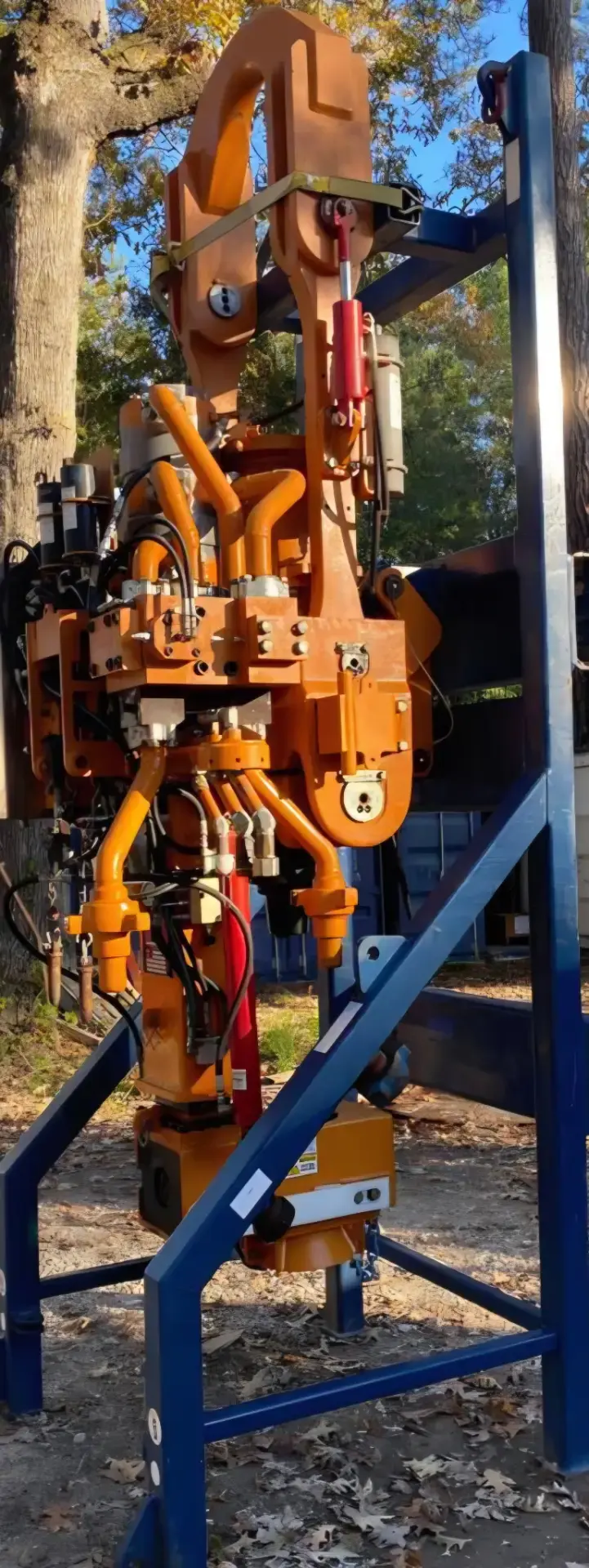

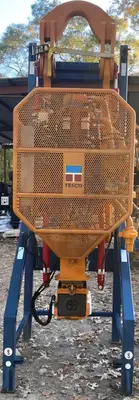

Surplus New Tesco Top Drive 150 HXI 700

High Torque Output
High Torque Output
Versatile Design Eases Rig Up/Down
Versatile Design Eases Rig Up/Down
Service Rig Integrations
Service Rig Integrations
Combine with the CCDS™ for the Ultimate Compact Solution
Combine with the CCDS™ for the Ultimate Compact Solution
25T Pull Down While Rotating
25T Pull Down While Rotating
Integrates Into Existing Rig Hydraulic System
Integrates Into Existing Rig Hydraulic System
Dolly System Integrations
Dolly System Integrations
Width: 55 in. / 1,397 mm
Width: 55 in. / 1,397 mm
Depth: 30.5 in. / 775 mm
Depth: 30.5 in. / 775 mm
Secondary Depth: 24.5 in. / 622 mm
Secondary Depth: 24.5 in. / 622 mm
Height: 48.5 in. / 1,232 mm
Height: 48.5 in. / 1,232 mm
Full Height: 108 in. / 2,743 mm to 156 in. / 3,962 mm
Full Height: 108 in. / 2,743 mm to 156 in. / 3,962 mm
Links: 84 in. / 2,134 mm
Links: 84 in. / 2,134 mm

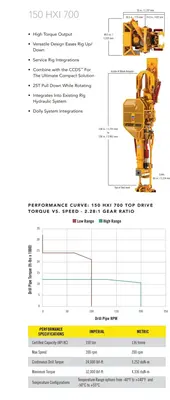

150 HXI 700 Top Drive Torque vs. Speed – 2.28:1 Gear Ratio
Low Range: Up to ~32,000 lbf-ft torque at lower RPM
Low Range: Up to ~32,000 lbf-ft torque at lower RPM
High Range: Steady ~12,000 lbf-ft torque with higher RPM capability (~200 RPM max)
High Range: Steady ~12,000 lbf-ft torque with higher RPM capability (~200 RPM max)
Certified Capacity (API 8C): 150 ton (136 tonne)
Max Speed: 200 rpm (200 rpm)
Continuous Drill Torque: 24,000 lbf-ft (3,252 daN·m)
Maximum Torque: 32,000 lbf-ft (4,336 daN·m)
Temperature Configurations:
-40°F to +140°F
-40°F to +140°F
-50°C to +55°C
-50°C to +55°C
