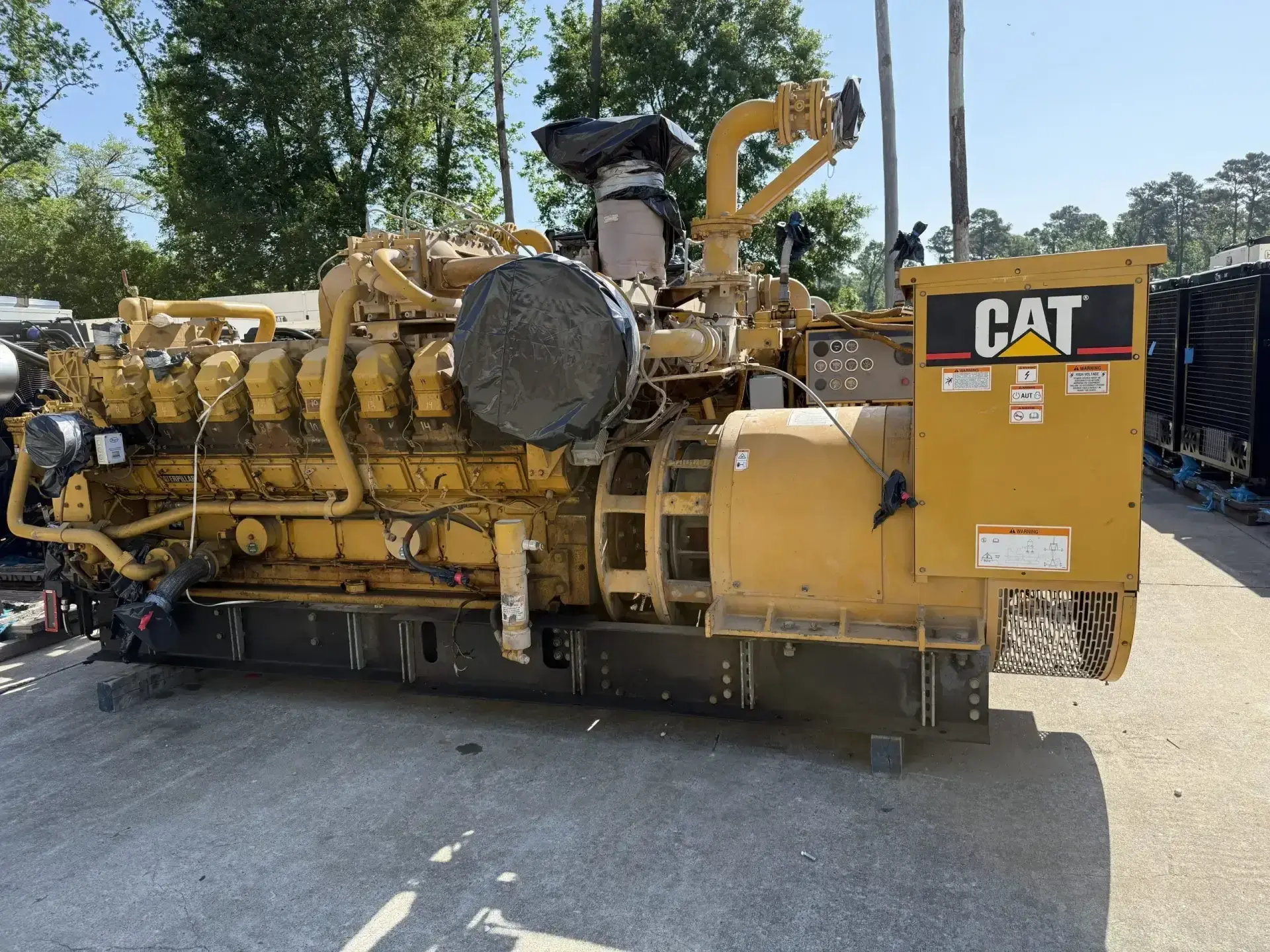

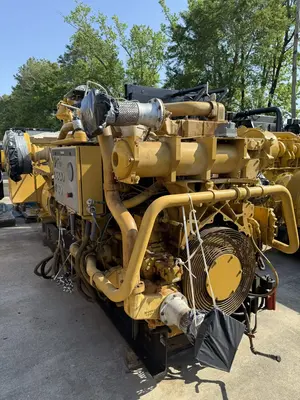

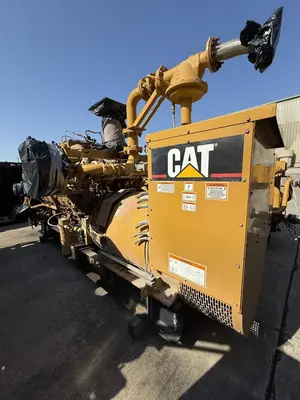

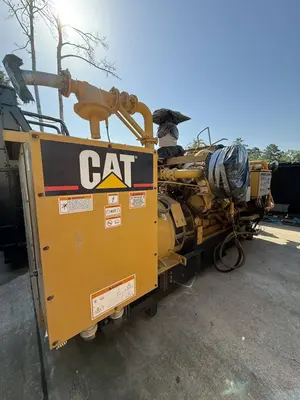

USED CAT CAT 3516

Engine Model: CAT 3516
Configuration: V-16, 4-Stroke-Cycle Gas Engine
Fuel Type: Natural Gas / Biogas / Pipeline Gas / Field Gas
Cooling Method: Radiator or Remote Cooling
Aspiration: Turbocharged-Aftercooled (TA)
Combustion: Lean Burn
Standby Power: 1450 – 2000 ekW (varies by model/configuration)
Continuous Power Output: 1000 – 1750 ekW
Frequency: 50 Hz or 60 Hz
Voltage Options: 400V / 480V / 11kV (depends on alternator setup)
Power Factor: 0.8
Displacement: 69 liters (4210 in³)
Bore x Stroke: 170 mm x 190 mm (6.7 in x 7.5 in)
Compression Ratio: ~11.5:1 (varies with configuration)
Speed: 1500 or 1800 RPM
Governor Type: Electronic (ADEM A3 or A5)
Emissions: Available with NOx ≤ 0.5 g/bhp-hr configurations
Electrical Efficiency: Up to 43.5% (depending on gas quality and model)
Thermal Efficiency (CHP systems): Can exceed 85% total
Type: Brushless, 3-phase, revolving field
Insulation: Class H
Regulation: ±0.25% Voltage Regulation
Length: ~6.5 m (256 in)
Width: ~2.2 m (87 in)
Height: ~2.9 m (114 in)
Weight (dry): ~20,000 – 22,000 kg (44,000 – 48,500 lbs)
ADEM Engine Control Module
ADEM Engine Control Module
Remote Monitoring Options
Remote Monitoring Options
Jacket Water Heater
Jacket Water Heater
Vibration Isolators
Vibration Isolators
Air Cleaner with Service Indicator
Air Cleaner with Service Indicator
