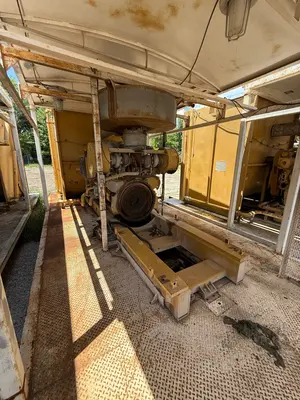

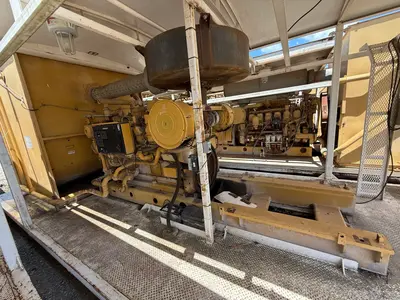

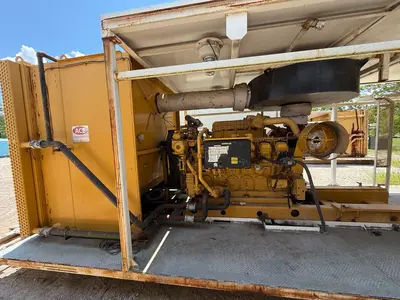

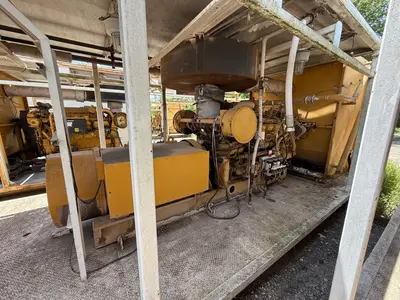

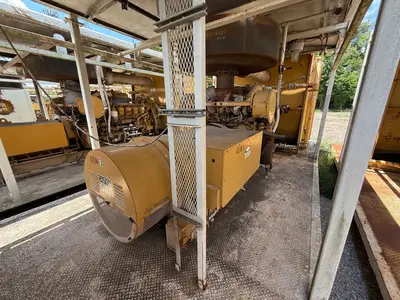

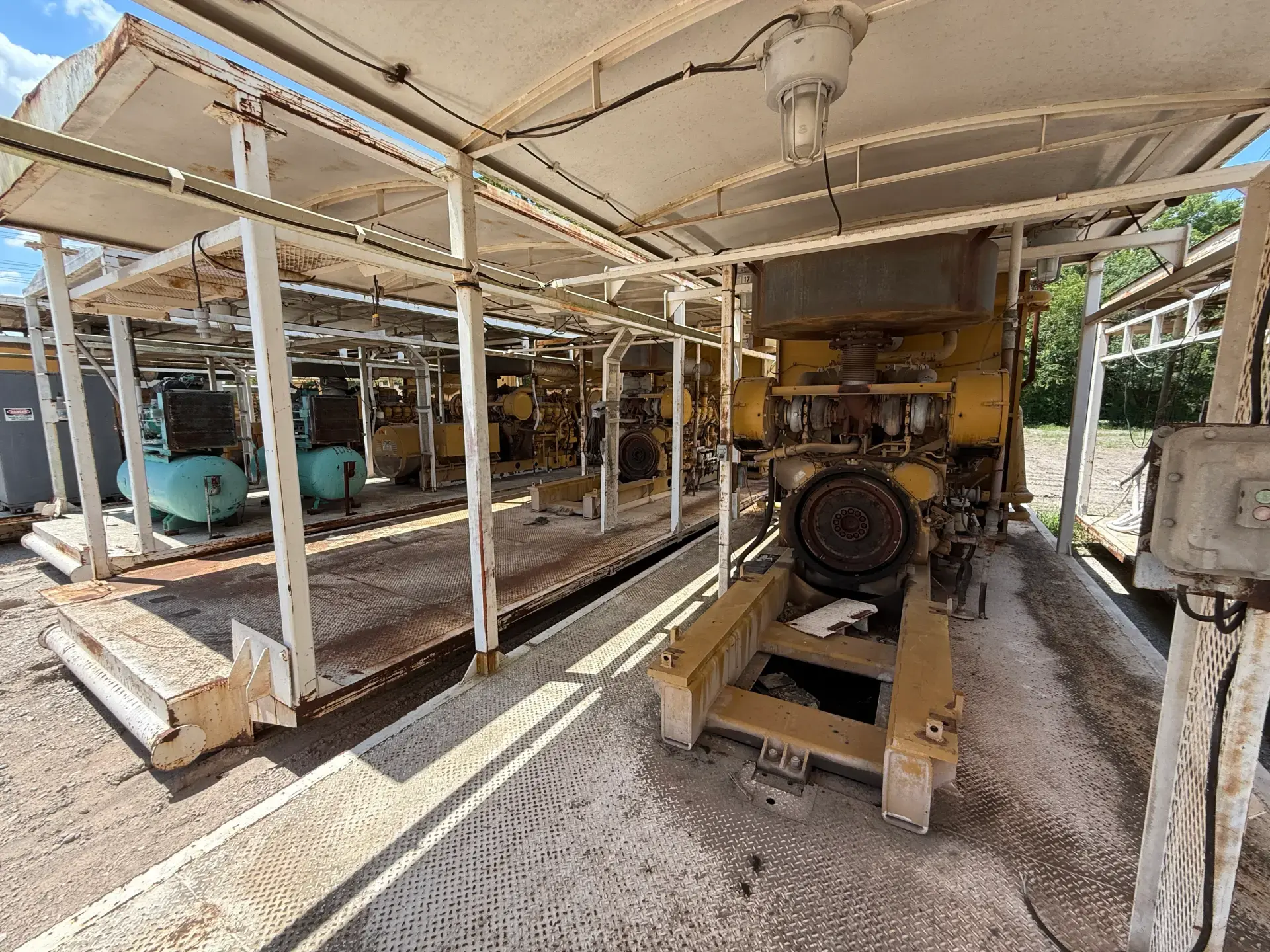

USED CAT CAT 3512B TA, V‑12, FOUR-STROKE, WATER-COOLED DIESEL ENGINE

Standby (Maximum): Up to 1500 ekW / ~1875 kVA
Prime Power: Up to 1360–1275 ekW depending on configuration
These models are built for mission-critical, continuous, standby, and prime applications. They meet ISO 8528‑5 transient response standards and can handle 100% rated load in one step, complying with NFPA 110 requirements.
Model: Cat 3512B TA, V‑12, four-stroke, water-cooled diesel engine
Displacement: ~51.8 L
Bore / Stroke: 170 mm / 190 mm (approx.)
Aspiration: Turbocharged and aftercooled
Compression Ratio: ~14.0:1 (standard); ~15.5:1 (heavy-duty)
Governor: ADEM A3 (electronic)
Fuel System: Electronic unit injection
Length: ~207.8 in (5279 mm)
Width: ~90 in (2286 mm)
Height: ~94.9 in (2409 mm)
Dry Weight (Genset): ~24,297 to ~24,959 lb (11,021 to 11,321 kg)
Low Fuel Consumption and options for Low Emissions
Fast Load Acceptance: Meets ISO 8528‑5 and NFPA 110—handles full load instantly
Rugged, factory-tested design with wide operating temperature range (up to 50 °C ambient)
Superior motor starting capability with optimally matched alternator
Advanced control system: Options like EMCP 4, with ATS, remote monitoring, diagnostics
