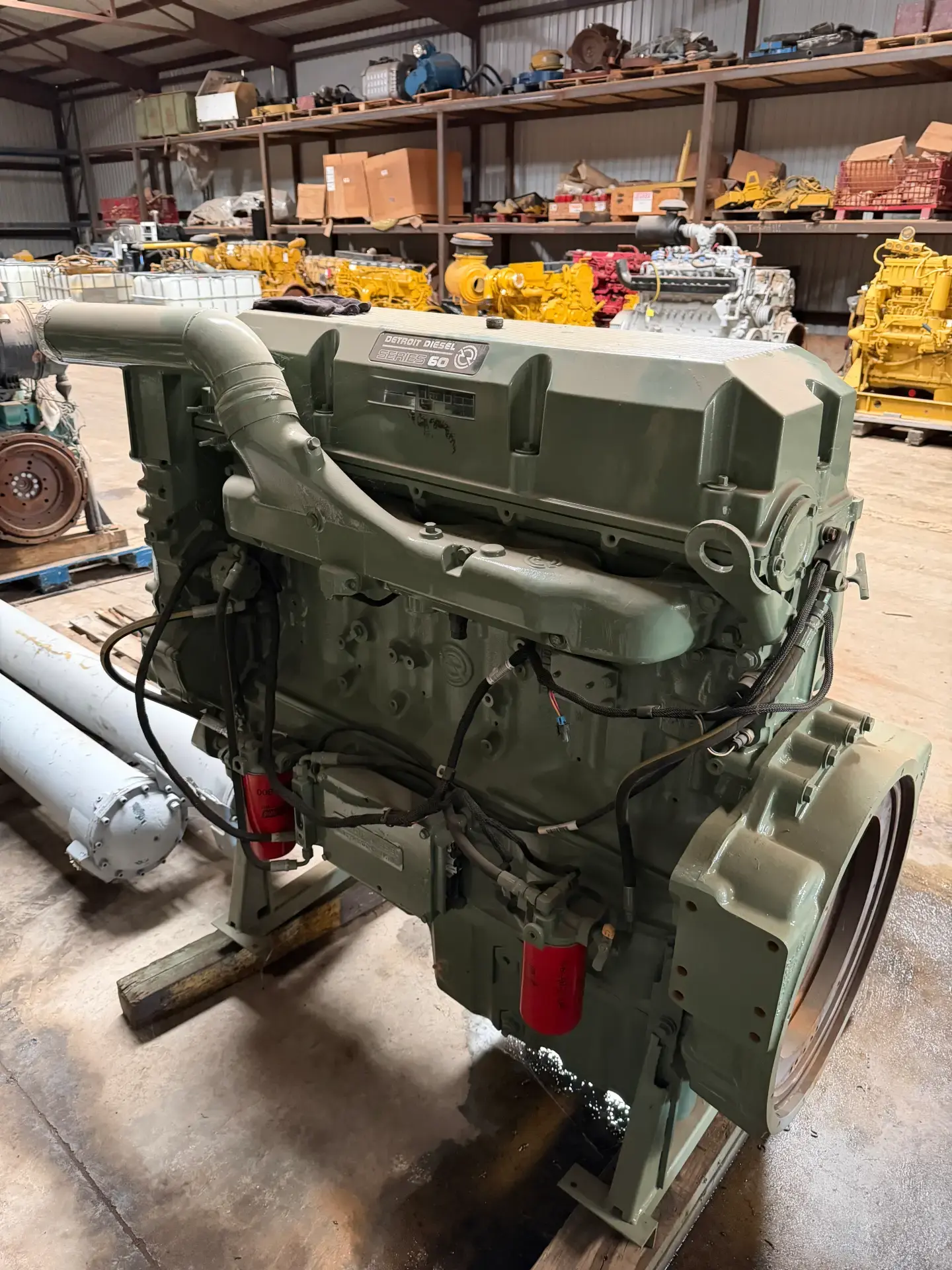

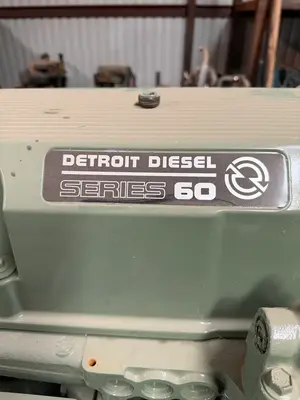

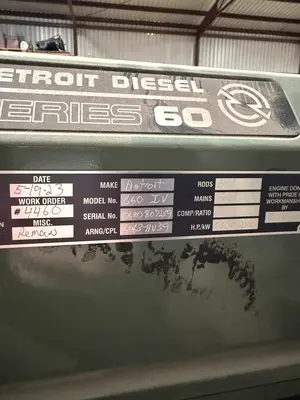

Detroit Diesel Series 60 Engine

Manufacturer: Detroit Diesel
Engine Series: Series 60
Configuration: Inline 6-cylinder
Cycle: 4-stroke, turbocharged & aftercooled
Fuel Type: Diesel
Control: DDEC electronic fuel system
12.7 L (778 cu in) – most common
14.0 L (855 cu in) – heavy-duty / high-output
Industrial / Oilfield Duty:
500 – 700 HP
Common ratings: 550 HP, 600 HP, 635 HP, 700 HP
Rated Speed:
1800 RPM (generator / constant speed)
2100 RPM (pump / mechanical drive)
Peak Torque:
1,650 – 2,050 lb-ft (rating dependent)
Peak Torque RPM: ~1200 RPM
Injection: Electronic Unit Injectors (EUI)
ECM: DDEC III / IV (depending on year)
Fuel Consumption: ~0.33 lb/hp-hr (typical)
Turbocharger: Single turbo
Charge Air Cooling: Air-to-air or jacket-water (package dependent)
Exhaust Temp: ~900–950°F under load
