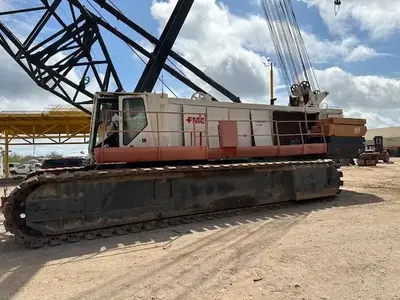

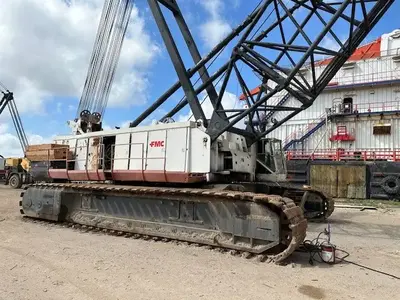

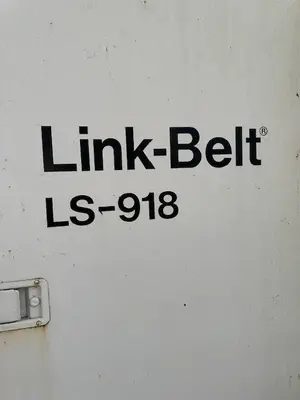

Link Belt LS-918 / 400 Ton crane

Transport (base crane) weight: ~88,305 lb (≈40,055 kg).
Transport (base crane) weight: ~88,305 lb (≈40,055 kg).
Working weight example: ~349,711 lb (≈158,626 kg) including full counterweight “ABCDE + A”, 55-ft basic boom, 27-ft live mast, 200-ton hook block.
Working weight example: ~349,711 lb (≈158,626 kg) including full counterweight “ABCDE + A”, 55-ft basic boom, 27-ft live mast, 200-ton hook block.
Ground bearing pressure in that example: ~14.09 psi (≈0.9915 kg/cm²).
Ground bearing pressure in that example: ~14.09 psi (≈0.9915 kg/cm²).

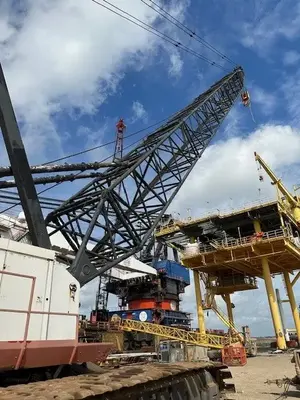

Basic boom: 55 ft (≈16.76 m) two-piece for that configuration
Basic boom: 55 ft (≈16.76 m) two-piece for that configuration
Boom length range (with extensions): up to ~285 ft (≈86.87 m) in some configurations.
Boom length range (with extensions): up to ~285 ft (≈86.87 m) in some configurations.

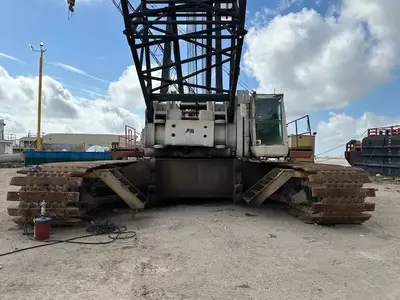

Track shoes: 44 in (≈1.12 m) width in that standard configuration.
Track shoes: 44 in (≈1.12 m) width in that standard configuration.
Transport component weights: Example side frame (44″ track shoes) ~41,400 lb (≈18,779 kg) each in one transport load list.
Transport component weights: Example side frame (44″ track shoes) ~41,400 lb (≈18,779 kg) each in one transport load list.
