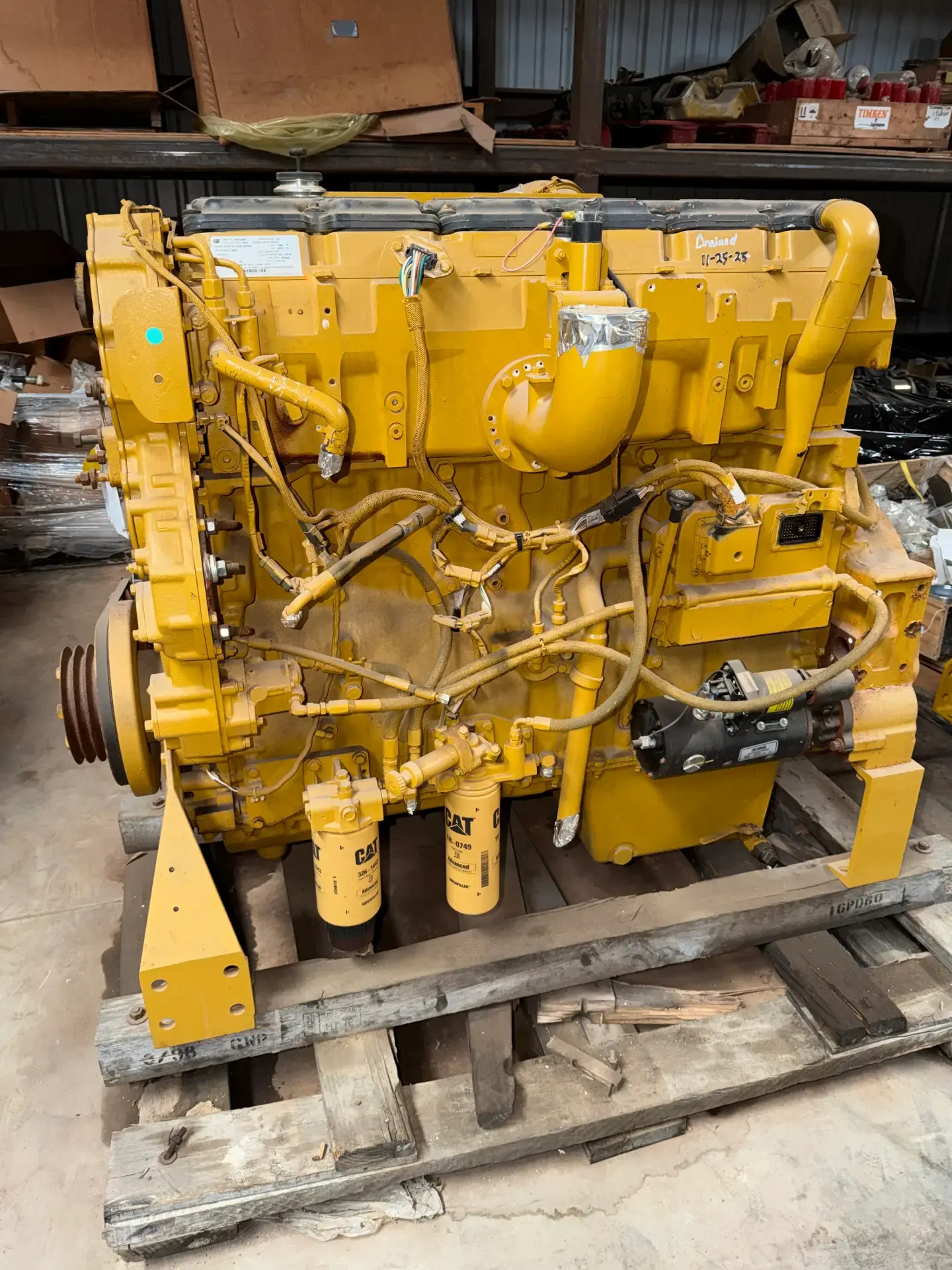

USED CAT C15

Manufacturer: Caterpillar (CAT)
Engine Model: C15

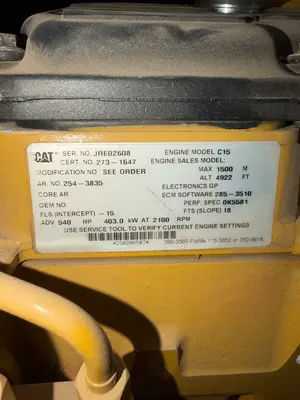

Serial Number: JRE02608
Certification No.: 273-1647
Arrangement No.: 254-3835
Modification No.: See Order
OEM No.: — (not listed)
Advertised Power: 540 HP (403.0 kW)
Rated Speed: 2100 RPM
Fuel Limit Setting (FLS / Intercept): -15
Fuel Torque Slope (FTS): 18
Actual output depends on ECM programming — CAT ET required to verify current settings.
Electronics Group: Electronic
ECM Software: 285-3510
Performance Spec: OK5581
Maximum Operating Altitude: 1,500 m (≈ 4,922 ft)
This is a 540 HP industrial / oilfield-rated C15, not a highway truck rating.
Common applications:

Mud pumps

Hydraulic power units

Generator drives (variable or fixed speed)

Drilling and service equipment
Common applications:
Mud pumps
Mud pumps
Hydraulic power units
Hydraulic power units
Generator drives (variable or fixed speed)
Generator drives (variable or fixed speed)
Drilling and service equipment
Drilling and service equipment
Arrangement 254-3835 is key for:
Parts lookup
Parts lookup
Turbo, cooling, and accessory configuration
Turbo, cooling, and accessory configuration
ECM software confirms ACERT-era electronic C15
