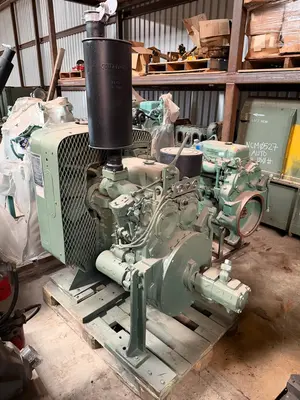

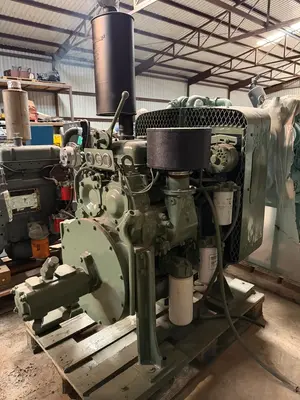

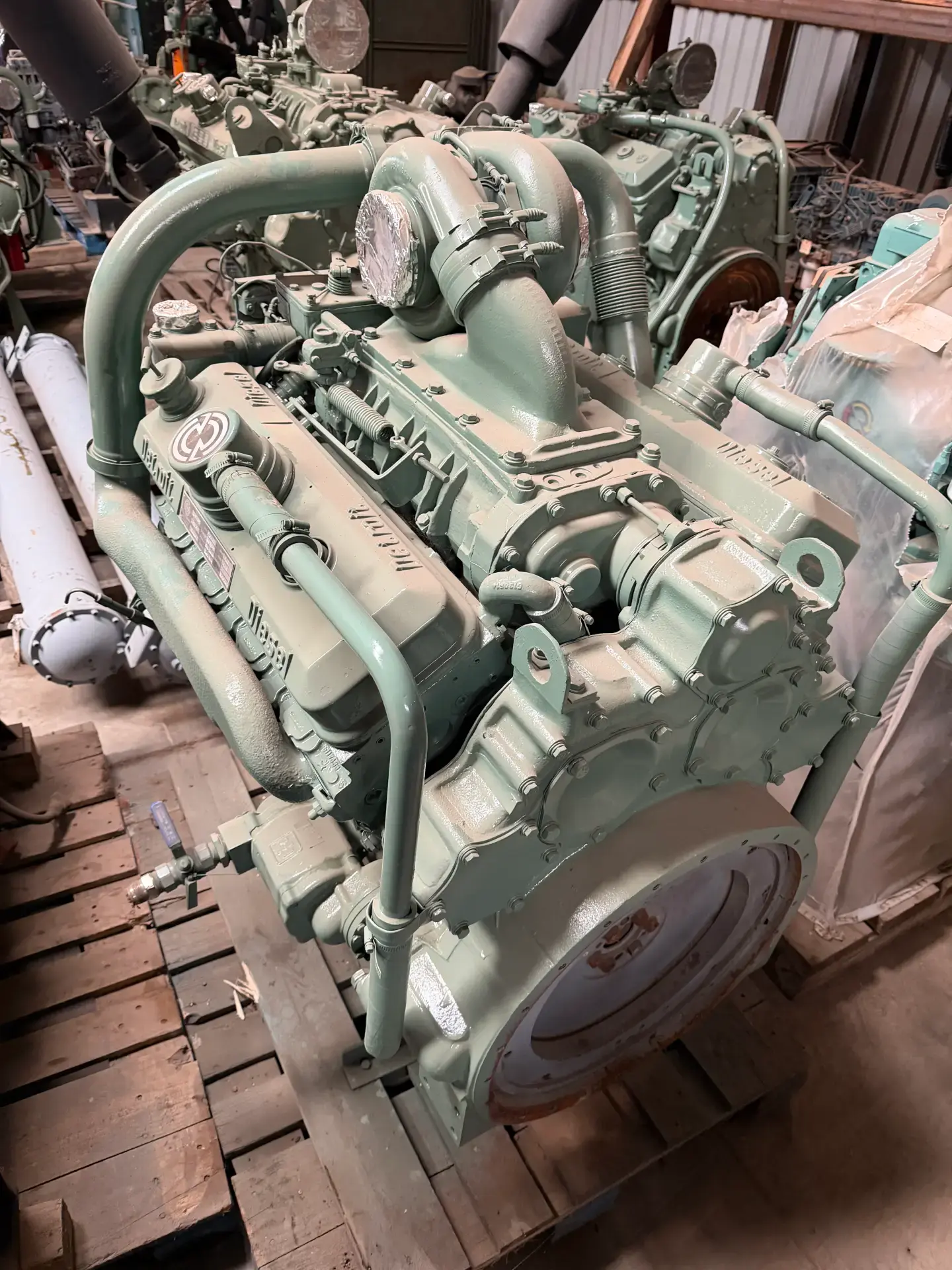

USED DETROIT DIESEL 8V71T (TURBOCHARGED)

Manufacturer: Detroit Diesel
Engine Model: 8V71T (Turbocharged)
Configuration: V-8, 2-stroke
Aspiration: Turbocharged (no aftercooler shown)

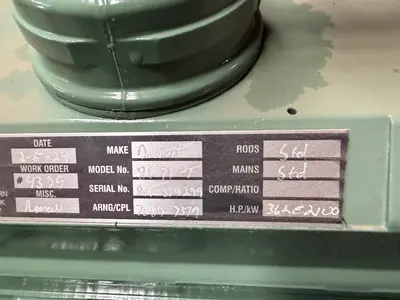

Rebuild Date: 05-05-2024
Work Order: #4394
Condition: Rebuild / Removal noted
Rods: Std
Mains: Std
Rated Power: ~362 HP @ 2100 RPM
(This is a common industrial/oilfield rating for an 8V71T.)
Total Displacement: 9.3 L (568 cu in)
Bore x Stroke: 4.25 in × 5.00 in
Rated Power: 350–365 HP
Rated Speed: 2100 RPM
Idle Speed: ~600 RPM
Torque: ~850–950 lb-ft
Type: Mechanical unit injectors
Governor: Mechanical
Fuel: Diesel
Cooling: Jacket-water cooled
Oil Capacity: ~6.5–7 gallons
Oil Pressure (hot): 40–55 psi
Oil Type: SAE 40 (typical Detroit 2-stroke)
Starting System: 24 VDC
Charging: 24 V alternator
Dry Weight: ~2,100–2,300 lb
Length: ~54 in
Width: ~45 in
Height: ~42 in
Mud pumps (F-800 / F-1000 class)
Mud pumps (F-800 / F-1000 class)
Cementing units
Cementing units
Older blender units
Older blender units
Mechanical frac auxiliaries
Mechanical frac auxiliaries
Water transfer pumps
Water transfer pumps
