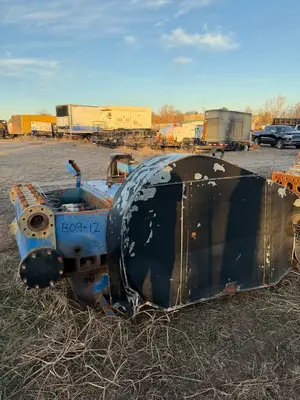

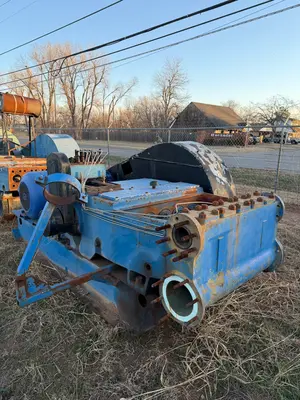

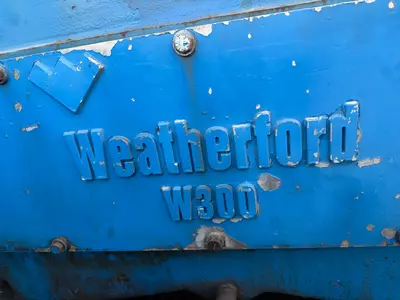

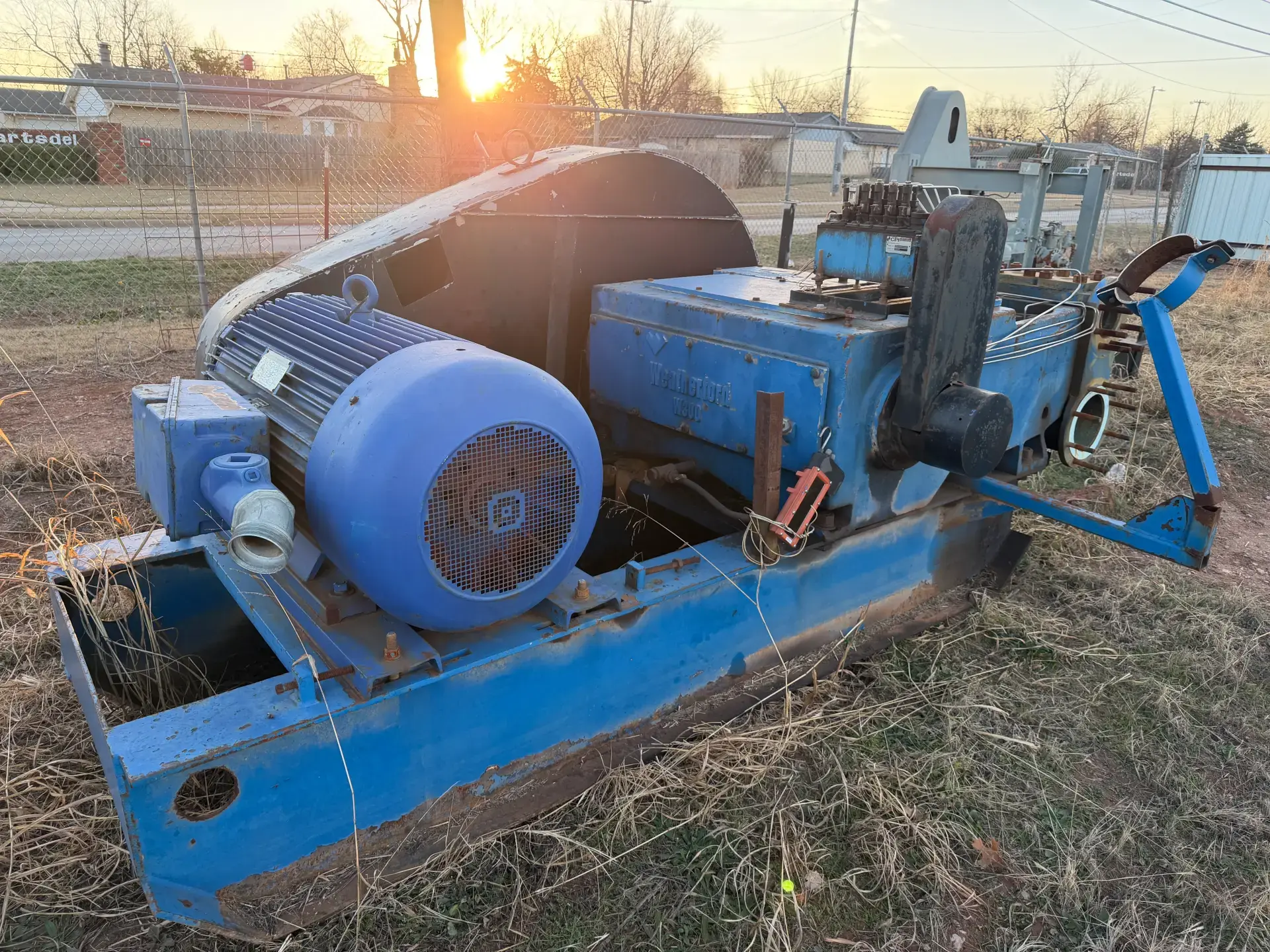

USED WEATHERFORD W300 QUINTUPLEX PUMP

Manufacturer: Weatherford
Model: W300 Quintuplex Pump
Type: Single-acting reciprocating plunger pump (quintuplex)
Service: Continuous duty
Rated Power: 300 HP (224 kW) continuous
Stroke Length: 5.0 in (127 mm)
API Standard: API 674 compliant
Minimum Speed: 100 RPM*
Rated Speed: 310 RPM
Maximum Speed: 400 RPM
*Operation below 100 RPM requires auxiliary lubrication.
Performance varies by plunger diameter and operating speed.
Flow Range: ~19 to ~544 GPM
Maximum Pressure: Up to 5,000 psi (smaller plungers)
Plungers: Tungsten-carbide coated (ceramic or plated optional)
Fluid-End Materials: Carbon steel, duplex stainless steel, or bronze
Packing: Teflon-Kevlar (multiple configurations available)
Power-End Oil Capacity: ~12 gallons
Rated Rod Load: ~10,700 lb
Pump Weight (approx.): 6,750–7,000 lb (configuration dependent)
