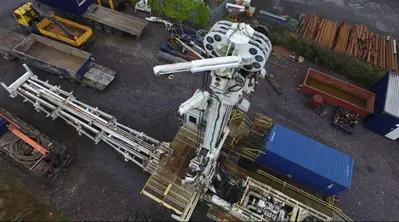

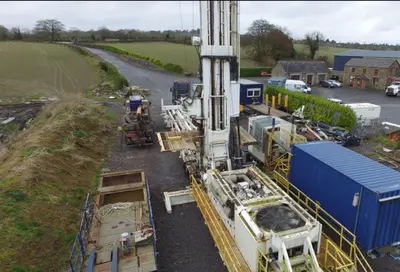

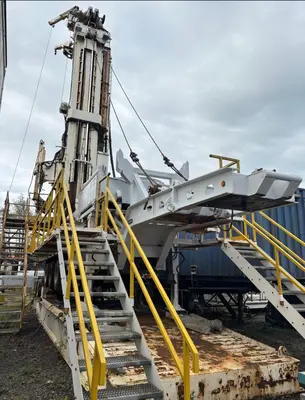

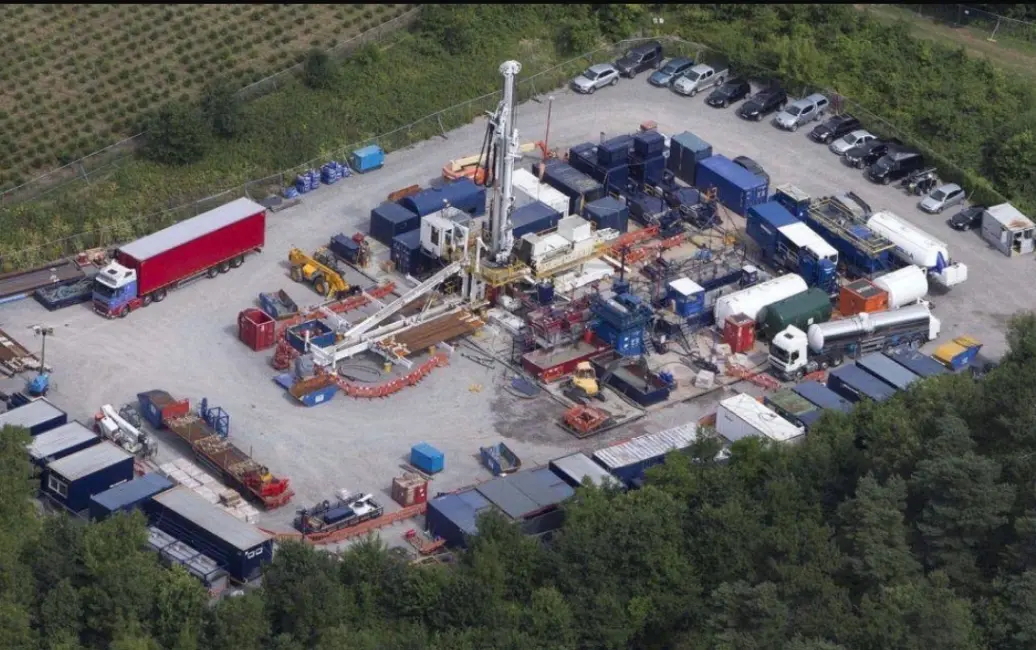

USED 2006 SCHRAMM HYDRAULIC SUPER SINGLE TXD 200

Model: Hydraulic Super Single TXD 200
Manufacturer: Schramm
Year: 2006
Depth rating (5" drill pipe): 2,500 m (8,200 ft)
Max hook load: 200,000 lb (90,909 kg)
Max top drive load: 200,000 lb
Max wind speed: 93 knots

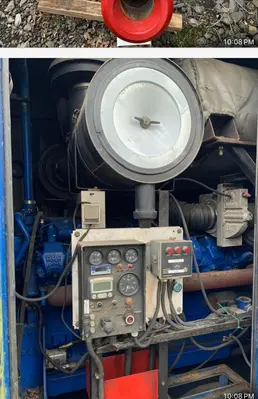

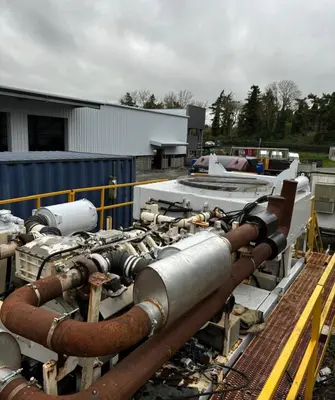

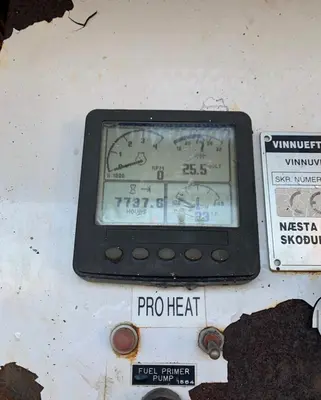

Engine: Detroit Diesel DDC/MTU
Engine: Detroit Diesel DDC/MTU
Power: 760 HP @ 1800 rpm
Auxiliary air: Kaeser ASD 37 (11 bar, 110 cfm)
Auxiliary air: Kaeser ASD 37 (11 bar, 110 cfm)

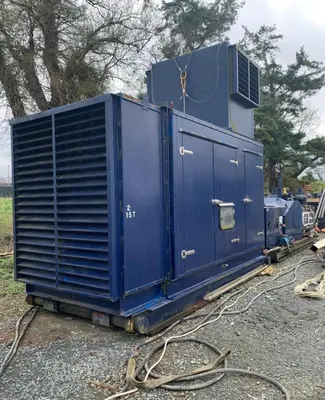

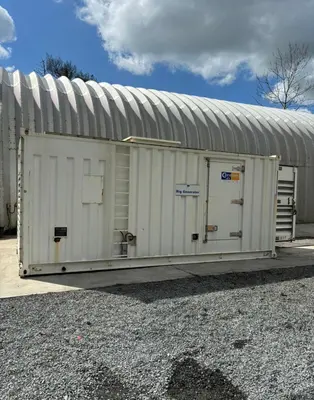

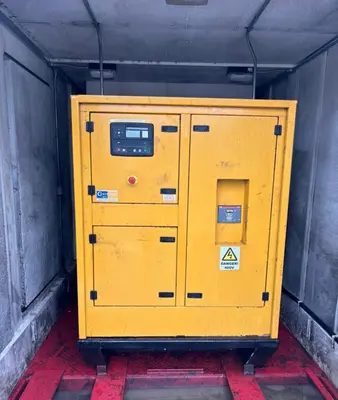

Generator: 550 kVA (400V, 50Hz)

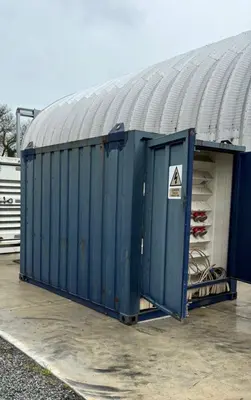

Power distribution: Containerised unit
Power distribution: Containerised unit
Rig tanks: 2 × 110 gal (415 L)
Site tank: 30,000 L bunded tank
Consumption: 130–210 L/hr
Pumps: 3 fixed + 7 variable
Pumps: 3 fixed + 7 variable
Filtration: 7 micron
Capacity: 798 L (210 gal)
Max flow: 58 gpm
Max pressure: 5000 psi
Height: 23.7 m (78 ft)
Top drive travel: 50 ft
Capacity: 200,000 lb
Pulldown: 32,000 lb

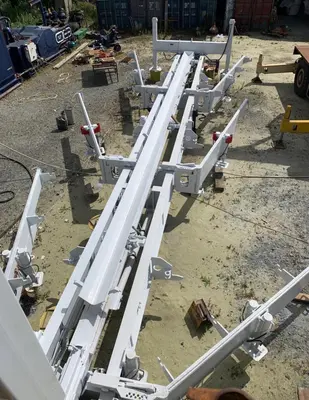

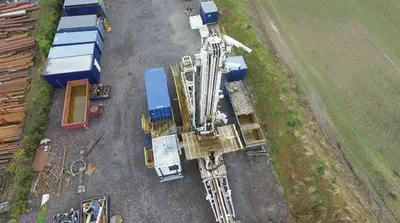

Trailer-mounted with automated pipe handler
Trailer-mounted with automated pipe handler
Size: 16.5 m × 0.6 m × 3 m
Weight: 25 tonnes
Clearance: 3.96 m (13 ft adjustable)
Line: 2 × 27” PD Nylatron
Wire rope: 1½” OD (8×26)
Strength: 128.2 tons/strand
Automated pipe handling
Automated pipe handling
Hoist: 200,000 lb
Hoist speeds:

0–130k lb @ 100 fpm

131–180k lb @ 75 fpm

181–200k lb @ 25 fpm
Hoist speeds:
0–130k lb @ 100 fpm
0–130k lb @ 100 fpm
131–180k lb @ 75 fpm
131–180k lb @ 75 fpm
181–200k lb @ 25 fpm
181–200k lb @ 25 fpm
Pulldown: 32,000 lb @ 200 fpm
Opening: 30” (762 mm)
Slip type: Cavins Model F
Slip type: Cavins Model F
Range: 2”–8” OD
Power: 400,000 lb
Tubular length: 13.11 m (43 ft)
Max diameter: 30”
Drill pipe range: up to 10¾”
Capacity: ~38 joints (4½” pipe)
Capacity: ~38 joints (4½” pipe)
Racks: 4 × (8.5 m × 1.07 m)
Range: 4½”–8”
Clamp force: 47,000 lb
Torque: 53,000 ft-lb
System: Scorpion (mobile)
System: Scorpion (mobile)
Bit subs: 4½”–12¼” (1 unit)
Lifting winch:
Capacity: 5,300 lb
Speed: 151–165 fpm
Survey winch:
Capacity: 3,300 m line
Load: 3,000 lb
Drill collar clamps: 2 units (up to 9⅝”)

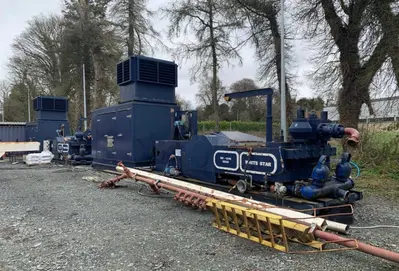

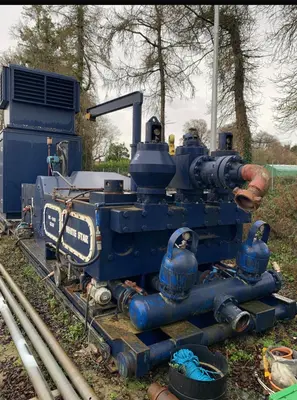

Model: White Star WS 1000 Quadraplex
Model: White Star WS 1000 Quadraplex
Quantity: 2
Output: 1,410 GPM (combined)
Pressure: 5000 psi
Motor: 1050 HP
Size: 4”
Pressure: 5000 psi

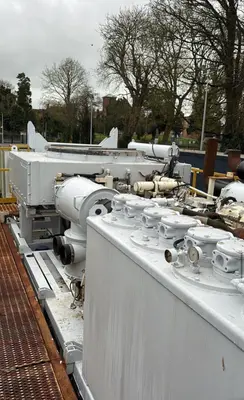

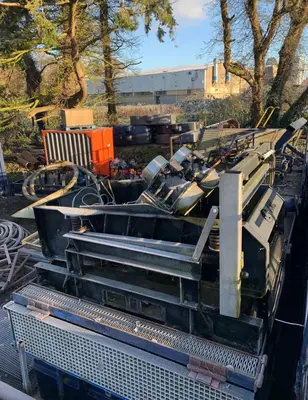

Shale shakers: 2 × Mud Data 803 SD
Capacity: 444 GPM each
Centrifugal pumps: multiple (mix, charge, trip, water)
Centrifugal pumps: multiple (mix, charge, trip, water)
Degasser: Poor boy
Degasser: Poor boy
Agitators: 7 (5 kW each)
Speed: 95 RPM
Total volume: 640 bbl
Shaker: 160 bbl
Shaker: 160 bbl
Settling: 155 bbl
Settling: 155 bbl
Active: 155 bbl
Active: 155 bbl
Pre-mix: 77 bbl
Pre-mix: 77 bbl
Slug: 77 bbl
Slug: 77 bbl
Trip tank: 15 bbl
Trip tank: 15 bbl
Drilling water: 22,000 L
Fire water: 44,000 L
Size: 11”
Pressure: 5000 psi

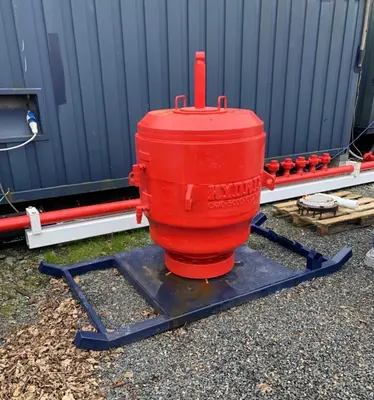

Type: Hydril double ram
Type: Hydril double ram
Size: 11” × 5000 psi
Blind shear: 1 set
Blind shear: 1 set
Pipe rams: 3½” set
Pipe rams: 3½” set
Capacity: 132 gal (12 bottles)
Includes remote panel & test pump
Includes remote panel & test pump

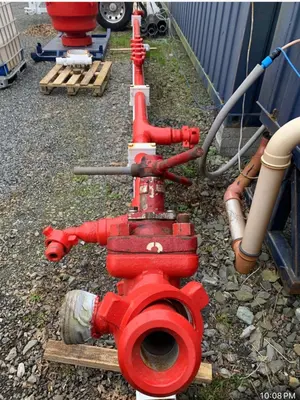

Size: 3 1/8” × 5000 psi
Chokes: 2 manual
Coflexip hoses: 3” × 5000 psi
Diverter spool + 8” outlet + 60 ft pipework
Diverter spool + 8” outlet + 60 ft pipework
Drill Pipe:
3½” S135 NC38
3½” S135 NC38
220 joints (~2,000 m)
220 joints (~2,000 m)
Heavy Weight Drill Pipe:
5” × 4½” IF (6 joints)
5” × 4½” IF (6 joints)
3½” IF (6 joints)
3½” IF (6 joints)
Drill Collars:
6¾” × 4½” IF (8 joints)
6¾” × 4½” IF (8 joints)
4¾” × 3½” IF (12 joints)
4¾” × 3½” IF (12 joints)

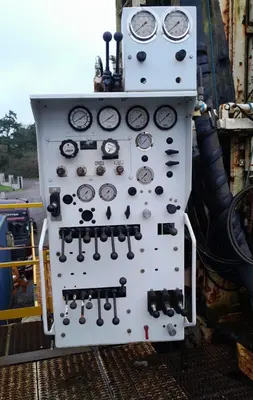

System: Schramm iControl
Monitors:

Weight on bit

RPM & torque

Depth

Pressure (line & compressor)

Temperatures

Engine & rig diagnostics
Monitors:
Weight on bit
Weight on bit
RPM & torque
RPM & torque
Depth
Depth
Pressure (line & compressor)
Pressure (line & compressor)
Temperatures
Temperatures
Engine & rig diagnostics
Engine & rig diagnostics
Air drilling package (not included in day rate)
Air drilling package (not included in day rate)
Crew (day & night shifts)
Crew (day & night shifts)
Potable water storage
Potable water storage
Lighting & power systems
Lighting & power systems
Communication systems
Communication systems
Office & welfare units
Office & welfare units
Forklift
Forklift
2 × 20ft containers (rig + pump spares)
2 × 20ft containers (rig + pump spares)
Fire fighting equipment
Fire fighting equipment
Breathing apparatus
Breathing apparatus
First aid equipment
First aid equipment
Cellar pump (4” electric)
Cellar pump (4” electric)
2 × Wilden 2” air pumps
2 × Wilden 2” air pumps
