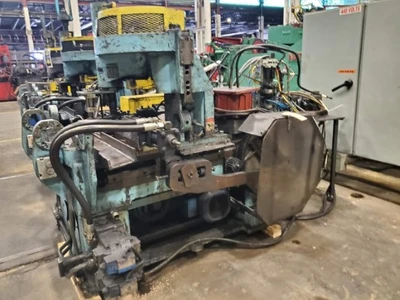

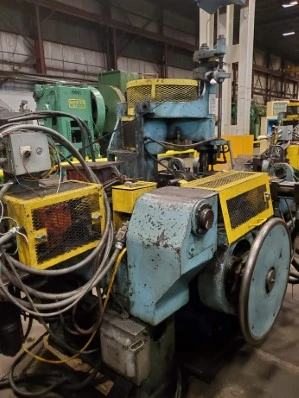

TORRIGNTON #W3002 TORSION COILER
Overview
Specs

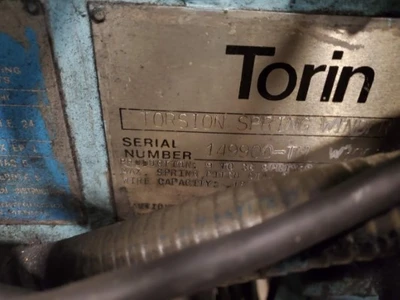

SN- 49900-TM
Drive:-5 HP
No turns- 72
Net weight- 5500 LBS
Floor space- 55" x 76" (1400mm x 1930mm)
Equipped with- 7 ROLL 2 PLANE STRAIGHTENER
Wire diameter- .072 (1.83mm)
Wire feed max- 16.5" (419.1mm)
Rated capacity:
NO TURNS ............. 10
Wire line height- 38.5" (978mm)
Camshaft diameter- 2.187" (55.6mm)
Overall dimensions- 94" L x 58" W x 73" H
Power requirements- 220/440 V, 50/60 Hz 3 PHASE
Springs per minute- 9 TO 36
Maximum wire diameter- .187" (4.75mm)
Minimum wire diameter- .072" (1.83mm)
Vertical slide travel- 1.312" (33.5mm)
Maximum spindle travel- 5.500" (139.7mm)
Horizontal slide travel- 1.500" (38.1mm)
