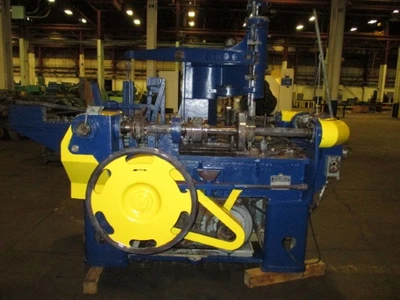

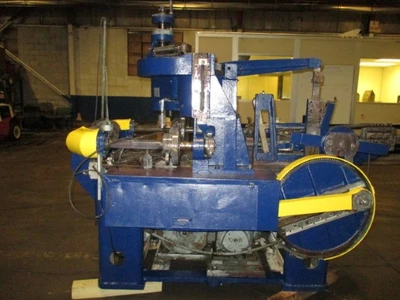

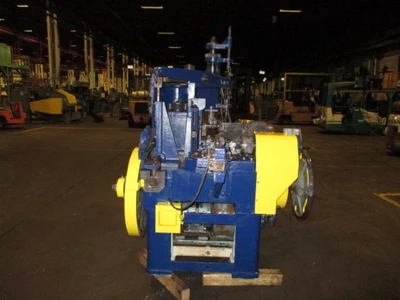

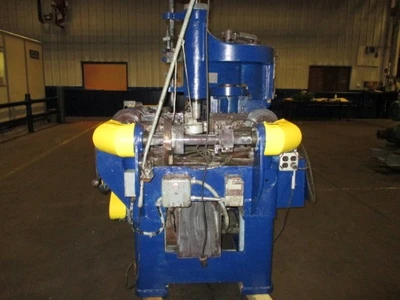

TORRINGTON MODEL #W-3002 WIRE SPRING TORSION WINDER
Overview
Specs
MAXIMUM WIRE DIAMETER ................ .187" (4.75mm)
MINIMUM WIRE DIAMETER ................ .072" (1.83mm)
RATED CAPACITY: NO TURNS ............. 10
WIRE DIAMETER ........ .187" (4.75mm)
NO TURNS ............. 25
WIRE DIAMETER ........ .162" (4.11mm)
NO TURNS ............. 38
WIRE DIAMETER ........ .120" (3.05mm)
NO TURNS ............. 57
WIRE DIAMETER ........ .080" (2.03mm)
NO TURNS ............. 72
WIRE DIAMETER ........ .072 (1.83mm)
MAXIMUM SPINDLE TRAVEL ............... 5.500" (139.7mm)
SPRINGS PER MINUTE ................... 9 TO 36
WIRE FEED MAX ........................ 16.5" (419.1mm)
HORIZONTAL SLIDE TRAVEL .............. 1.500" (38.1mm)
VERTICAL SLIDE TRAVEL ................ 1.312" (33.5mm)
CAMSHAFT DIAMETER .................... 2.187" (55.6mm)
WIRE LINE HEIGHT ..................... 38.5" (978mm)
DRIVE ................................ 5 HP
POWER REQUIREMENTS ................... 220/440 V, 50/60 Hz 3 PHASE
NET WEIGHT ........................... 5500 LBS
FLOOR SPACE .......................... 55" x 76" (1400mm x 1930mm)
EQUIPPED WITH: 7 ROLL 2 PLANE STRAIGHTENER
WITH MOTOR, CONTROLS AND VARIABLE SPEED
OVERALL DIMENSIONS: 94" L x 58" W x 73" H
