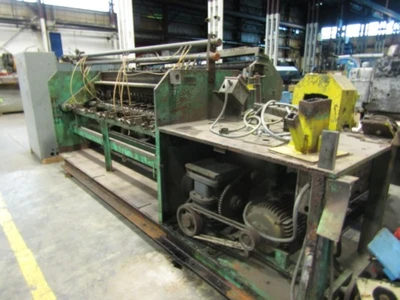

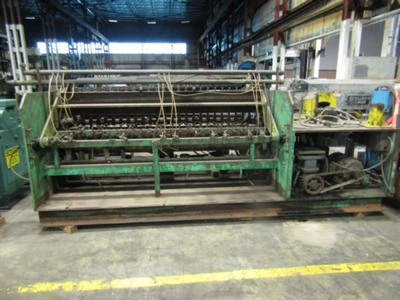

ATCO 96" WIRE MESH MACHINE
Overview
Specs
SPECIFICATIONS:
CAPACITY: 6 GA - .264" WIRE
GRID: 4x4
4" MIN LINE WIRE SPACING
12" MAX LINE WIRE SPACING
4" MIN CROSS WIRE SPACING
12" MAX CROSS WIRE SPACING
60" TO 96" WIDTH
PINCH ROLL FEED 5 DIE STR. ARBOR
8' x 20' SHEET OUTPUT
LINE WIRE SPACING AT 4" AND 12" MULTIPLES
CROSS WIRE SPACING AT 4", 6", 8" 12" MULTIPLES
EQUIPPED WITH:
8' x 10GA CINCINNATI #10 SHEAR - MECH CLUTCH
S/N 31K37
OVERALL DIMENSIONS: 11' x 5' x 6' H
ONLY 7 WELDING TRANSFORMERS
7 WIRE GUIDES
NO RUN OUT TABLE
MOTOR DRIVE: 15 HP, 230/460/3 MAIN DRIVE
7-1/2 HP, 230/460/60/3 STR. ARBOR
3.7KW, 380-480/50/3 CINCINNATI SHEAR MOTOR
OVERALL DIMENSIONS: 16' L x 8' W x 6' H
WEIGHT: 15,000#
