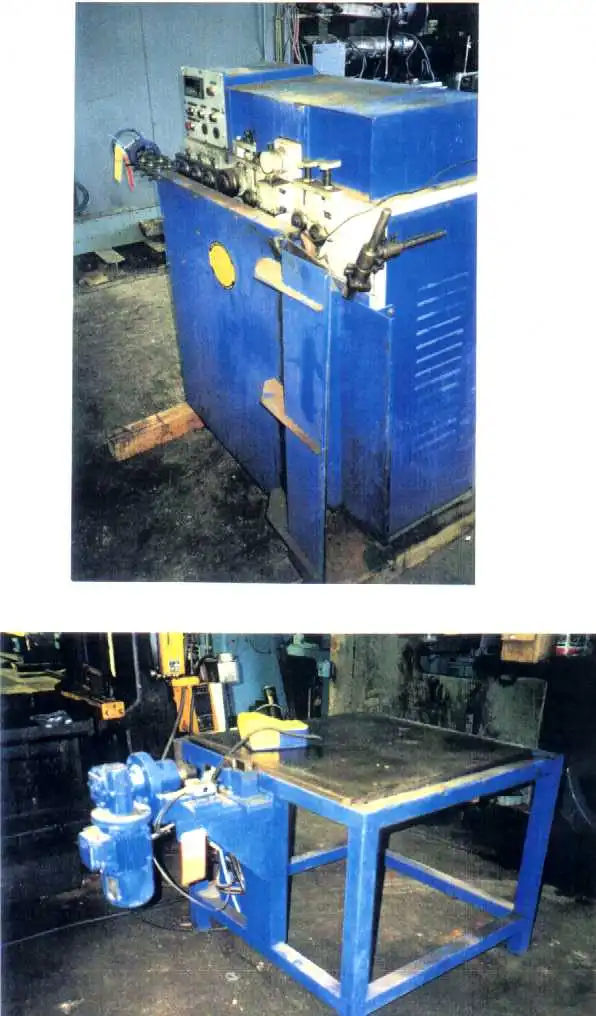

ATLAS WIRE RING COILER

COILER:

CAPACITY:........ 3/16" DIA (APPROX)

RING SIZE:.............. MIN 6" DIA

MAX 38" DIA

PASS LINE .............. 43"

EQUIPPED WITH:

- NON-POWERED UNCOILER

- 12 ROLL -2 PLANE STRAIGHTENER

- PINCH FEED ROLLS

- LENGTH COUNTER ROLLS

- CUTOFF

- (3) ROLL WIRE BENDING HEAD

- Q.E.M. MO#EM560.31 ELECTRONIC COUNTER

- RING GUIDES

- MANUAL ADJUST ON ALL ROLLS

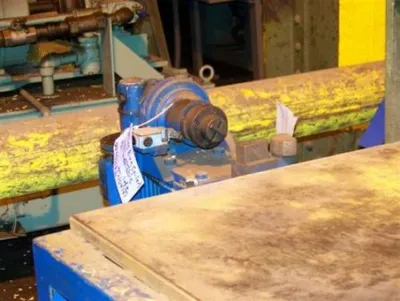

WIRE TWISTER:

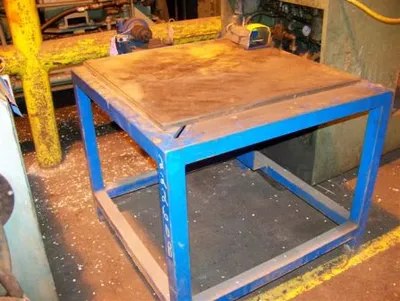

WIRE TABLE ............ 39" X 39" TOP

MOTOR ................. 1/2 HP, 220/440/380/420 1360RPM

20% GEAR RATIO

TWISTER SET UP WITH FOOT PEDAL FOR CONTROL ON HEAD ROTATION

EQUIPPED WITH:

- AIR OPERATED CLAWING HEAD

- FOOT TRIP

- PNEUMATIC PRESSURE REGULATOR

- NON ADJUSTABLE CHUCK

OVERALL DIMENSIONS:

COILER ................... 6'1" L-R X 3' F-B X 5' HIGH

WIRE TWISTER ............. 5'4" L-R X 3'4" F-B X 5'2" HIGH

WITH 1/2 HP 220/440/380/420V, 50 HZ, 1360 RPM)

COIL PAYOFF .............. 3'6" L-R X 7'6" F-B X 5'7" HIGH

(ARM DIM, - 5.5" DIA. X 6'4" LG - 45" FL00R TO

ARM CENTER LINE)
