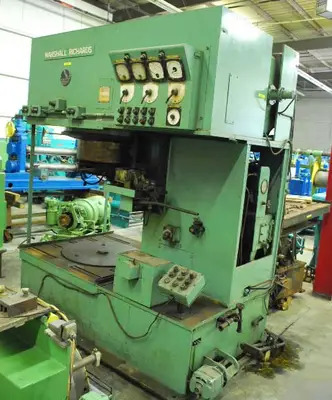

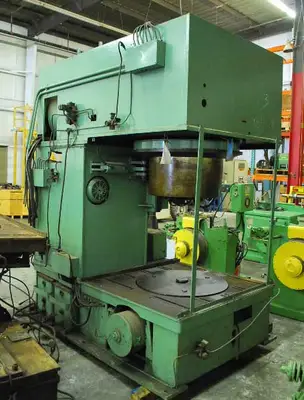

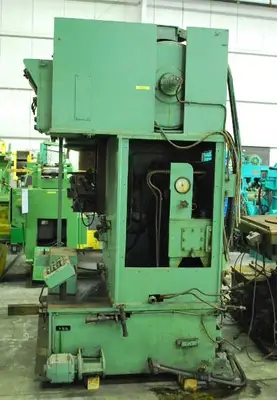

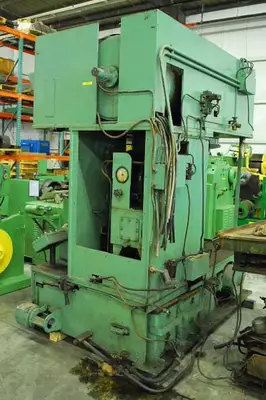

24" (610mm) x 2000# (907 KG) MARSHALL RICHARDS TUBE SPINNER BLOCK (8063)
Overview
Specs
MANUFACTURER: MARSHALL RICHARDS MACHINE LTD. (U.K.)
TYPE: VERTICAL CONTINUOUS SPINNER TYPE TUBE DRAWING BLOCK
CAPACITY:
MAXIMUM ENTRY SIZE (COPPER TUBE): 7/16" (11mm) O.D.
MINIMUM EXIT FINISH SIZE: 0.080" (1.8mm) O.D. x 0.0157" (0.4mm) WALL
THICKNESS
MAXIMUM COIL WEIGHT: 165 LBS. (75 KG)
SPEED RANGE: 0-2000 FPM (0-610mm/min.)
PULLING FORCE:
2000 LBS (900 KG) @ 0-500 FPM (0-150m/min.)
500 LBS (227KG) @ 500-2000 FPM (150-610m/min.)
MACHINE CONSISTS OF:

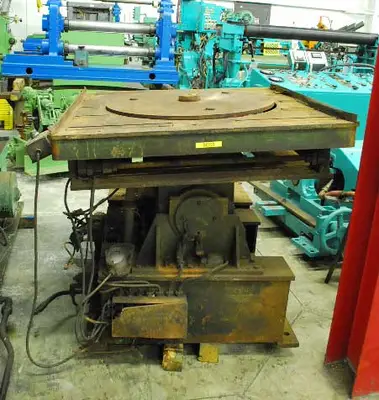

PAYOFF TABLE

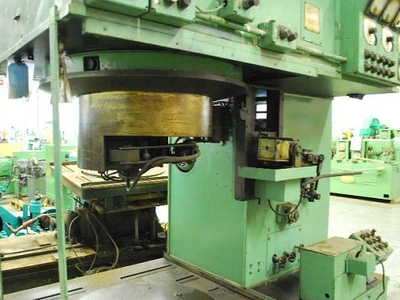

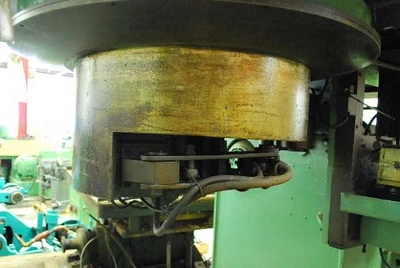

DRAWING BLOCK

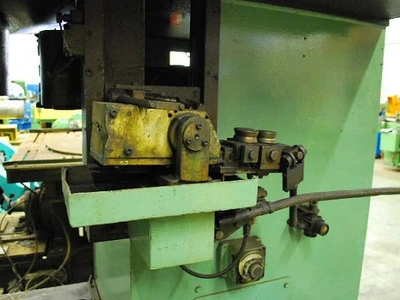

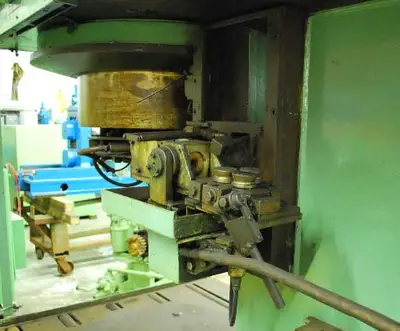

DIE BOX (SUITABLE FOR 1 OR 2 DIES IN TANDEM) ROTATING TAKE-UP TABLE FOR
RECEIVING BASKETS. NOT A CARROUSEL SYSTEM.
BUYER TO SUPPLY ENTRY AND EXIT CONVEYORS TO REMOVE AND LOAD BASKETS
ELECTRICS:
BLOCK, PAYOFF AND TAKE-UP STAND ARE EACH POWERED BY SEPARATE D.C. MOTORS.
BLOCK WAS ORIGINALLY SUPPLIED WITH A MAWDSLEY MOTOR GENERATOR SET WITH THE
FOLLOWING SPECIFICATIONS. BUYER TO SUPPLY NEW SCR ELECTRICAL DRIVE PACKAGE.
45 B.H.P., 3 PH., 50 HZ, 380 VOLT, 1460 RPM OUTPUT 230 VOLT, D.C., 23 KW
MACHINE HAS BEEN PLACED IN HEATED AND PROTECTED STORAGE.
