USED 2017 BTB TRO 8S 14U ISO CNEL
Specs

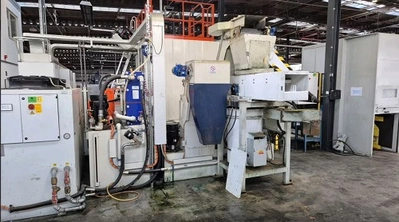

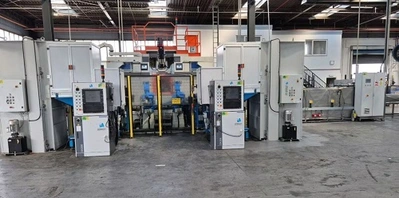

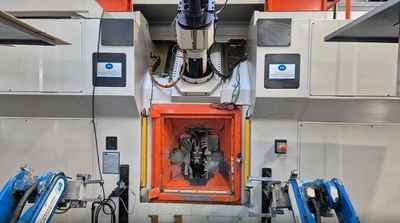

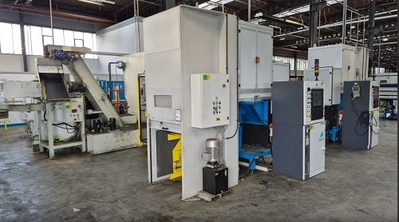

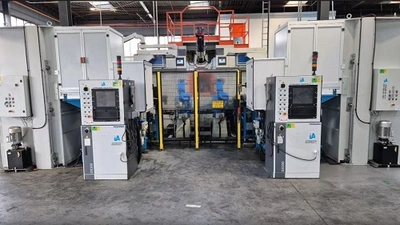

BTB ROTARY TRANSFER MACHINE - MDL. TRO 8S 14U ISO CNEL - NEW 2017
MANUFACTURER - BTB
COUNTRY OF ORIGINE - ITALY
STATUS - INSTALLED
TYPE - ROTARY TRANSFER MACHINE
YEAR - 2017
MODEL - TRO 8S 14U ISO CNEL
WEIGHT - 23,000 KG
NUMBER OF STATIONS - 8 MACHINING STATIONS
UNITS - 14 MACHINING UNITS
CNC CONTROL - FANUC
MACHINE CAPABILITIES - SIMULTANEOUS MULTI-AXIS OPERATIONS INCLUDING DRILLING,
MILLING, TAPPING AND TURNING
WORKPIECE HANDLING - AUTOMATED LOADING AND UNLOADING SYSTEMS
COOLANT SYSTEM - INTEGRATED HIGH-PRESSURE COOLLANT DELIVERY
SPINDLE TAPER SYSTEM - ISO 40 TOOL TAPER
CNEL - EUROPEAN NOISE EMISSION STANDARDS
DIAGNOSTIC SYSTEM EQUIPPED
LIFTING/HANDLING UNIT - CASTELLETTO UZZONE ERI-2000 LIFTING UNIT - 2000 KG
CAPACITY, 2.2 KW MOTOR

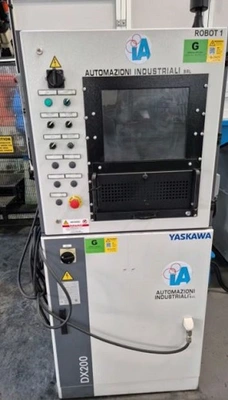

ROBOTS - AUTOAZIONE INDUSTRIALI AUTOMATION
TYPE - R.C.S.T./C.VIS.

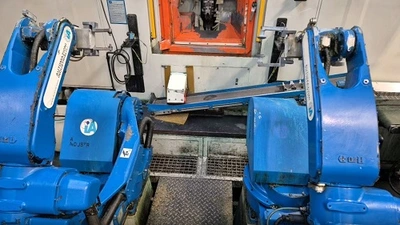

ROBOTS - DUAL MH24 UNITS FROM YASKAWA MOTOMAN
ROBOT PAYLOAD - 24 KG
REACH - 1717MM
REPEATABILITY - 0.08MM (+/-)
AXIES - 6 AXIS ARTICULATED ARM
WEIGHT - APPROX 540 KG PER ROBOT
CONTROL - DX200 OR NX100 DEPENDING ON CONFIGURATION
MAXIMUM SPEED
J1 (S-axis): 170/sec
J2 (L-axis): 170/sec
J3 (U-axis): 175/sec
