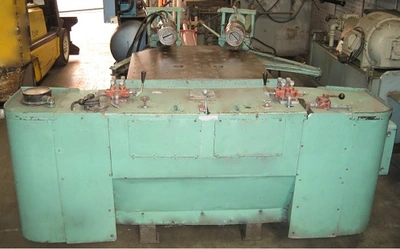

NAS PLANT DIVISION STRETCH WRAP FORMING PRESS
Overview
Specs
SPECIFICATIONS
FORMING TONNAGE 11
DISTANCE BETWEEN JAWS:
Maximum Length of Part with Tension Cylinders
fully retracted136" (3,454.4 mm)
Minimum Length of Part with Tension Cylinders
fully extended 10" (254 mm)
TENSION CYLINDER STROKE each Max.10? (254 mm)
Currently has 3" long spacer to reduce stoke to 7" (177.6 mm)
TENSION CYLINDER ROTATION +/- 25 Degrees
ARMS: SWING Simultaneous Arm Motion
Arm swings 10 Forward to 90Back.
WRAPPING SPEED RANGE Adjustable
DIE TABLE:
Working Surface, W x D 36" x 35"
(908.88 x 908.05 mm)
(75-pre drilled & threaded) 5/8" (15.875 mm)
Height Table To Floor 39" (974.725 mm)
MOTOR DRIVE: Wired 440 volts, 3 Phase
Hydraulic Pump10 hp. 220/440 volts
CONTROLS: Hand Push Buttons, with Start and Stop Buttons
EQUIPPED WITH:
1- set 3" (76.2mm) Jaws with Pneumatic Clamping.

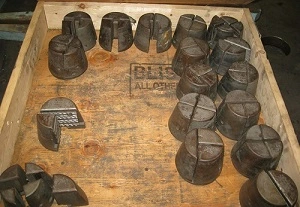

17- Miscellaneous sets of Gripper Jaws
7- single Gripper Jaws
COMPLETE FACTORY SAFETY GUARDS
Dimensions 91" (2311.4mm) w x 135"(3429mm) FB 47-1/2" (1206.5mm) Ht
(Opened Width183" (4648.2mm)
Approx. Wt. 7000 lbs.
