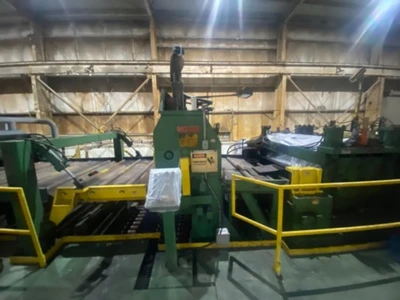

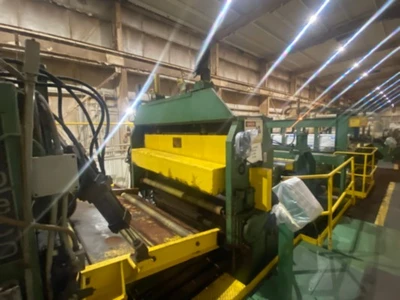

72" x .500" BUTECH HIGH-SPEED HYDRAULIC SHEAR WITH SELF-CONTAINED PUMP

Manufacturer: Butech

Line Direction: Right to Left

Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)

Coil Width: 72" (1829 mm) Max.

Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.

Shear Blade Configuration: Single Rake Design

The high-speed hydraulic shear can be utilized as a cut-to-length line main

shear or as a crop shear

Single rake upper ram is positioned by hydraulic cylinders and is equalized by

rack and pinion

"Auto Gap Control" mechanism automatically sets knife clearance each time a

cut is made

Hydraulic power is supplied to the shear by a dedicated, self-contained

pumping unit
