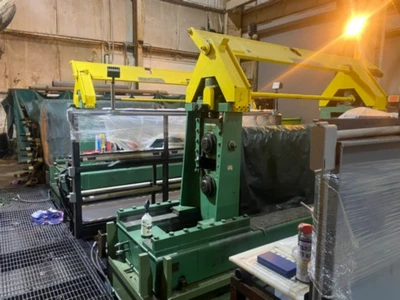

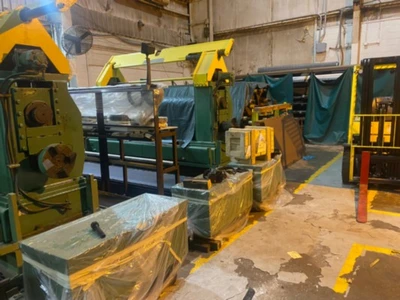

72" x .500" TWO (2) PRO-ECO SLITTER HEADS WITH PINCH ROLLS, SIDE GUIDES & FEED-

Manufacturer: Pro-Eco

Line Direction: Right to Left

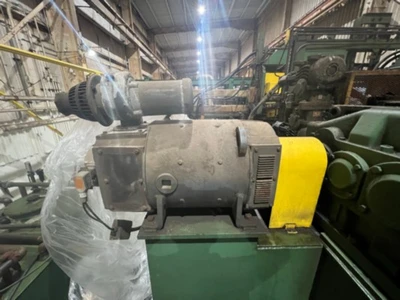

Slitter Feed-Up Drive: 100 HP (74 Kw) DC, geared in at 100 FPM (30 MPM)

Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)

Coil Width: 72" (1829 mm) Max.

Strip Thickness: .500" (12.70 mm) Max., .

054" (1.37 mm) Min.

Slitter Arbor Diameter: 10.000" (254.00 mm)

Slitter Knife Diameter: 16.000" (406.40 mm) Max.

Number of Slitter Heads: Two (2) Crane Lift-Off Heads Included

The slitter heads cut material into desired multiple widths

Entry pinch rolls assist feeding material into the slitter

Side guides assist guiding material into the slitter

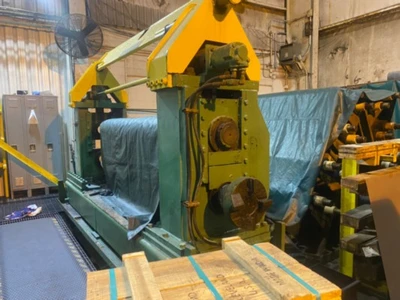

Slitter heads feature solid alloy steel arbors riding in precision bearings

Bearings are mounted in heavy-duty housings secured to removeable bases

Removeable bases are locked in place with hydraulic cylinders

Top arbors are adjusted for penetration by cross-coupled, anti-backlash screw

jacks

Mechanical readouts display top arbor position

Outboard housings are opened and closed by lead screws driven by hydraulic

gearmotors

Slitter feed-up motor and gearbox are included

One (1) lot of slitter tooling (knives, spacers and rubbers) is included.
