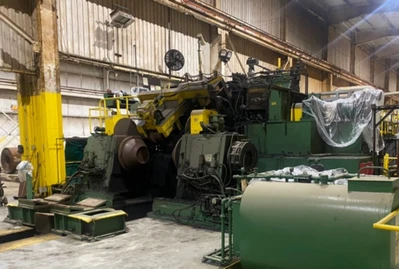

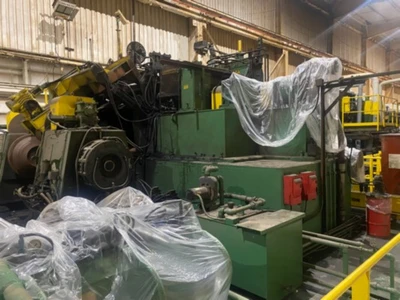

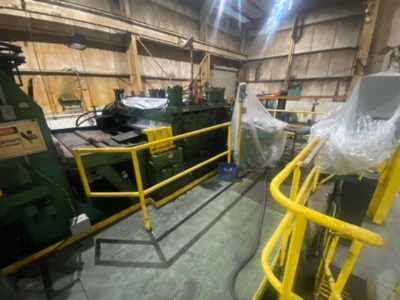

72" x .500" PRO-ECO HEAVY GAUGE ENTRY UNIT W/ HOLD-DOWN ROLL, PEELER, PINCH
Specs
Manufacturer: Pro-Eco
Line Direction: Right to Left
Flattener Drive: 150 HP (110 Kw) DC
Line Speed: 300 FPM (91 MPM) Max.
Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)
Coil Width: 72" (1829 mm) Max.
Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.
The heavy gauge entry unit feeds material, removes coil set, and loosens scale
on hot rolled material
Pivoting hold-down roll is positioned by hydraulic cylinder and driven by
hydraulic gearmotor
Pivoting and telescoping peeler is positioned by hydraulic cylinders
Pinch rolls are clamped by hydraulic cylinders and driven by the main
flattener drive
Flattener penetration is positioned by cross-coupled screw jacks
Flattener motor and gearbox are included.
